BEST SELLER

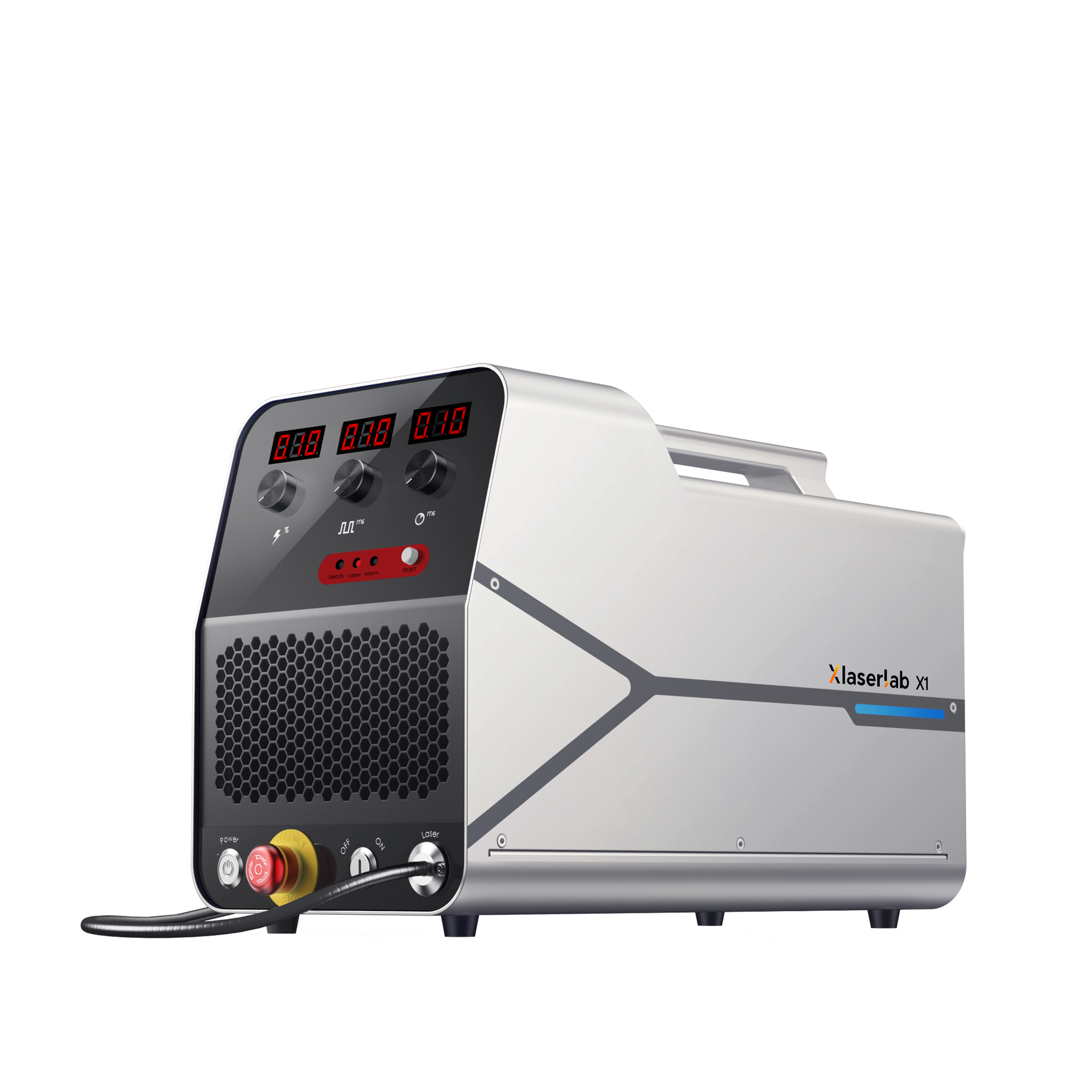

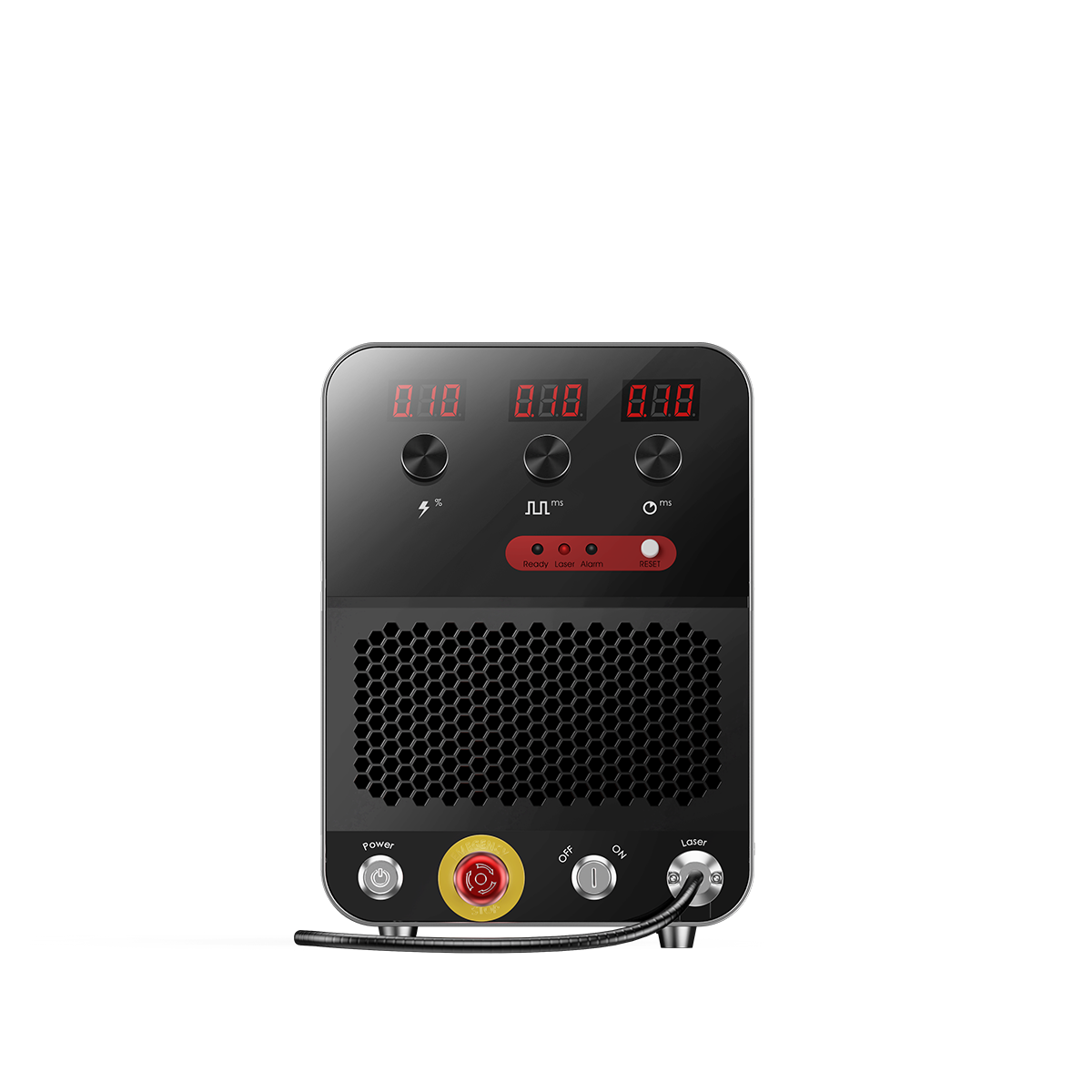

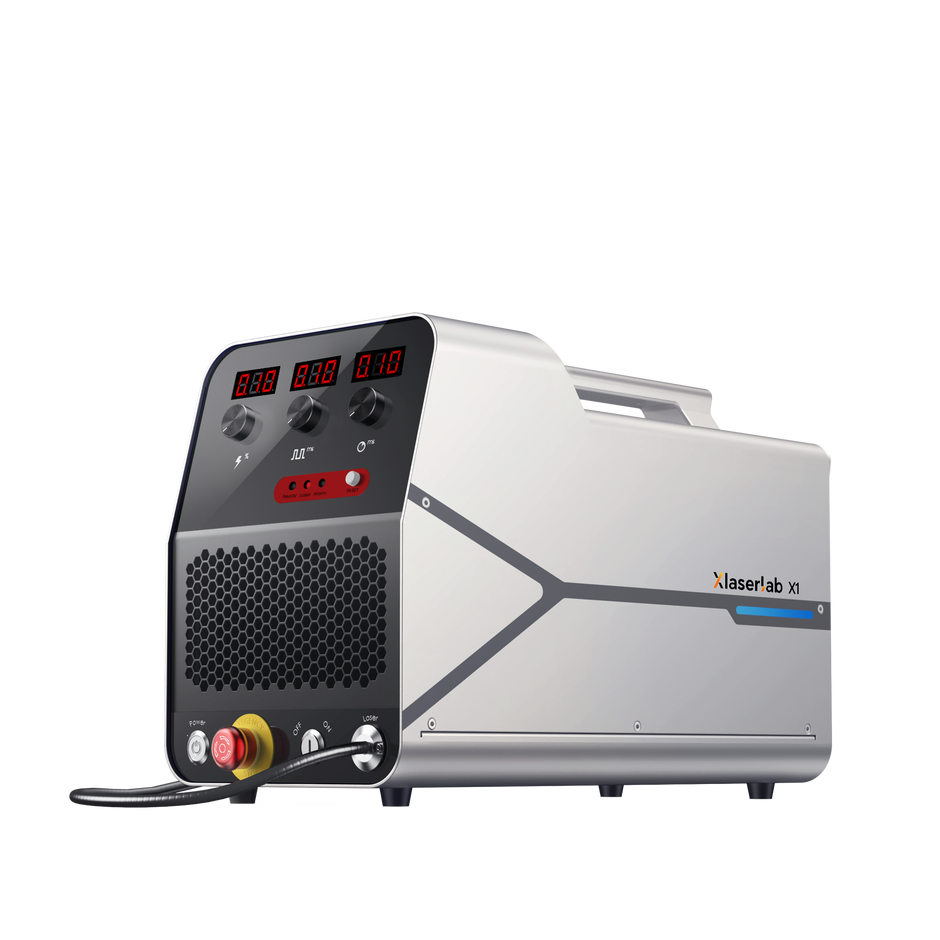

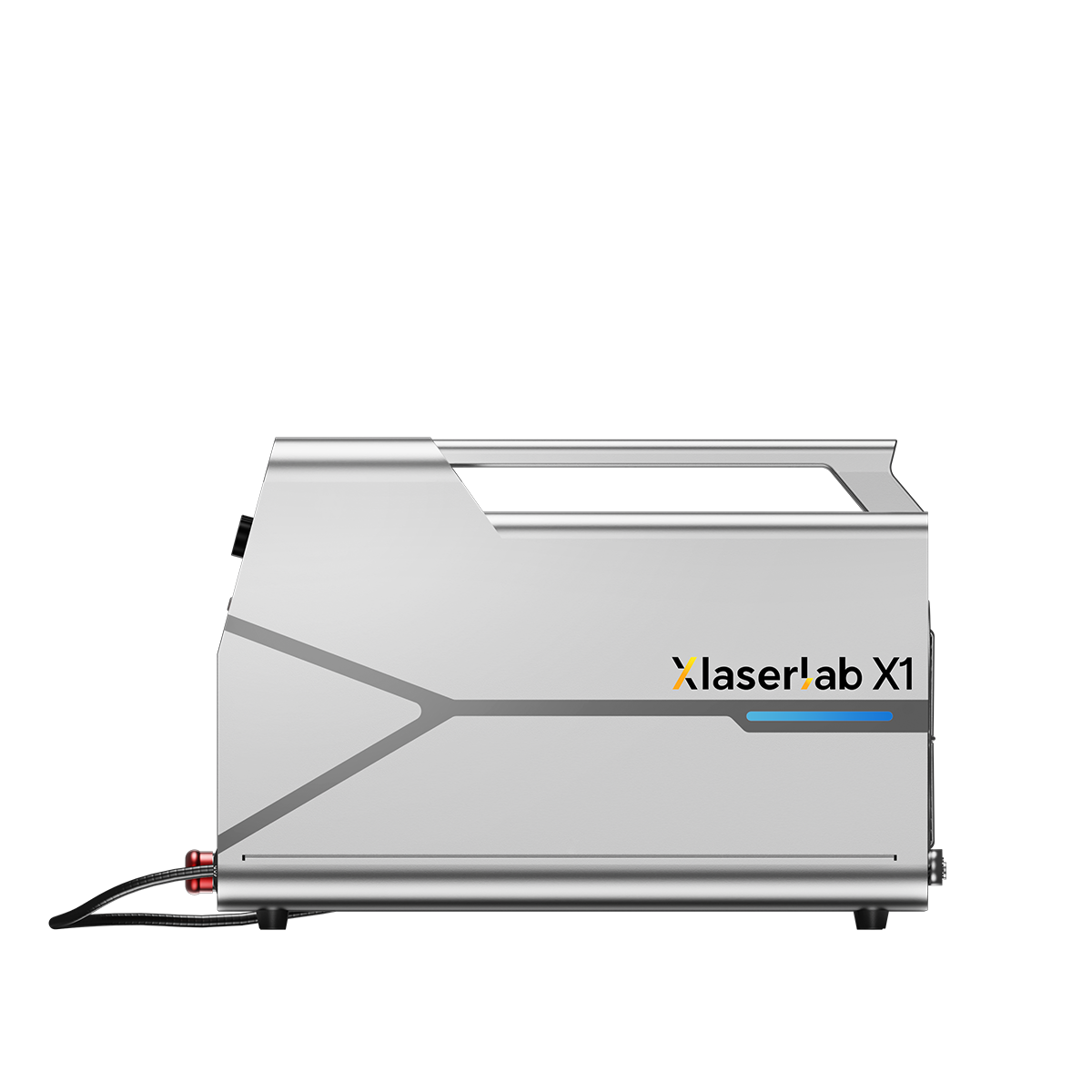

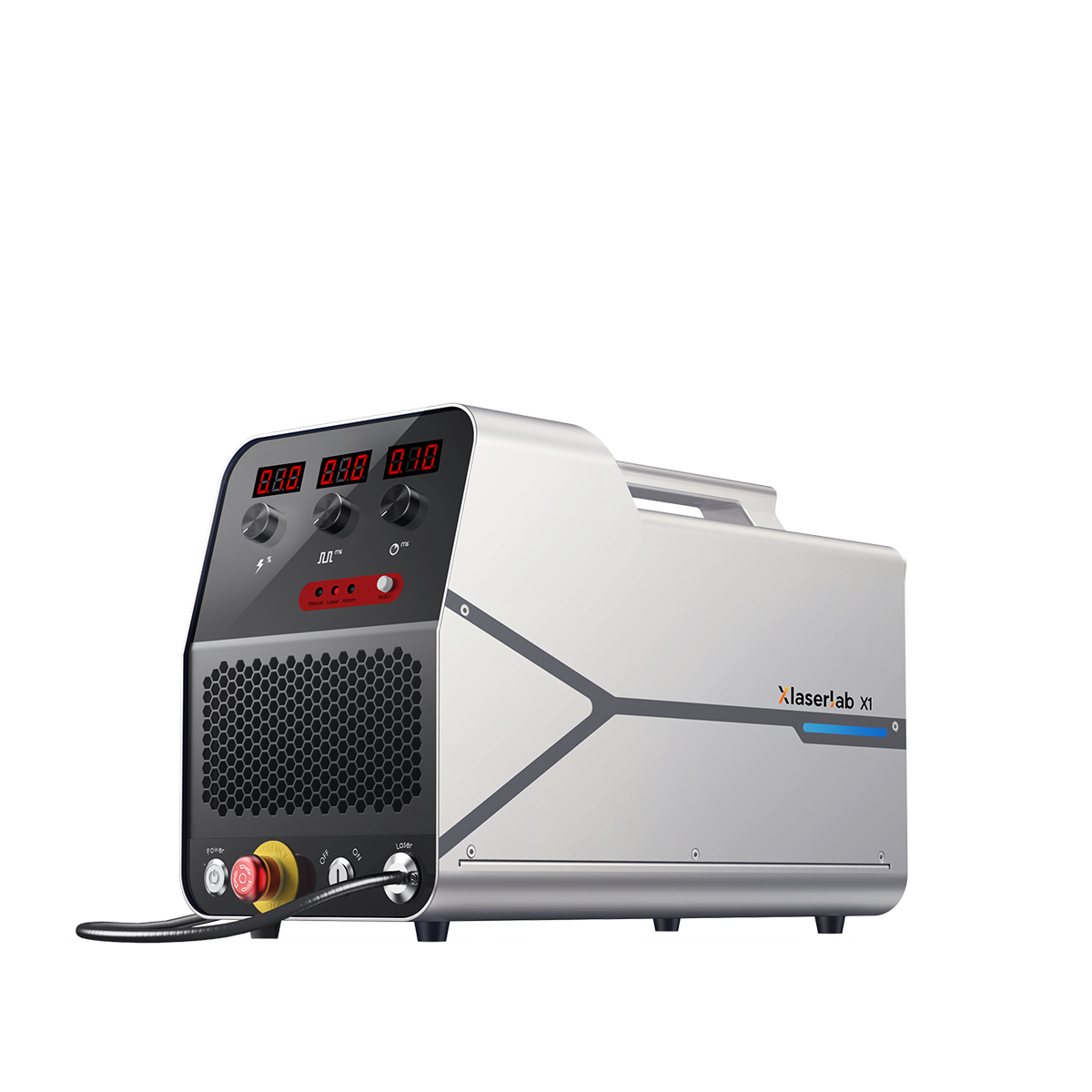

X1 Handheld Laser Welder
- Handheld laser welder for thin metal – Ideal for stainless steel and carbon steel sheet, small brackets, frames and repairs.
- Precise control with laser welding pen – Ergonomic laser welding pen gives you stable, clean welds with a small heat-affected zone.
- Lightweight & portable – Only 13 kg, easy to move between benches, home garages and small workshops.
- Beginner-friendly setup – Simple controls and presets help new users start welding quickly, without complex TIG/MIG settings.
- Cleaner, safer welding – Less spatter and fumes than traditional welding, with built-in protections and laser safety goggles included.
Sale price
$3,699.00
-$0.00
Regular price
$3,699.00
Regular price
$3,699.00
Unit price
per
Tax Exemption Application
New User? Get More Discounts
See What's Included
![Included Items]()
×
See What's Included
Increments of 1
Minimum of 1
Maximum of

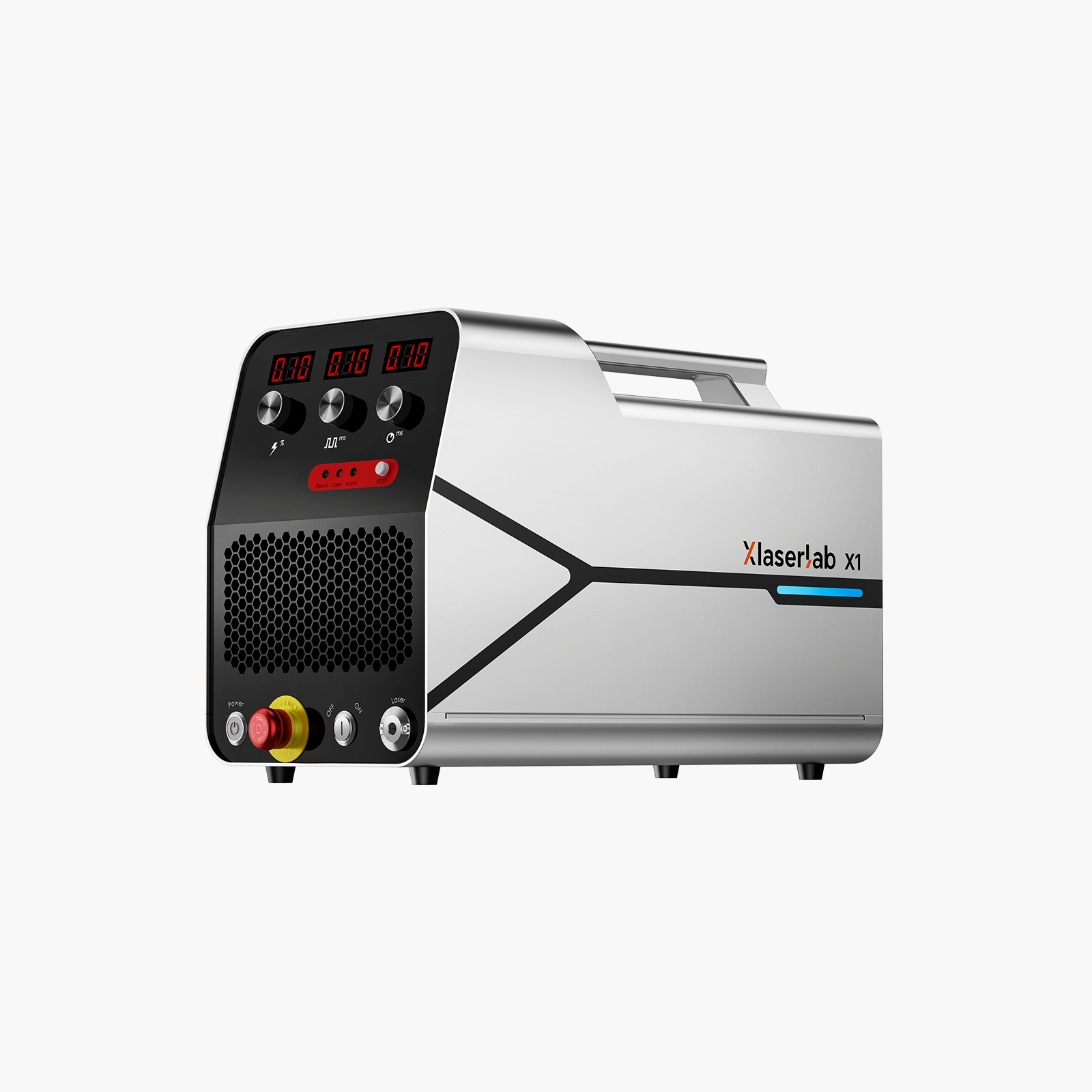

X1 Handheld Laser Welder
Sale price
$3,699.00
Regular price
$3,699.00
Regular price
$3,699.00
Unit price
per
Free Shipping on Main Machine
30-Day Free Returns
1-Year Warranty
Fast Online Support
Pay with Ease
Notified by email when this product becomes available

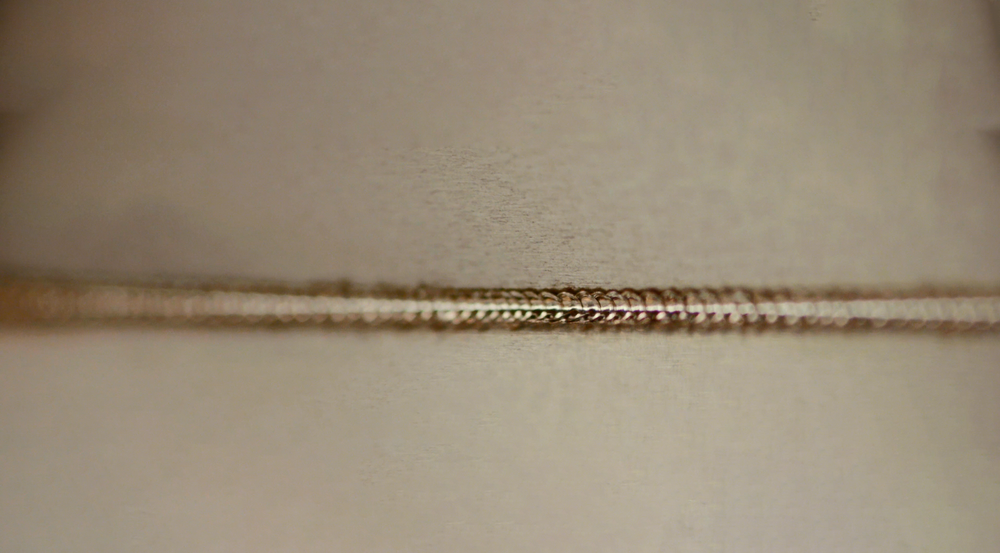

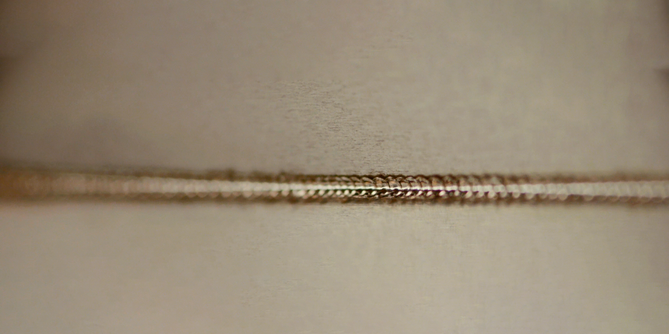

Weld seam details
460W diode laser delivers stable, controlled energy at 976 nm. With a minimum pulse width of 1 ms and single-pulse energy down to 1.1 J, you can fine-tune every weld with exceptional precision.

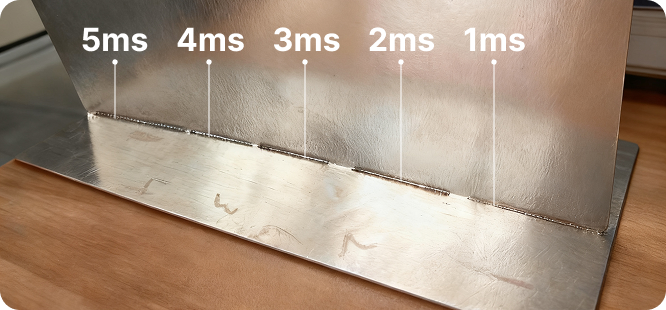

Welding effect drawing of 1-5 ms
The result?
Cleaner seams, smaller heat-affected zones, and flawless detail — even on thin materials.
Built for Real-World Metalwork
From furniture frames to display signs, tools to custom parts — the X1 is made for the jobs that matter most.
01
Furniture Making
Create or repair sleek steel frames with invisible seams.
02
Workshop Repairs
Fix parts fast with clean welds and no rework.
03

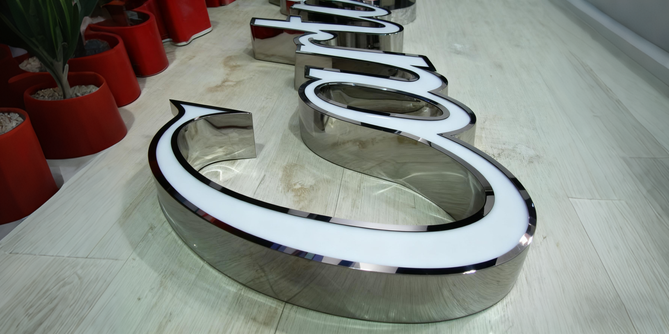

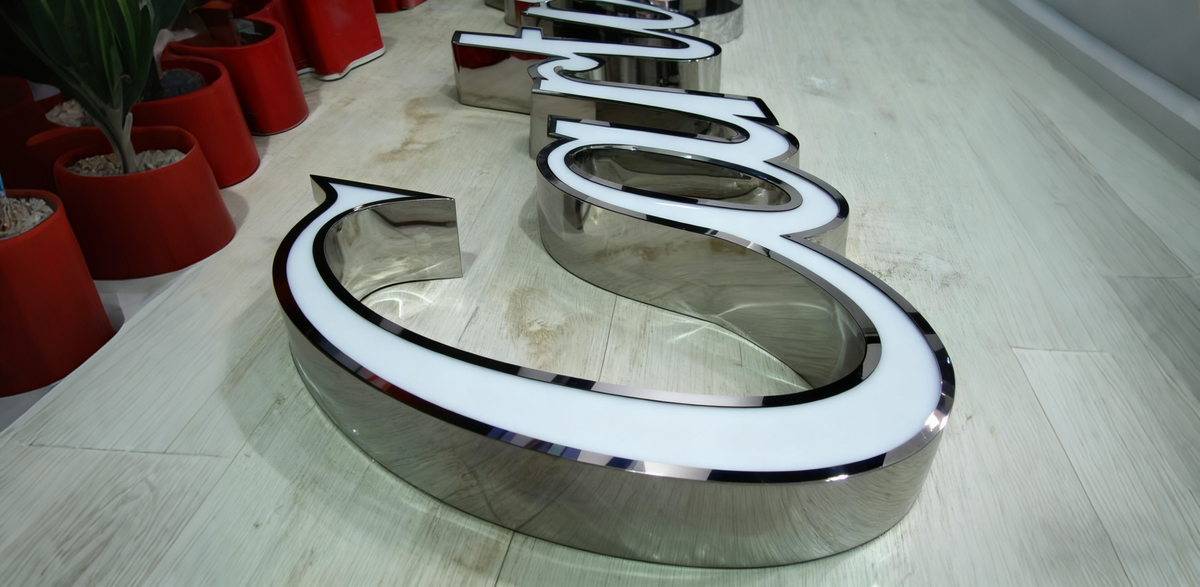

Sign & Display Work
Perfect seams on galvanized and brass materials.
04
Furniture Making
Create or repair sleek steel frames with invisible seams.
Built for Real-World Metalwork
Engineered for safe, smooth operation.

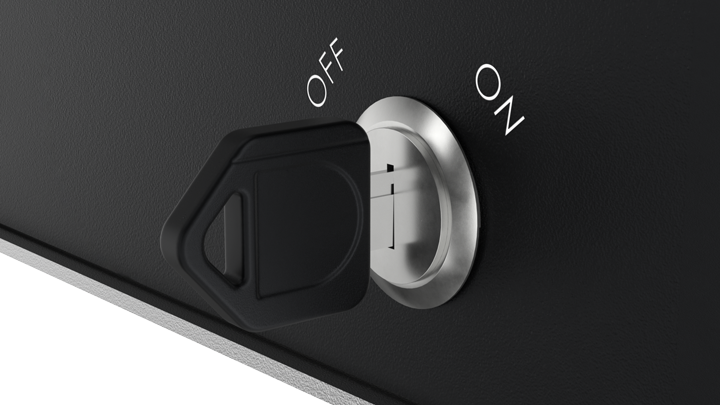

Key lock system
Locks the welding machine's startup function to prevent non-operators or accidental touches from triggering welding operations.

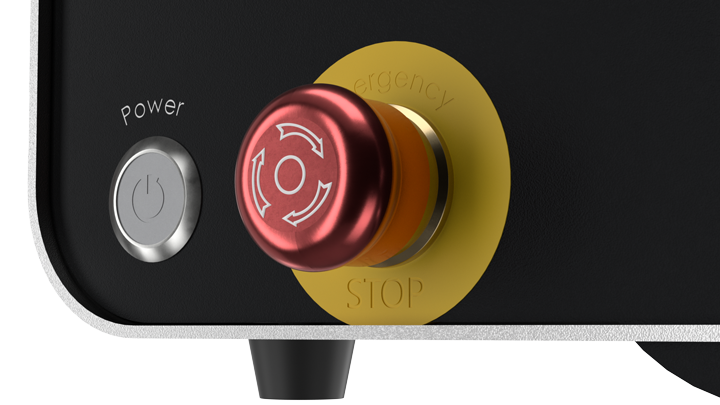

Emergency stop button
Trigger with one click in emergency situations to immediately cut off the welding machine's power supply or welding circuit.

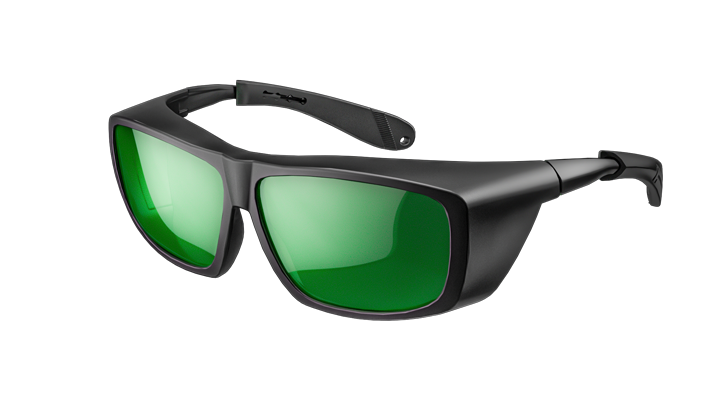

Protective eyewear
Filters strong light, ultraviolet rays and infrared rays generated during welding to avoid burns to eye tissues.

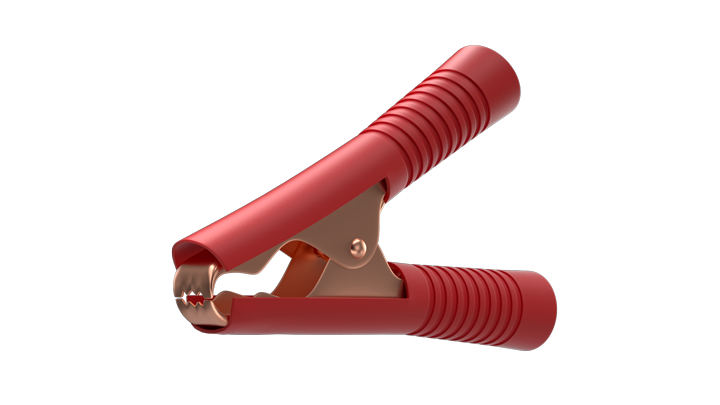

Grounding operate confidently in any workshop
Firmly connects the ground wire to the workpiece/grounding body, forming a complete electrical circuit
Product Tech Specs
Model
X1
Laser Power
460W
Laser Type
Diode Laser
Processing Mode
Welding
Welding Mode
Pulsed Welding / Spot Welding
Supported Materials
Stainless steel, carbon steel, brass, etc
Processing Thickness
0.2-2mm
Wavelengths
976+10nm
Photoelectric Conversion Rate
50%
Recommended Gases
Nitrogen / Argon / Air
Cooling System
Air-cooling
Safety Certification
Class 4 Laser Safety
Rated Power
1200w
Input Voltage
220V
Full-load Current
<12A
Product Storage Temperature
-20℃~85℃
Product Operating Ambient Temperature
-20-C~40-C
Machine Dimensions
390 x 192.5 x 269.5 mm
Machine Weight
13kg
Cable Length
2m

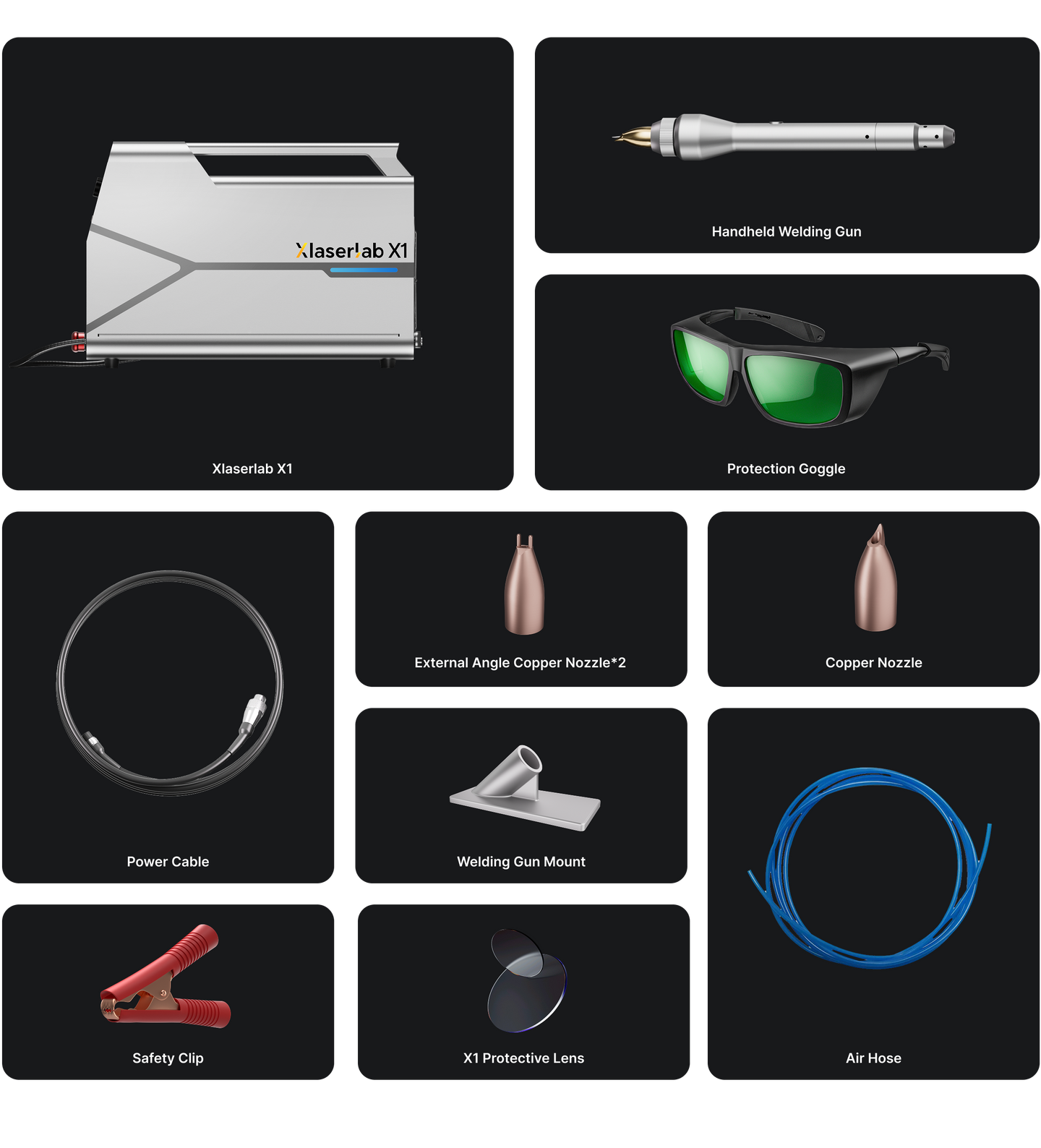

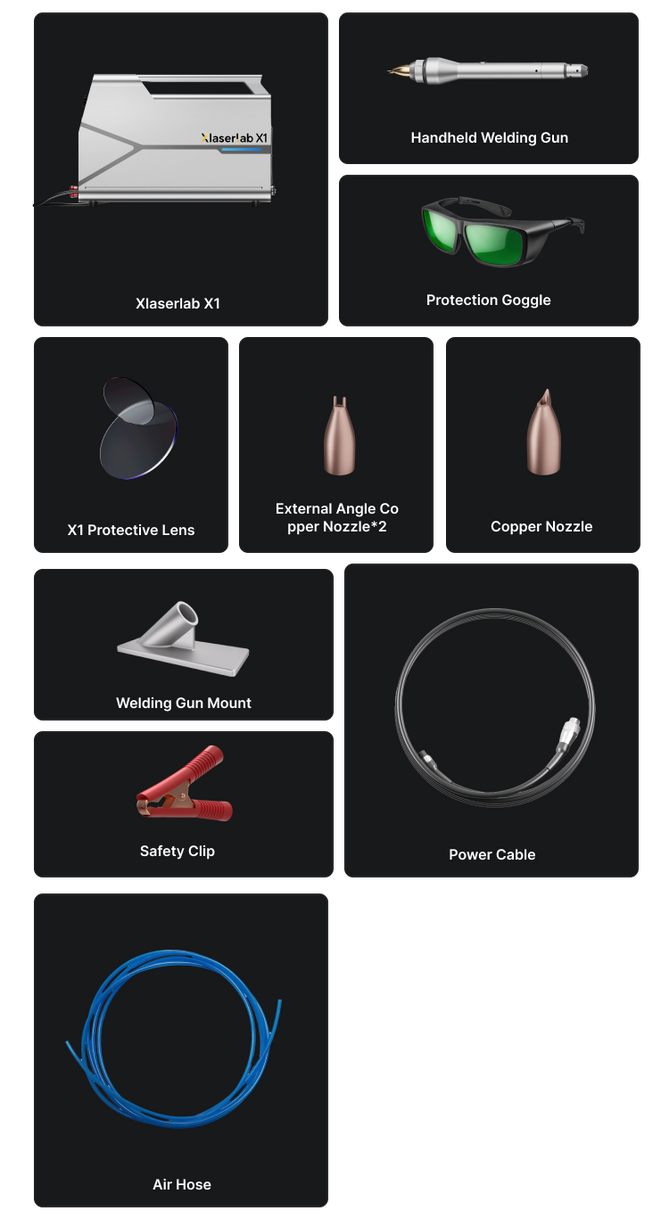

What In the Box
Warranty & Support
FAQs
What voltage does the X1 support?
The X1 operates exclusively on a stable 220V power supply. It does not support 110V input directly. For regions that only provide 110V, we strongly recommend using a high-capacity industrial step-up transformer with voltage stabilization to ensure consistent output and protect internal laser components. Our company does not sell transformers.
Do I need shielding gas when using the X1?
Yes. The X1 requires shielding gas before laser emission is enabled. Shielding gas is mandatory for all welding operations to ensure weld quality, reduce oxidation, and protect the molten pool. The machine will not activate without a connected gas source.
What types of shielding gas can I use with the X1?
The X1 supports the following gases:
Argon (Ar) — recommended for best weld appearance
Nitrogen (N₂) — suitable for general welding
Available air separator / optional air separator
How can I ensure safe operation?
The X1 is built with multiple safety protections, including: Safety clip/Emergency stop button/Laser interlock system.
Each unit also includes protective laser goggles to ensure safe operation during welding. Always wear proper PPE and follow the user manual when working with laser welding equipment.
