5 m
Cable Lenght

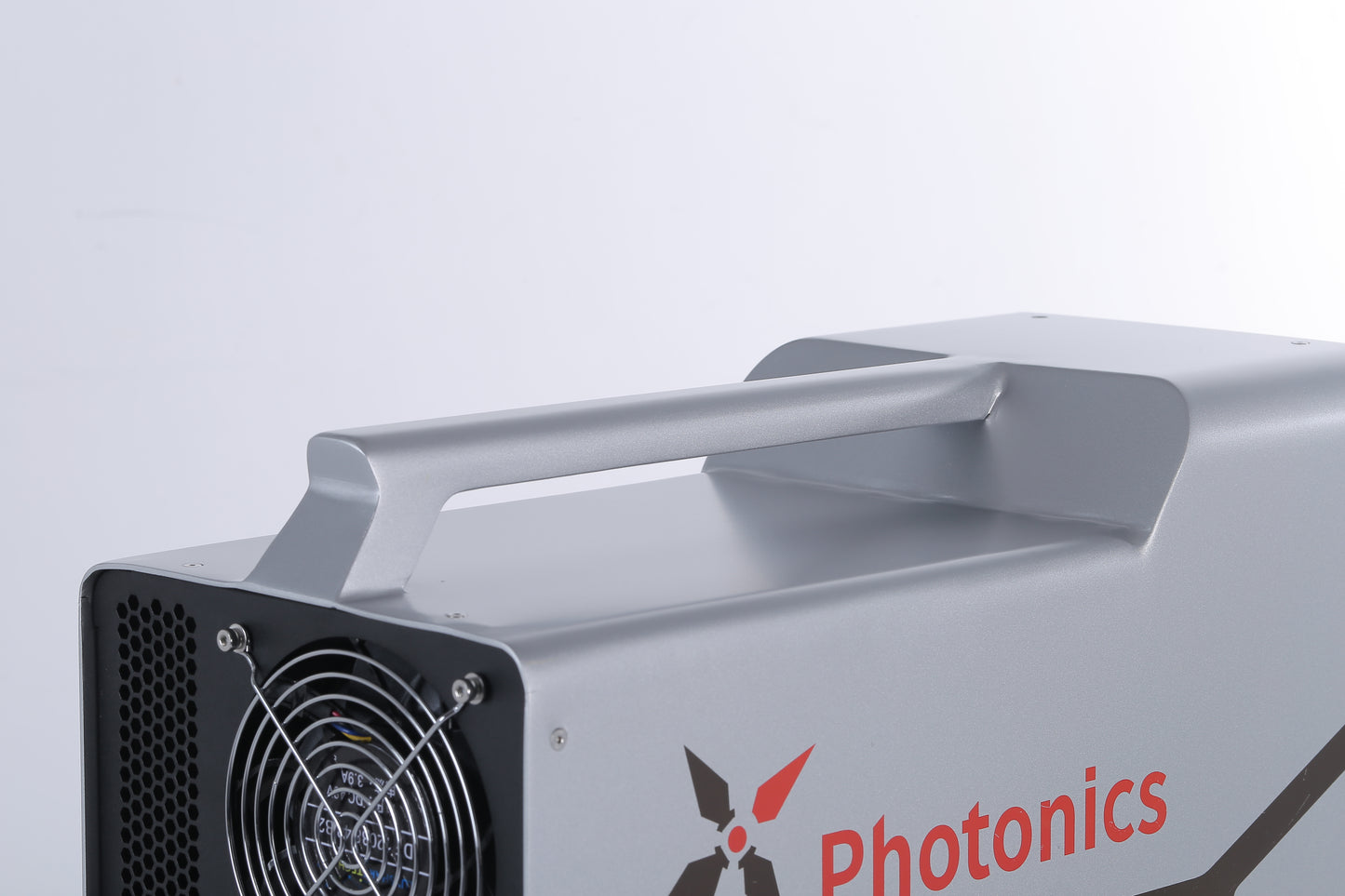

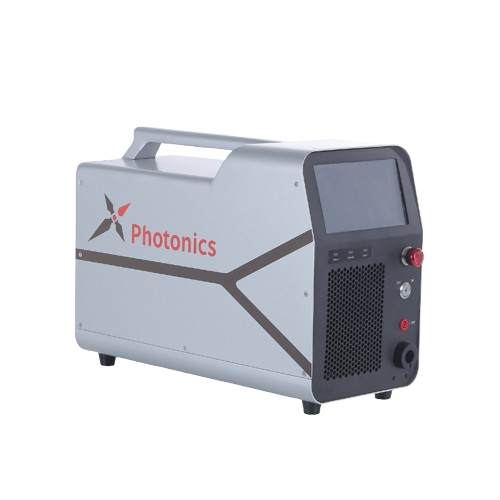

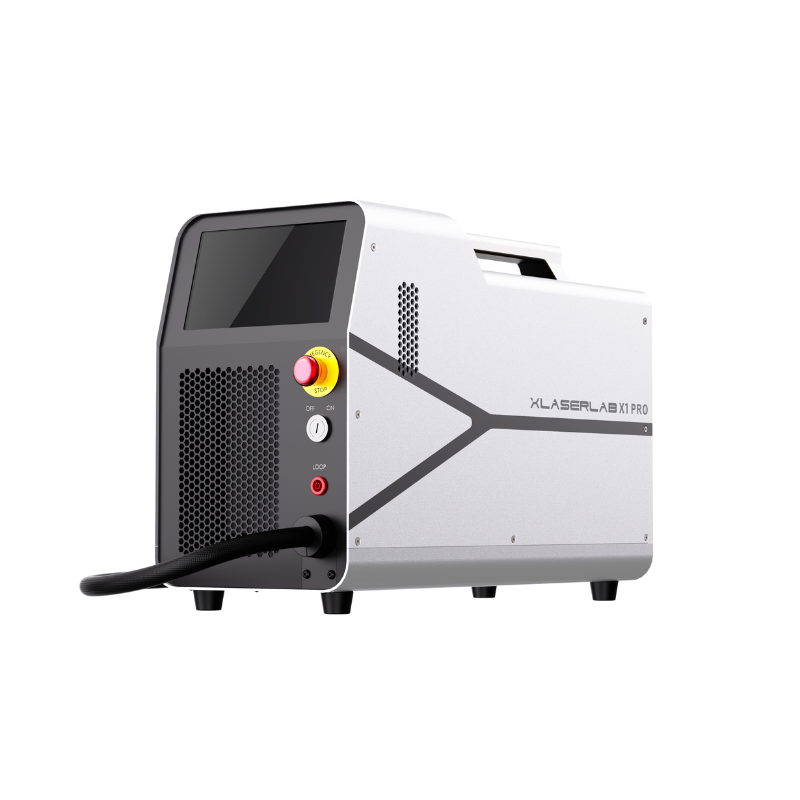

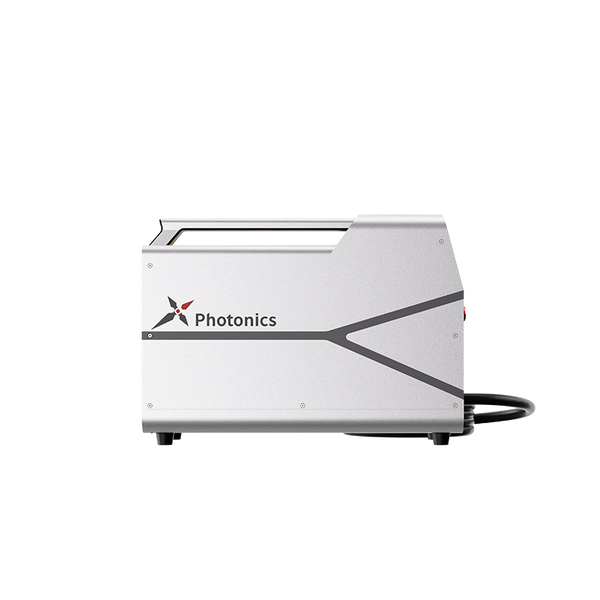

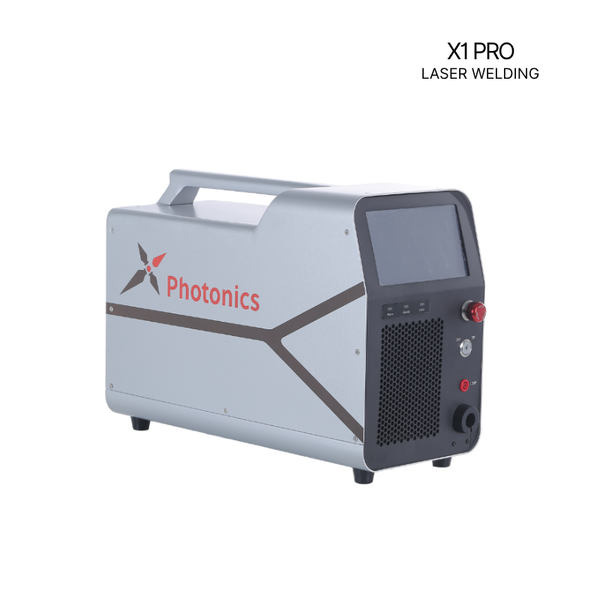

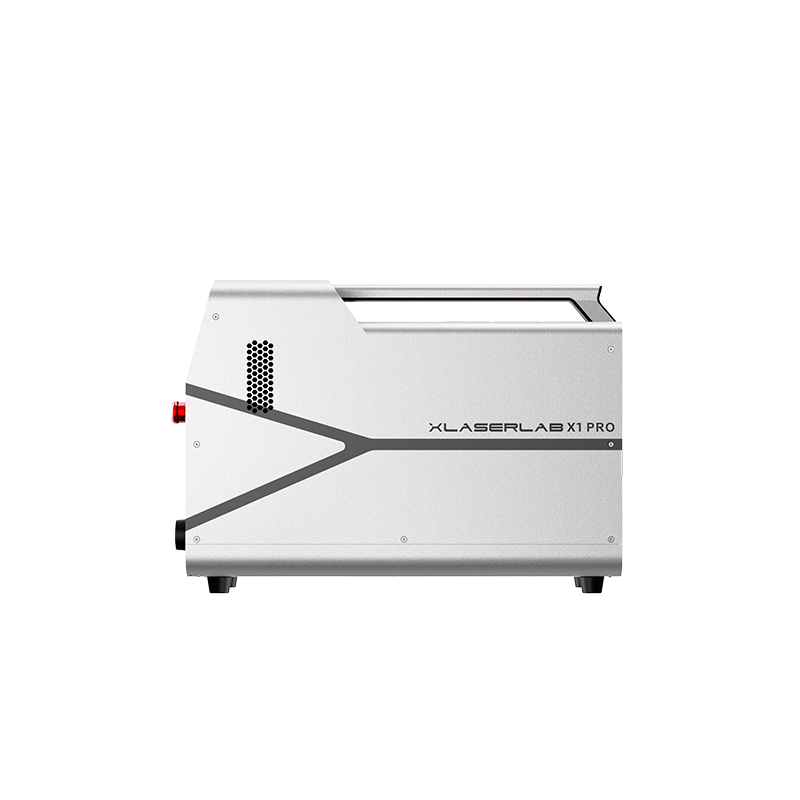

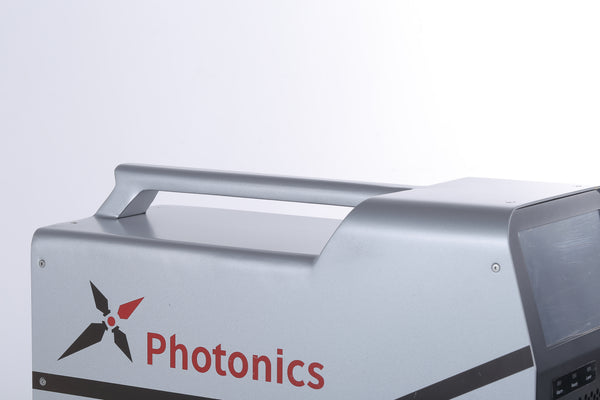

X1 Pro All-in-One Laser Welding, Cutting, Cleaning Machine
$3,299.00 USD
$3,299.00 USD
$4,998.00 USD
Sale
Sold out
Fiber laser welding machine — 6-in-1 solution for welding, cutting, cleaning, and more.
Couldn't load pickup availability
Product Highlights
19 kg (26.45 lb)
Net Weight
24 h
Working Time
0.5-3 mm
Welding Thickness
470x205x335 mm
Mechanical Dimensions
-20-40°C
Working Environment Temperature
Technical Specifications
Product Model
X1 Pro
Laser Light Source
Fiber Laser
Average Laser Power
700 W
Power Supply Voltage
100~240V AC, 50/60Hz
Cooling System
Air-Cooled
Cable Length
5m
Photoelectric Conversion Rate
35%
Power Consumption
2800W
Laser Wavelength
1080+10 nm
Welding Thickness
0.5-3 mm
Welding Speed
0-120 mm/s
Output Mode
Continuous Wave/Pulsed
Weight
19 kg (41.89 lb)
Dimensions
470x205x335 mm
Working Temperature
-20°C(-4°F)~40°C(104°F)
Recommended Gases
Nitrogen/Argon
Recommended Welding Gas Flow
10-15 L/min
Recommended Cleaning Gas Flow
10-15 L/min
Recommended Cutting Gas Flow
15-20 L/min
Operating Gas Pressure
0.2~0.8 Mpa
Gas Hose Outer Diameter
6 mm
Materials
Stainless Steel
Carbon Steel
Iron
Galvanized Sheet
Aluminium
Brass
Copper
Zinc Alloy
And More
Certificates
Fast Shipping
Customer Service
1-Year Warranty
25~35 Days Delivery
Shop Safely
Secure your shopping experience with various safe and trusted payment methods.
Product Information
Overview
Machine Series
X1 Pro
Peak Power
700w
Frequency
1-3k Hz
Output Power
0.3 mW
Cable Length
5m
Power Input
105v - 240-v
Power Dissipation
2500 W
Cooling Method
Air-cooled
Duty Cycle
10-90 %
Learn More
Which is Xlaser right for you?
XLaserlab X1 Pro
Product Model
X1 Pro
Total Power Consumption
2.5kW
Input Voltage
100-240V AC,50/60Hz Supports Global Voltage Standards
Product Dimension
470*205*335mm
Product Weight
19kg (41.89lb)
View More
XLaserlab X1
Product Model
X1
Total Power Consumption
2.4kW
Input Voltage
100-240V AC,50/60Hz Supports Global Voltage Standards
Product Dimension
395*189*265mm
Product Weight
12kg (26.45lb)
View More
Video Reviews
“
Testing New SUPER LASERS... These will take over the maker industry!
Joshua De Lisle
“
XLaserlab X1/X1 Pro: Micro Laser Welding That’s Changing the Game
Sami Luo Tech
“
Desktop LASER WELDER | XLASERLAB X1
Action BOX
“
The Truth About Laser Cleaning - Pros and Cons
James Biggar
FAQ
Our customer support is available Monday to Friday: 8am-8:30pm.
Average answer time: 2h
What can you do with the X1Pro?
The X1Pro performs welding, cutting, cleaning, derusting, and modular CNC integration, while enabling innovative custom uses.
What consumables does the X1Pro use？
Standard consumables for the X1 Pro include welding wire, protective lenses, and of course, contact copper nozzles
What is the maximum thickness the X1PRO can weld, and what materials can it weld?
The X1Pro can weld materials up to 3 mm thick. It is commonly used to weld stainless steel, aluminum, galvanized sheet, and carbon steel.
How much does the X1Pro weigh? How long is the armored cable?
The X1Pro weighs 21 kg, and the armored cable is typically around 5 meters long.
Does the X1Pro come with protective lenses included in the shipment?
We include some protective lenses with the shipment.
What’s in the Box?
X1 Pro Ultimate
X1 Pro Unit
Wire Feeder
X1 Pro Welding Gun

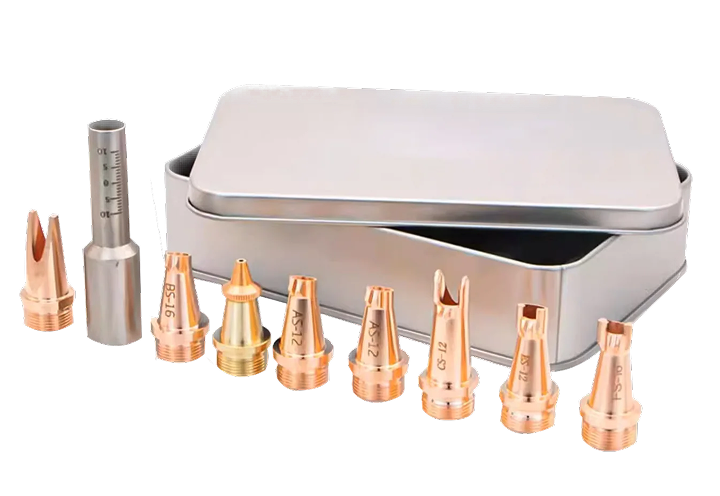

Laser Nozzles Accessories Box

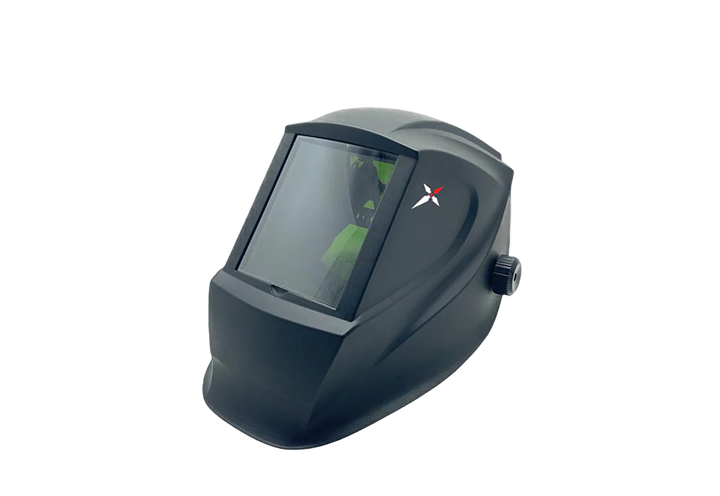

Laser Welding Helmet
Laser Welding Glasses

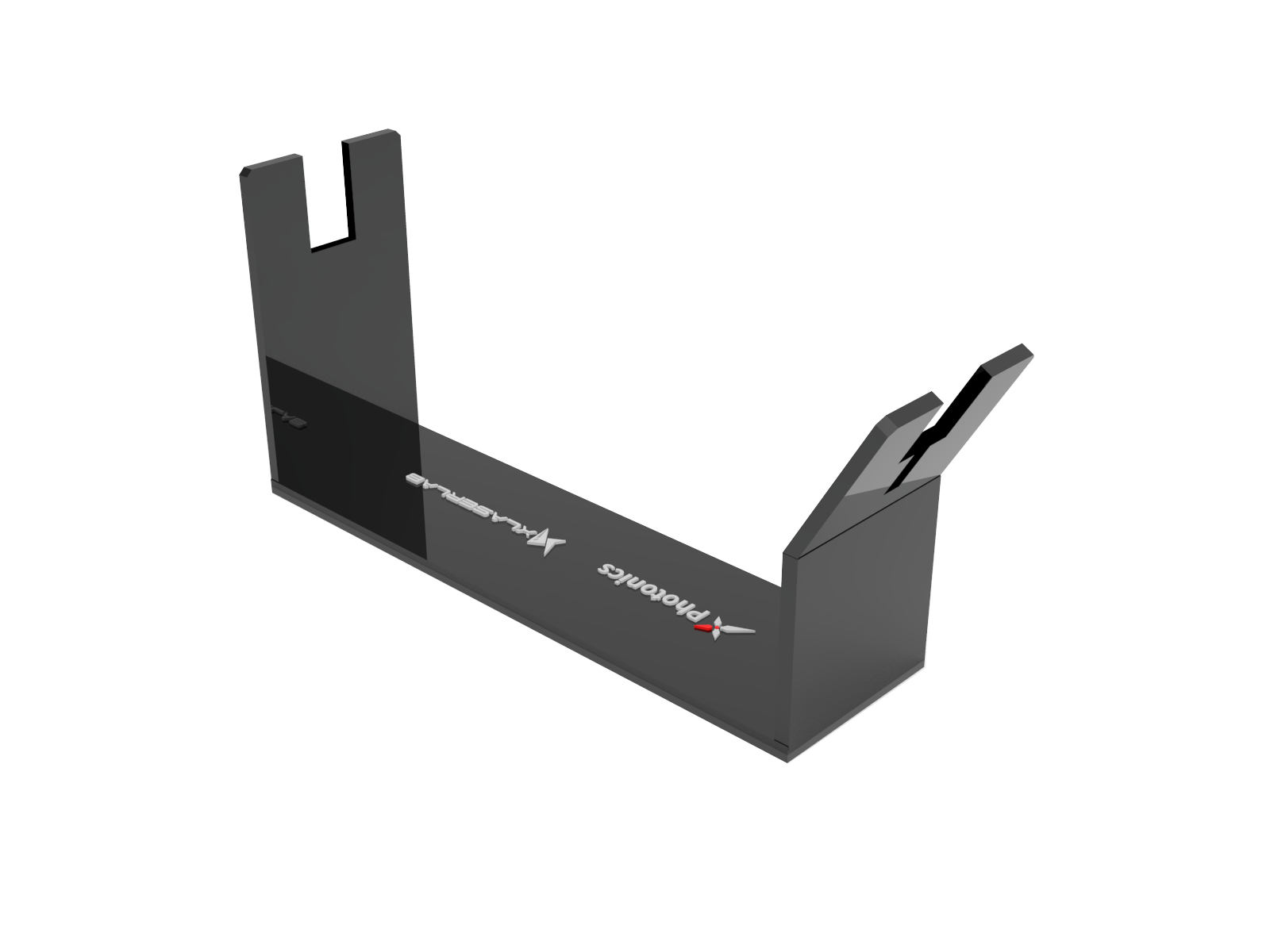

X1 PRO Laser Gun Holder
X1PRO Protective Lens
Special Apron

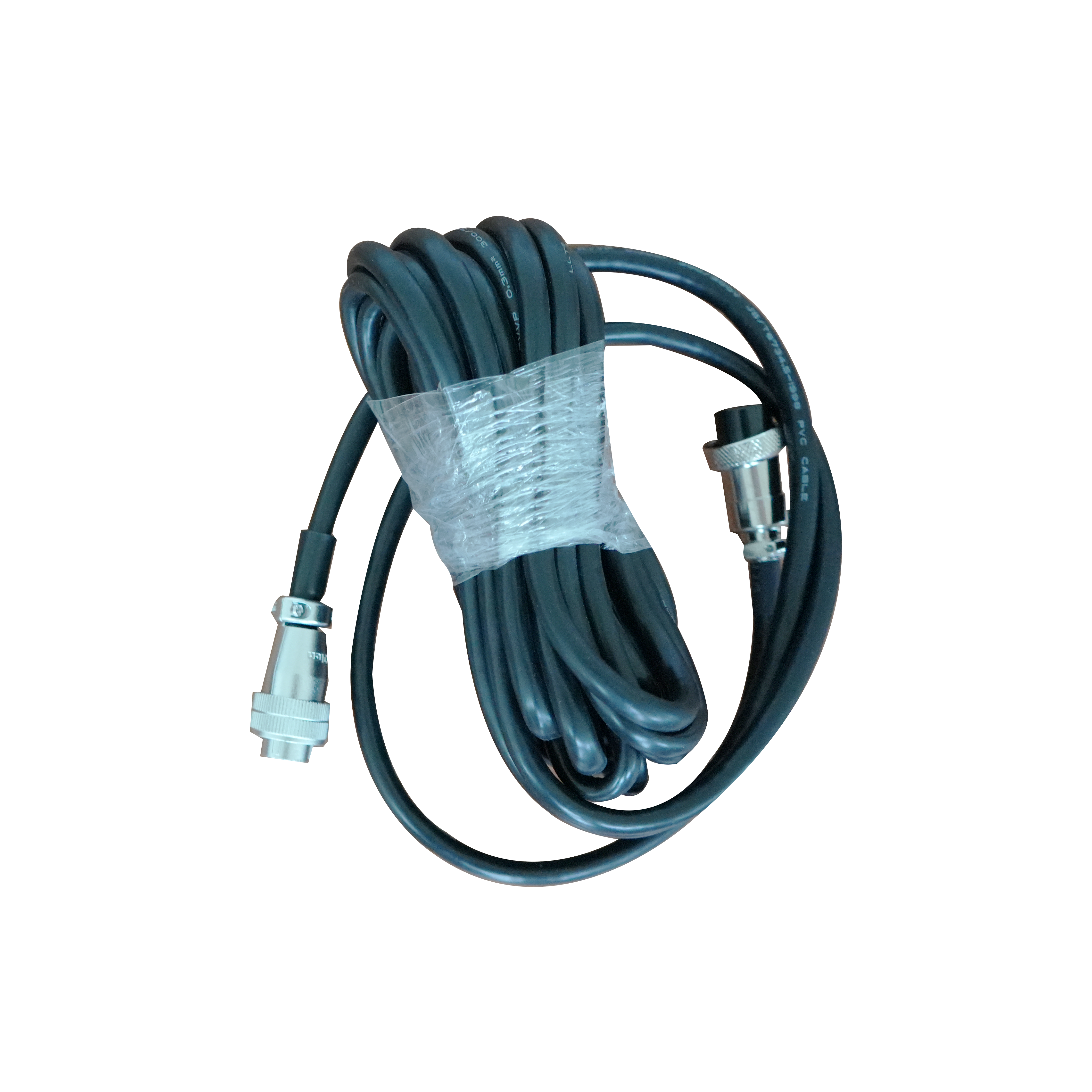

X1 PRO Power Cable
Wire Feeder Power Signal Cable

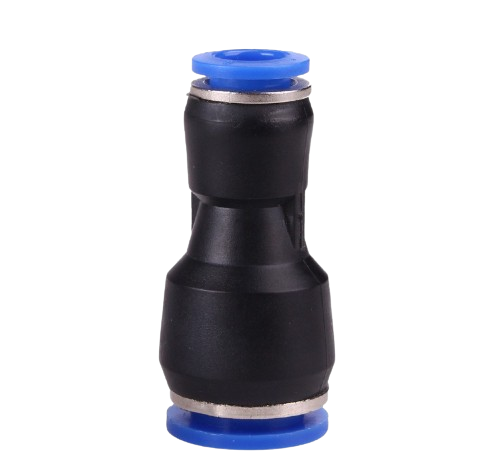

Gas Fitting Adapter

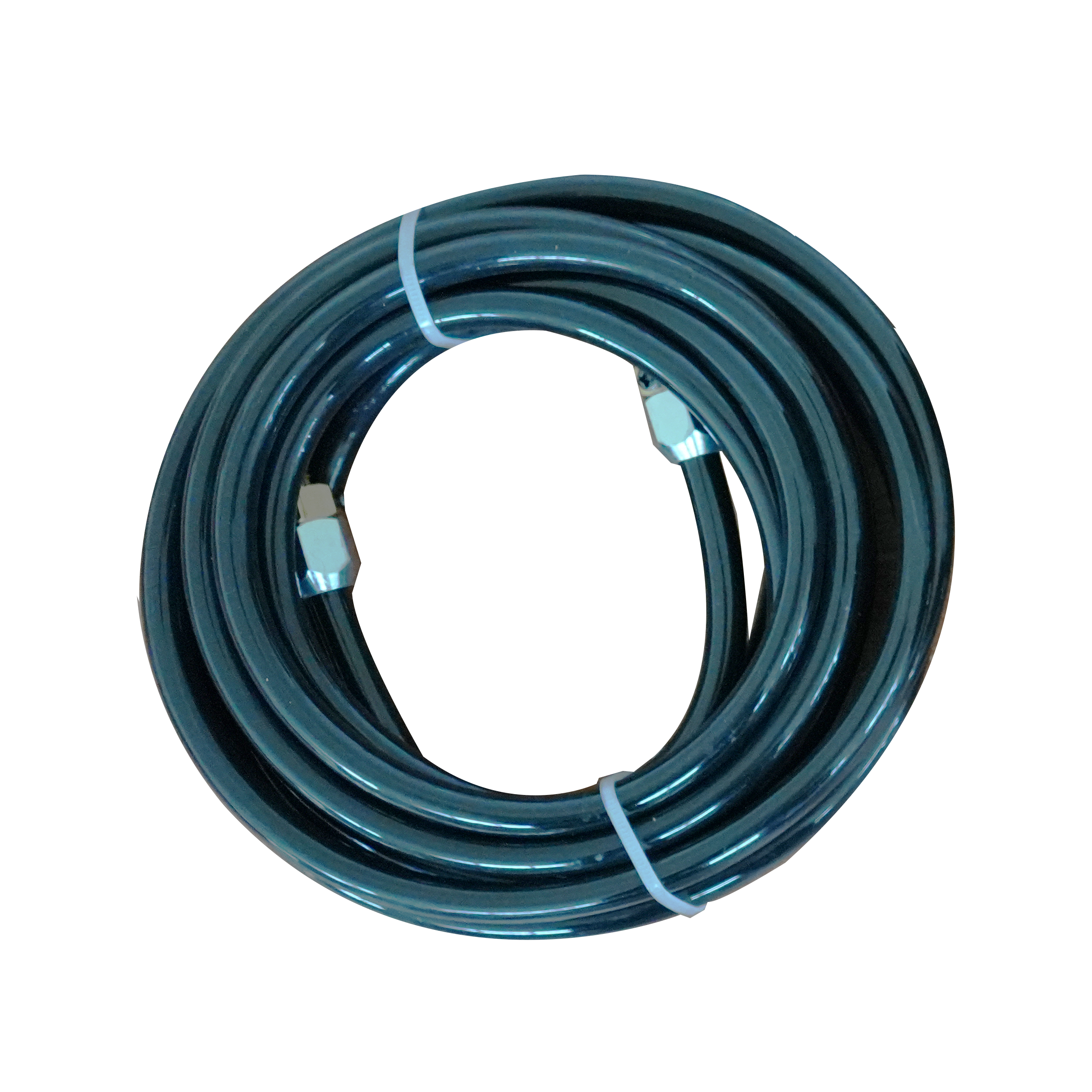

Gas Hose

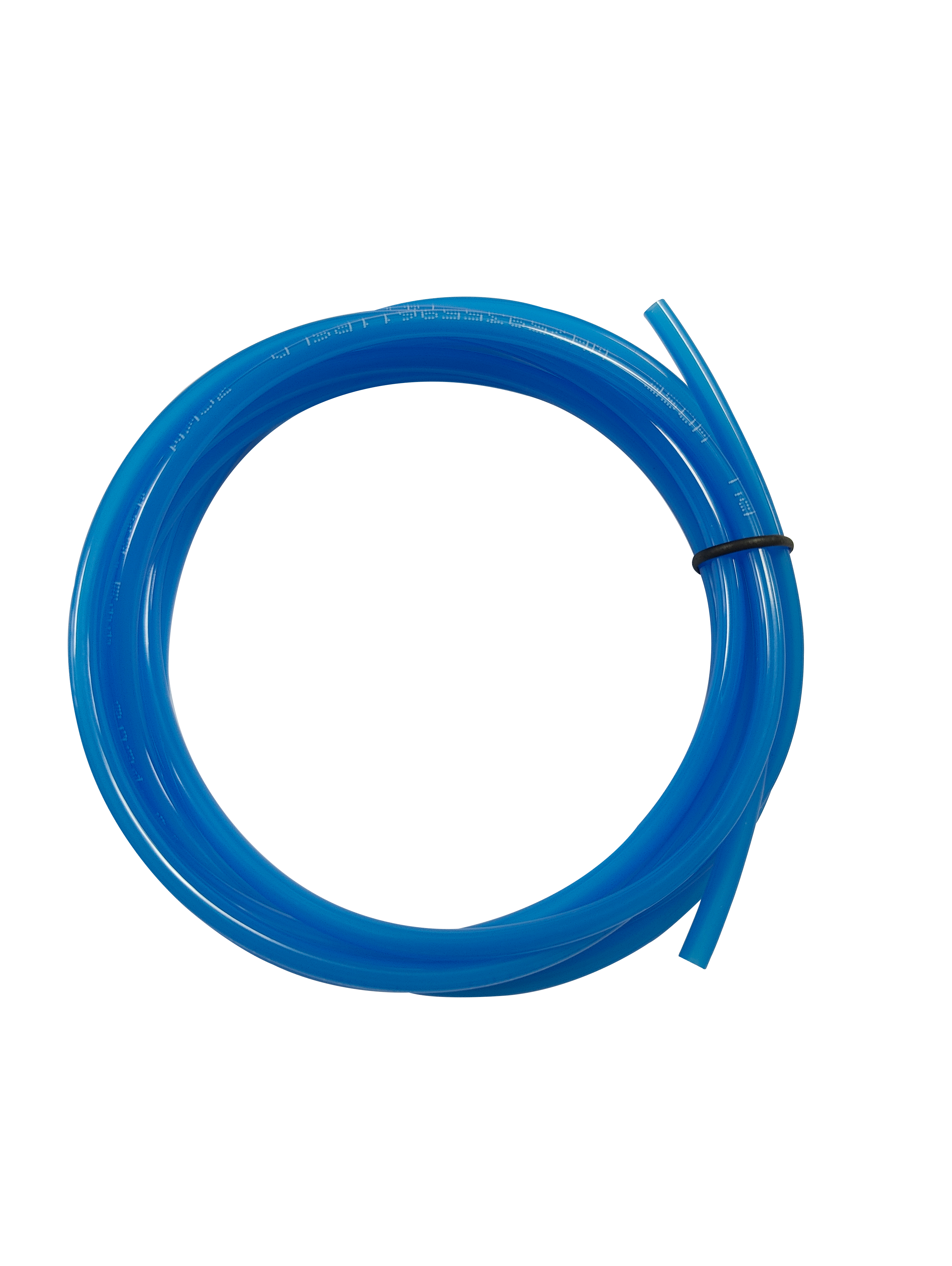

Wire Feed Tube
View All
X1 Pro Basic
X1 Pro Unit
Wire Feeder
X1 Pro Welding Gun
Laser Nozzles Accessories Box
Laser Welding Glasses
X1PRO Protective Lens*2
X1 PRO Power Cable
Wire Feeder Power Signal Cable
Wire Feed Tube
View All
World's Smallest XLaserLab
6-in-1 Multifunctional System, Optimized for Welding Both Thin and Thick Metals Across a Wide Range of Materials
