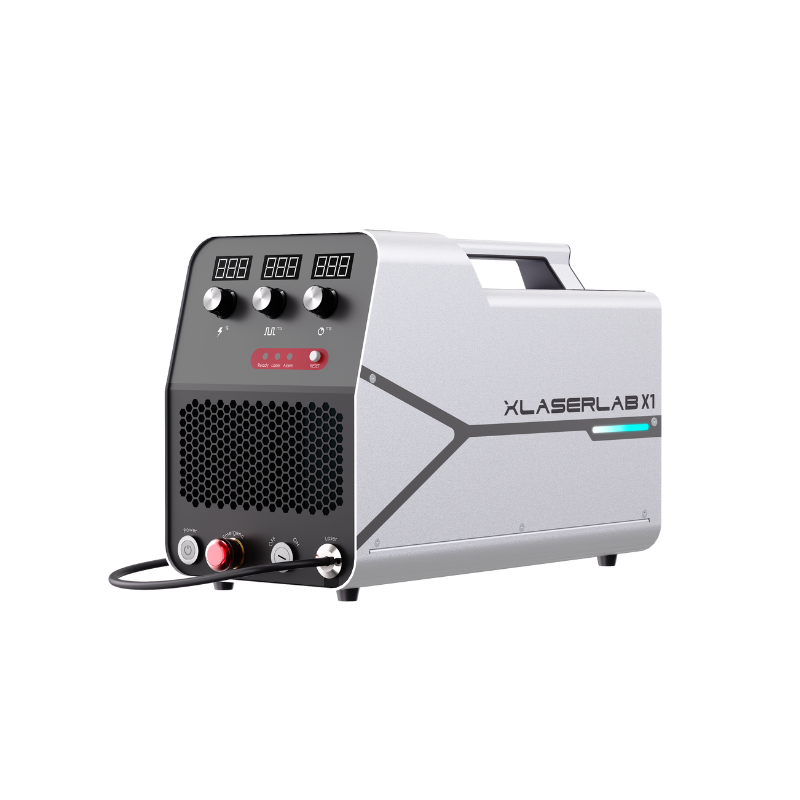

Semiconductor-based compact desktop laser welder — a powerful tool for thin-sheet welding.
Couldn't load pickup availability
Product Highlights
12 kg (26.45 lb)
Net weight
24 h
Working time
0.2-2 mm
Welding thickness
395x189x265 mm
Mechanical dimensions
-20-40°C
Working enviroment temperature
Technical Specifications
Product Model
X1
Laser Light Source
Semiconductor Laser
Average Laser Power
460 W
Power Supply Voltage
100-240V AC,50/60Hz
Cooling System
Air-Cooled
Cable Length
2m
Photoelectric Conversion Rate
50%
Power Consumption
2500 W
Laser Wavelength
900-1000 nm
Welding Thickness
0.2~2 mm
Welding Speed
0-100 mm/s
Output Mode
Pulsed
Weight
12 kg (26.45 lb)
Dimensions
395 x 189 x 265 mm
Working Temperature
-20°C(-4°F)~40°C(104°F）
Recommended Gases
Nitrogen / ArgonCompressed Air
Recommended Welding Gas Flow
10-15 L/min
Recommended Cleaning Gas Flow
-
Recommended Cutting Gas Flow
-
Operating Gas Pressure
0.2~0.4 Mpa
Gas Hose Outer Diameter
4 mm
Materials
Stainless Steel
Carbon Steel
Iron
Galvanized Sheet
Aluminium
Brass
Copper
Zinc Alloy
And More
Certificates
Fast Shipping
Customer Service
1-Year Warranty
25~35 Days Delivery
Shop Safely
Secure your shopping experience with various safe and trusted payment methods.
Product Information
Overview
Machine Series
X1
Peak Power
1100w
Pulse width
1-50 ms
Output Power
0.3 mW
Gable Length
2m
Power Input
220v
Power Dissipation
2500 W
Power Control
1-100 %
Duty Cycle
1-50 %
Learn More
Which is Xlaser right for you?
XLaserlab X1 Pro
Product Model
X1 Pro
Total Power Consumption
2.5kW
Input Voltage
100-240V AC,50/60Hz Supports Global Voltage Standards
Product Dimension
470*205*335mm
Product Weight
19kg (41.89lb)
View More
XLaserlab X1
Product Model
X1
Total Power Consumption
2.4kW
Input Voltage
100-240V AC,50/60Hz Supports Global Voltage Standards
Product Dimension
395*189*265mm
Product Weight
12kg (26.45lb)
View More
Video Reviews
“
Testing New SUPER LASERS... These will take over the maker industry!
Joshua De Lisle
09/05/2019
“
XLaserlab X1/X1 Pro: Micro Laser Welding That’s Changing the Game
Sami Luo Tech
09/05/2019
“
Desktop LASER WELDER | XLASERLAB X1
Action BOX
09/05/2019
“
The Truth About Laser Cleaning - Pros and Cons
James Biggar
09/05/2019
FAQ
Our customer support is available Monday to Friday: 8am-8:30pm.
Average answer time: 2h
What type of laser welding machine is the X1, and what is it used for?
It uses a semiconductor laser source and is specifically designed for welding thin metal sheets.
What are the features of the X1 laser welding machine?
It is compact and lightweight, has a large spot size with uniform energy distribution, and is specifically designed for welding thin metal sheets.
How much does the X1 weigh, and how long is its armored cable?
The X1 weighs 12 kg, and its armored cable is 2 meters long.
What is the minimum thickness the X1 can weld, and what materials can it weld?
The X1 can weld materials as thin as 0.2 millimeters and is mainly used for welding stainless steel.
Does the X1 require welding wire?
The X1 does not require wire feeding
What’s in the Box?
X1 Ultimate
X1 Unit
X1 Welding Gun
X1 Laser Gun Holder
X1 Collimating Lens*7
Welding Glasses
X1 Copper Nozzie

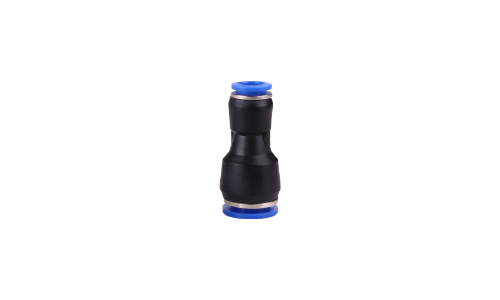

Gas Fitting Adapter
Gas Hose
Welding Ground clamp
X1 Foot Pedal Switch
View All
X1 Basic
X1 Unit
X1 Welding Gun
X1 Collimating Lens
Welding Glasses
Welding Ground clamp
View All
World's Smallest XLaserLab
Desktop Micro Semiconductor Laser Source, Ideal for Ultra-Thin Sheet Welding With Minimal Distortion, Weighs Only 12 kg
