MIG Welding vs TIG Welding: A Comprehensive Comparison Guide

作者信息栏

XLaserlab About 18 minutes

Published Date: Sep 16, 2025

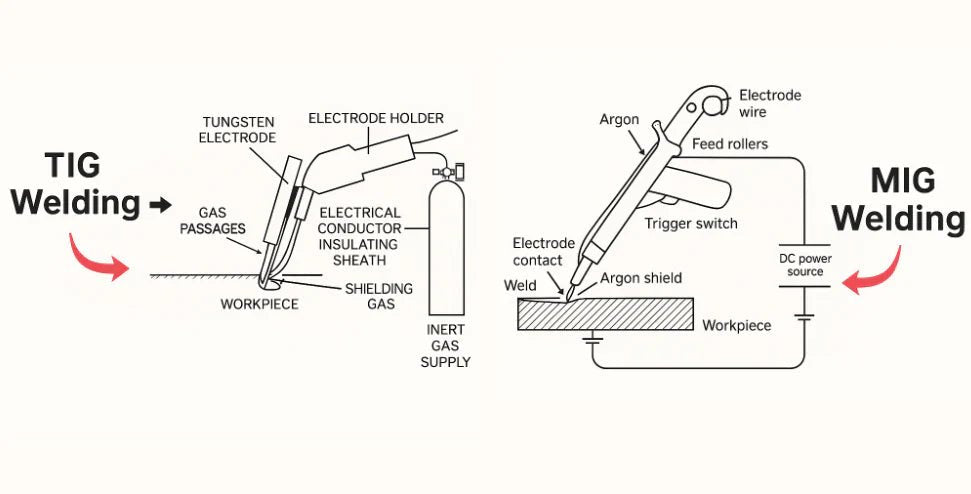

comparison-diagram-of-mig-welding-and-tig-welding-principles

Table of Contents

What is MIG Welding?

What is TIG Welding?

MIG vs TIG Welding: Key Differences

MIG and TIG Welding Strength

Safety Precautions for MIG and TIG Welding

MIG and TIG Welding for Beginners

Conclusion

MIG welding produces a backward thrust of the wire, which allows for faster completion of the weld, and is suitable for multi-job and efficiency projects.TIG welding requires a hand-holding of the wire in conjunction with the weld, which provides better control and a cleaner weld, and is suitable for projects that are interested in precision and durability. In this article they will be fully compared and you will also learn which method is best for your project, as well as provide in this article the mistakes that beginners tend to make in both processes and how to solve them.

What is MIG Welding?

MIG welding, which stands for Metal Inert Gas Shielded (MIG), is also known as Gas Shielded Metal Arc Welding (GMAW). In this process, a solid wire (with filler metal inside) is needed; it is fed into a torch, and the torch will feed the wire as it works. It will slowly push you backwards and forwards; the heat generated by the arc melts the wire and joins the two pieces of metal together, and a shielding gas flows out of the torch as the weld is made. This gas is used to shield the weld from the air.

Tip: MIG welding is best suited for clean, rust-free metals. So be sure to clean your workpiece before you start welding.

Equipment And Settings

Before you start welding, you also need to prepare some equipment; the following are needed:

MIG Welder: It sends the wire to the welder before working; it mainly controls the wire feed and current.
Welding torch: it is mainly responsible for delivering the wire and gas.
Wire electrode: also called consumable wire, this is the metal wire that is melted to form the weld and is used to connect the base metal.
Shielding gas: Usually argon, carbon dioxide, or a mixture thereof, it is necessary to decide which one is needed depending on the material.
Grounding clamp: connected to the workpiece to establish a conductive circuit so that an arc can be created.
Protective equipment: You will need a welding helmet, gloves, and jacket for safety. (Make sure you don't wear clothing that exposes your skin.)

Setting up the MIG welder is very simple. Attach the grounding clamp to the workpiece. Load the wire into the welder. Connect the gas cylinder and set the flow rate. Adjust the voltage and wire speed on the machine. Please ensure you wear your safety equipment before beginning the welding process.

Advantages of MIG Welding

MIG welding has many benefits and is especially suitable for novice welders. Here are some of the main advantages:

Easy to learn: You can master the basics quickly. The whole process is simple and straightforward to understand.
Fast welding: The wire is fed automatically, and the force generated is pushed back automatically, so you can weld faster than with other methods.
Versatile: You can weld many types of metals, including steel, stainless steel, and aluminum.
Cleaner welds: Shielding gas keeps welds free from contamination. Less spatter and neater welds.
Continuous Welding: The wire feed feature allows you to weld for longer periods of time without having to use too much force to control it or stop to change electrodes.

MIG welding is a good choice if you want to finish your project quickly and easily. Many beginners choose it.

Disadvantages of MIG welding

While there are many advantages to this process, you should also be aware of some of its disadvantages. This information can assist you in selecting a welding process that is more appropriate for your project.

Limited weld quality on thin materials Difficulties can be encountered when working with very thin metals. The high heat input may burn through the base material. If you are working with thin sheet metal, you may find it difficult to get a clean weld.
Weak weld control MIG welding provides less control over the weld path than TIG welding. MIG welding is very fast, and the thrust of the fed wire can make it difficult to control the weld and achieve an accurate or aesthetically pleasing weld. If you are looking for a perfect weld, it may not always meet your needs.
Equipment can be bulky; MIG welders often require a power supply, gas cylinder, and wire feeder. This equipment can be heavy and difficult to move. If you need to weld in tight spaces or outdoors, portability can be an issue.
Shielding Gas Sensitivity MIG welding uses shielding gas to protect the weld. Wind or air currents may blow away the gas, resulting in a poor or contaminated weld. It can be tricky to use outdoors unless special equipment or windshields are used.
Not suitable for all metals. It is best suited for steel, stainless steel, and aluminum. It does not weld well on certain metals, such as cast iron or very thick materials.
Spatter and clean up more. Welding produces spatter—small amounts of molten metal that can stick to the workpiece. Cleanup after welding can take more time.

If you are looking for speed and convenience, MIG welding is for you. If you are looking for precision or planning to weld outdoors, you may want to consider other options.

CAUTION: Always check airflow and keep work space clean. Contaminants such as rust, oil or paint may damage the weld.

What is TIG Welding?

The full name of TIG welding is tungsten electrode inert gas shielded welding (GTAW). In TIG welding, the core principle is to create an electric arc with a non-consumable tungsten electrode. The arc melts the metal parts you want to join, while a jet of inert gas (usually argon) from the torch flows around the weld area to protect the molten pool, allowing you to control the amount of heat and filler metal.

This gives you greater control over the weld. Unlike MIG welding, where the wire is fed automatically, TIG welding usually requires the operator to feed the filler wire manually, which also increases control and creates a clean, strong, and beautiful weld depending on the welder's ability to weld.

Because of this, TIG welding is widely used in precision welding of stainless steel, aluminum alloys, titanium alloys, and other materials, especially in aerospace, the food industry, and artistic creations that require a high level of detail, as well as the ability of the welder to perform the basic specialties required.

Tip: TIG welding is the best choice when a strong, clean and precise weld is required. Many professionals use TIG welding to achieve perfect weld results.

Equipment and settings

Equipment that is also needed to perform welding. The following are required:

TIG machines: these provide the current.
TIG torch: It controls the tungsten electrode and directs the shielding gas.
Tungsten electrode: It does not melt. It creates an arc to heat the metal.
Filler rod: If additional metal is needed for the weld, it can be added manually.
Shielding gas: Usually argon. It protects the weld from air.
Foot pedal or manual control: You can use it to regulate the heat while welding.
Grounding clamp: It is connected to the workpiece to complete the circuit.
Protective equipment: For safety, you will need a welding helmet, gloves, and a work shirt or jacket (please err on the side of wearing clothing that shows skin).

Advantages of TIG Welding

TIG is suitable for use in projects that require precision and high quality. Here are its main advantages:

High precision and control: with the use of a non-consumable tungsten electrode and manual filler rod feeding, the welder can have better control over the weld path. This makes it the reason for being a fine work.
Cleaner and more aesthetic welds: It allows for smooth, spatter-free welds with a professional finish. It is often preferred in areas where appearance is important, such as automotive, aerospace, and decorative work.
Material versatility: TIG can weld a wide range of metals, including stainless steel, aluminum, titanium, copper, magnesium, and more specialized alloys.
No spatter: Since it does not rely on continuous wire feed, spatter is virtually nonexistent. This also reduces cleanup time.
Ideal for thin materials: Precise heat control is what allows it to weld very thin plates without burning through.
Robust and durable welds: The welds created with TIG are structurally robust and corrosion-resistant, making them well suited for demanding applications.

If precision, durability, and professional-looking welds are important to you, then TIG welding is often the best choice.

Disadvantages of TIG Welding

Although it excels in terms of quality and precision, there are some drawbacks that need to be considered:

Slower welding speeds: TIG welding is significantly slower compared to MIG welding. This can make it inefficient for large-scale or production welding.
More difficult to learn: TIG welding requires the coordination of both hands (one holding the torch and one holding the wire) and a foot pedal. It can be difficult for beginners to master.
Equipment Costs: TIG machines are generally more expensive than MIG machines, especially those with AC/DC capability for aluminum welding.
Unsuitable for Thick Materials: While TIG is great for welding thin metals, it is less effective on very thick sections unless the welder has specialized skills.
Requires a very clean surface: Very sensitive to contaminants such as oil, rust, and dirt. The base metal must be thoroughly cleaned before welding.
Less portable: Like MIG, TIG units often require shielding gas and bulky equipment, which can also limit mobility for fieldwork.

If your goal is to achieve high-quality, high-precision welds in critical applications, TIG welding is the way to go. But if speed, convenience, or portability are more important to you, handheld laser welding equipment may be more suitable for you, and laser welding is also ideal for welding thin metals.

MIG vs TIG Welding: Key Differences

Welding Technology

The biggest difference between them is the way the tool is operated. In MIG, a torch with automatic wire feed is used. You simply pull the trigger, and the machine does most of the work. This makes it easy to keep your hand steady and focus on moving the torch along the joint and eliminates the need to manually add filler metal. The wire acts as both electrode and filler material.

TIG welding is more controllable, but it also requires a higher level of skill and ability. When welding, you need to hold the torch in one hand and the wire in the other. Use your foot or fingers to control the heating of the wire. Contact of the tungsten electrode with the metal must be avoided. If it touches the metal, the weld may become dirty or lose strength.

Tip: If you are considering a career in welding, then TIG welding is a must-have skill that will make it easier for you to get a job, and knowing about TIG makes it effortless to learn other types of welding.

Welding Speed

When you have a lot of welding to do, speed is the number one priority, and MIG welding is much faster than TIG welding. The wire is fed automatically, so you can weld without interruption. You can complete large projects quickly. This makes it ideal for jobs that need to be done quickly, such as automotive repairs or building frames.

TIG welding takes longer. It must be done slowly and carefully. It slows down because you need to add filler metal manually. Each weld requires more care. If you rush, it is easy to make mistakes. When quality is more important than speed, TIG welding works best.

Welding Strength and Durability

When comparing, the strength and durability of the welds should also be considered. MIG welding creates strong joints, especially on thick metals. The welds hold up well in most applications. You can use it for cars, fences, and many home projects.

TIG welding produces stronger, cleaner welds. You can control the welding heat and filler metal usage to avoid weak spots or cracks. The weld appearance is smooth with fewer defects. Many industries use it for welding components requiring long-term durability, such as aircraft parts or bicycle frames, though it demands higher technical skill.

As seen, each method has distinct advantages. When choosing for your project, you can refer to the above comparison.

Material Compatibility

When selecting a welding process, the type of metal to be welded should also be considered. Not all welding methods are suitable for all metals. Some metals require special settings or extra care.

MIG Welding Material Compatibility:

MIG welding can be used on a variety of common metals.
It is best suited for low-carbon steel, stainless steel, and aluminum.
It is suitable for thicker materials. It can perform deep penetration, which aids in welding thick steel.
It performs poorly on cast iron or very thin sheets. High temperatures may burn holes or cause cracks.

TIG Welding Material Compatibility:

It allows for greater control over heat and filler metal.
Almost any metal can be used, even hard metals.
It is ideal for thin materials. You can achieve precise welds on sheet metal, copper, magnesium, titanium, and specialty alloys.

MIG and TIG Welding Strength

Which Welding Method Produces Stronger Joints?

When performed correctly, TIG welding produces stronger joints.

When both welding methods are executed by skilled welders, TIG welds typically surpass MIG welds in strength, purity, and ductility.

Reasons include:

Exceptionally high weld purity: The TIG welding process is extremely clean, producing minimal spatter. Inert gases like argon perfectly shield the molten pool, effectively preventing contamination from atmospheric oxygen, nitrogen, and other impurities. This results in exceptionally pure weld metal with minimal internal defects such as porosity or inclusions that cause stress concentrations and reduce strength.
Unparalleled Control: In TIG welding, the welder independently and precisely controls heat input (typically via a foot pedal) and filler material addition. This fine-grained control allows heat to penetrate the base metal more concentratedly and efficiently, achieving optimal penetration depth and fusion. This ensures joint integrity and metallurgical quality.
Superior Metallurgical Bonding: The slower, more deliberate nature of the TIG welding process results in a relatively slower cooling rate of the metal. This promotes the formation of a more desirable metal grain structure, yielding welds with enhanced ductility (toughness) and strength.

In Summary:

This is not to suggest that MIG welding is not robust. A high-quality MIG weld provides fully adequate and reliable strength for the vast majority of industrial and structural applications.

However, when a project demands the material's maximum potential strength, absolutely flawless weld interiors, and a perfect appearance, TIG welding is the superior choice. It functions more like a “surgical” precision process, while MIG focuses on efficient production.

Impact on Structural Applications

You may be wondering which method is better suited for buildings, bridges, or machinery. Structural applications require welds capable of withstanding pressure. TIG welding produces high-quality welds with deep penetration. You can use TIG welding for critical components where damage is unacceptable. Many industries rely on TIG welding for pressure vessels, pipelines, and aerospace components.

MIG welding is common in construction and manufacturing. You can quickly weld long seams. MIG welds are strong enough for frames, supports, and automotive parts. If you're welding large structures, MIG welding saves you time and effort.

Welding Method	Primary Structural Application Fields
MIG Welding	Structural steel for buildings (beams, columns), bridge construction, heavy machinery and equipment, shipbuilding and marine engineering, automotive main beams and frames, general metal fabrication
TIG Welding	Aerospace components, professional racing chassis/roll cages, high-pressure pipelines and pressure vessels, high-end bicycle frames, precision mold repair, special alloy structural parts (e.g., titanium alloys)

Safety Precautions for MIG and TIG Welding

Common Hazards in MIG Welding

When using MIG welding, the arc produces intense light and heat. This light and heat can burn your eyes and skin. Additionally, you will be exposed to hot metal and sparks. Contact with them or sparks landing on your clothing can cause burns.

It uses shielding gas. If you work in confined spaces, the shielding gas will displace the air you need to breathe. You may feel dizzy or lightheaded. The welding process also produces fumes. Long-term inhalation of these fumes can damage your lungs.

Here are some common hazards you should be aware of:

Eye injuries from arc rays and flying sparks
Burns from hot metal and spatter
Inhalation of welding fumes
Electric shock from touching live parts
Fire risk from sparks landing on flammable materials

Common Hazards in TIG Welding

TIG welding itself carries inherent risks. The arc is extremely bright and can cause rapid eye damage. A professional welding helmet must be worn to protect the eyes during every welding operation. The welding torch and metal become extremely hot. Touching them can result in severe burns.

TIG welding uses pure argon gas, which produces ozone during welding. This gas is colorless and odorless. If welding in an enclosed room, argon can fill the space, reducing oxygen levels. You may not notice until you feel weak or have difficulty breathing.

It also produces metal fumes. Certain metals, such as stainless steel or nickel, produce more hazardous fumes. You need to maintain good air circulation in the workspace.

Common TIG welding hazards include:

Eye damage from intense arc light
Severe burns from high-temperature torches and molten metal
Gas accumulation in confined spaces
Toxic fumes from certain metals
Electrical shocks from malfunctioning equipment

Safety Equipment and Best Practices

Using the right equipment and developing good habits ensures safety. Always wear a welding helmet with the appropriate shade. The helmet protects your eyes and face from light and sparks. Use fire-resistant gloves and a long-sleeved jacket to protect your skin.

Below is a list of basic safety equipment:

Safety Equipment	Purpose
Welding Helmet	Protects eyes and face
Gloves	Protects hands from high temperatures
Jacket/Apron	Covers arms and body
Safety Glasses	Provides additional eye protection
Respirator/Mask	Filters harmful fumes
Work Boots	Protects feet from injury by hot metal

You should also:

Ensure your work area is well-ventilated
Remove flammable items before welding
Inspect all cables and connections for damage
Never weld in damp locations
Store gas cylinders upright and secured

Tip: Safety first. Before starting to weld, take the time to set up your equipment and workspace properly. Don't skip this step—it helps prevent accidents and protects your health.

MIG and TIG Welding for Beginners

Easy to Learn

If you're new to welding, it's recommended to start with a simple, user-friendly method. MIG welding typically excels in this regard. You simply hold the torch, pull the trigger, and the machine automatically feeds the wire. The entire process is as easy as using a hot glue gun. You can focus on moving your hand along the joint without worrying about manually adding filler metal.

TIG welding demands greater coordination. You must use both hands, and sometimes your foot. One hand holds the torch, the other feeds the welding rod, while your foot controls the heat. You must avoid touching the tungsten electrode to the metal. This requires practice and patience.

Common Mistakes of Beginners

Mistakes are inevitable during the learning process. This is perfectly normal. Understanding the most common errors can help you avoid them.

MIG Welding Mistakes:

Moving the gun too fast or too slow. The travel speed directly determines weld penetration depth, weld width, and overall strength.
- Moving too fast: Results in insufficient heat input, preventing the melted filler wire from fully fusing with the base metal. This creates a narrow, convex weld with unfused root, resulting in extremely low strength and high susceptibility to fracture.
- Moving Too Slowly: Causes excessive heat buildup, especially on thin sheets, easily leading to burn-through. On thicker sheets, it produces overly wide, flat welds that waste filler material and may cause overheating and distortion of the base metal.
Failure to clean metal prior to welding
- Any contaminants will burn and vaporize under the high temperatures of the arc, trapping gases within the molten pool and forming porosity. These pores act like bubbles within the weld, severely compromising its structural strength and sealing integrity. Simultaneously, impurities cause arc instability and increased spatter, resulting in a rough weld appearance.
Incorrect wire feed speed or voltage, mismatched wire feed rate and voltage settings
- Excessive voltage/low wire feed speed: Produces heavy spatter, a “crackling” arc sound, flat welds, and potential undercut.
- Voltage too low/wire feed speed too high: The wire plunges into the molten pool, causing “wire sticking,” an unstable arc, and forming a coarse, raised “worm-like” weld with very poor fusion to the base metal.
Failure to check gas flow, gas cylinder not turned on, or improper gas flow setting (too high or too low)
- No gas or insufficient flow: The molten pool is inadequately shielded, allowing air intrusion. This results in numerous porosity defects, a brittle weld, and a black or gray oxide layer on the surface.
- Excessive flow: Not only does this waste gas, but it can also create turbulence around the molten pool, drawing in air. This similarly compromises shielding and leads to porosity.

TIG Welding Error:

Tungsten Contacts Metal (Contaminated Weld)
- Error Manifestation: During welding, the tungsten electrode tip accidentally touches the filler wire or molten pool.
- Why the Error Occurs: This is the most common error in TIG welding. Once the tungsten electrode contacts the molten pool, tungsten particles enter the weld, forming a “tungsten inclusion” defect. This defect point becomes a stress concentration zone, severely compromising the weld's strength and toughness. Simultaneously, the contaminated tungsten tip melts and deforms, causing arc deviation and instability. Welding must be halted, and the tungsten electrode must be reground.
Unsteady Hand, Unstable Arc Length and Movement
- Error Manifestation: Hand tremors cause the distance between the tungsten electrode and the workpiece (arc length) to fluctuate erratically.
- Why It's an Error: The aesthetics and quality of TIG welding depend entirely on stability. Unstable arc length directly affects heat input, leading to inconsistent weld width and penetration depth. Hand tremors also cause the weld bead to appear crooked, severely compromising appearance. This requires extensive practice to develop muscle memory in the hand.
Metal Overheating Causes Warping
- Error Manifestation: Prolonged dwell time in one area or continuous long welds on thin sheets.
- Why It's Wrong: TIG welding concentrates heat intensely. Improper heat input control causes localized thermal expansion and uneven cooling contraction, generating internal stresses that ultimately deform or warp the workpiece. This is particularly noticeable in heat-sensitive materials like stainless steel and aluminum.
- Solution: Employ short-arc spot welding or segmented welding to allow heat dissipation. Proper fixture clamping can also effectively minimize distortion.
Using the wrong filler rod
- Issue: The filler wire material is incompatible with the base metal.
- Why it's wrong: Filler wire isn't merely “filler”—it constitutes the alloy composition of the weld. Mismatching filler wire with the base metal (e.g., using carbon steel wire on stainless steel) results in incorrect chemical composition in the weld. This can cause cracking, insufficient strength, or accelerated corrosion over time. Always ensure the filler wire grade matches your welding

Warning: Always wear safety equipment. Failure to do so may result in burns and eye injuries.

Conclusion

MIG welding and TIG welding each have distinct advantages. During MIG welding, the wire feed is automatic, and the resulting thrust pushes you backward. It offers high speed and is better suited for multi-project scenarios where efficiency is prioritized. TIG welding requires manual control, which allows skilled operators to achieve unparalleled precision, producing clean and durable welds. The choice of process depends on project requirements, such as material type, required weld quality, and production efficiency.

Meanwhile, the growing prominence of laser welding warrants attention. Combining high precision with rapid processing, laser welding excels in thin metal sheets, complex geometries, and applications requiring minimal post-weld finishing. It also proves more accessible to newcomers. Across numerous industries, it is increasingly serving as a complementary solution to traditional MIG and TIG processes.
