What Is a 3 in 1 Laser Machine: Complete Guide to Welding, Cleaning, and Cutting Technology

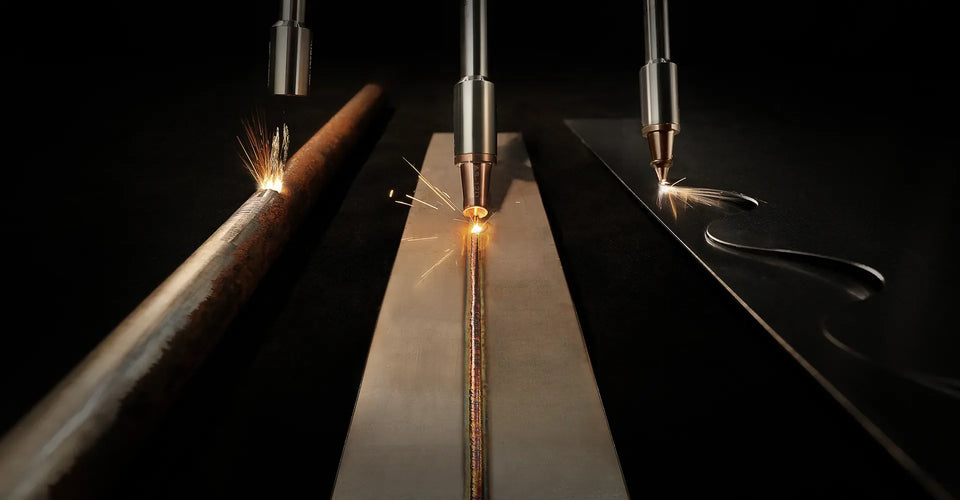

A 3 in 1 laser is a fiber laser system that combines welding, cutting, and cleaning into one compact, handheld machine. These systems typically range from 1500W to 3000W and are built for metal fabricators who want one portable unit instead of three separate machines. The Xlaserlab X1 Pro is one example, designed with a 10,000+ hour lifespan and the ability to switch between functions in seconds.

So what does "3 in 1" actually mean? It refers to three distinct metalworking operations you can perform without moving your workpiece:

• Laser Welding: Joins metal pieces using a focused, high-energy beam
• Laser Cutting: Slices through thin sheet metal with clean edges
• Laser Cleaning: Removes rust, paint, and oxide layers from surfaces

Think of it like a workshop multi-tool. Instead of reaching for a welder, then a grinder, then a cleaning solution, you pick up one handheld gun and switch modes as the job demands.

How a 3 in 1 Laser Welder Cutter and Cleaner Works

The technology relies on a fiber laser source that generates a powerful beam of light. This beam travels through a flexible fiber optic cable to a handheld gun, which you direct at your workpiece.

Switching between welding, cutting, and cleaning happens by changing nozzles, adjusting power settings, or altering the beam pattern. For example, cleaning uses a wider, pulsed beam that vaporizes surface contaminants without melting the base metal. Laser welding uses a focused, continuous beam to melt and fuse metal pieces together.

The real advantage here is simplicity. You select your material and thickness on the control panel, and the machine configures the parameters automatically. Many operators produce quality welds within hours of first using the equipment—a big difference from the years it can take to master TIG welding.

Laser Welding Capabilities of a 3 in 1 Machine

Deep Penetration Welds on Thin Metals

The laser creates strong, deep penetration welds on thin to medium gauge sheet metal, typically up to 3mm in a single pass. This process avoids the excessive heat buildup common with traditional methods, which means a stronger bond with less filler material.

Supported Joint Types and Configurations

You can perform a variety of common weld joints with a 3 in 1 laser, including butt welds, corner welds, lap welds, and fillet welds.

Minimal Heat Affected Zone and Reduced Warping

The "heat affected zone" (HAZ) is the area of base material that has had its properties altered by heat but has not melted. Laser welding creates a minimal HAZ, which translates to less heat distortion and warping.

Why does this matter? For example, if you're welding thin stainless steel panels for a food-grade enclosure, traditional welding might warp the panel and require hours of grinding and straightening. With laser welding, the panel stays flat, and you move on to the next piece.

Laser Cutting with a 3 in 1 Welder Cutter

Precision Cuts Without Post Processing

Laser cuts produce clean, smooth edges that often require no grinding or finishing. This is a notable advantage over plasma or mechanical cutting, which typically leave rougher edges and burrs.

For example, if you're cutting brackets from thin sheet steel, the laser leaves edges clean enough to weld immediately—no deburring step required.

Cutting Thickness and Speed Performance

A 3 in 1 laser works best for cutting thin sheet metal with high precision and speed. It handles materials up to a few millimeters thick efficiently. However, it's not designed for cutting thick plate steel, where plasma or oxy-fuel cutting remains more appropriate.

Task	3 in 1 Laser	Plasma Cutter
Thin sheet precision	Excellent	Moderate
Thick plate cutting	Limited	Excellent
Edge quality	Clean, burr-free	Requires cleanup
Heat distortion	Minimal	Higher

Laser Cleaning Functions for Surface Preparation

Rust and Oxide Removal

The laser cleaning process vaporizes rust and oxide layers from a metal surface without damaging the base material underneath. This makes it ideal for preparing surfaces before welding or painting.

Paint and Coating Stripping

You can precisely remove old paint, powder coating, or other surface finishes. The process is chemical-free and creates no secondary waste, making it an environmentally friendly option compared to sandblasting or chemical strippers facing EPA's 2024 ban on perchloroethylene.

Pre Weld and Post Weld Surface Prep

The cleaning mode serves double duty. Before welding, it removes contaminants like oil and rust, ensuring a stronger, cleaner weld. After welding, it removes discoloration, soot, and spatter for a finished look.

For example, you're repairing a rusty trailer hitch. You clean the rust with the laser, weld the repair, then clean the weld bead—all with the same tool, without moving the workpiece.

What Materials Can a 3 in 1 Laser Handle

Stainless Steel

This is one of the most common applications. You'll get excellent results for food-grade equipment, automotive parts, and architectural metalwork.

Aluminum

Laser welding aluminum requires different settings due to the metal's high reflectivity, but modern 3 in 1 machines handle this with preset adjustments. The machine compensates automatically when you select aluminum as your material.

Carbon Steel

Carbon steel is one of the easiest materials to work with using a fiber laser, yielding fast and consistent results across all three functions.

Titanium and Brass

Titanium and brass work well for welding and cleaning. Cutting capabilities may be limited to thinner gauges compared to steel.

Galvanized Sheet Metal

The cleaning function can precisely remove the zinc coating along the weld line before welding. This prevents porosity and ensures a strong joint without extensive prep work.

Benefits of a 3 in 1 Laser Over Separate Machines

• Reduced Equipment Investment: You buy one machine instead of three, which leads to significant cost savings on the initial purchase.
• Smaller Shop Footprint: One compact, portable unit saves valuable floor space—especially important for small workshops where every square foot counts.
• Faster Workflow Transitions: Switch between cleaning, welding, and cutting in seconds without moving a workpiece to different stations.
• Simplified Training: Learning one machine interface is easier than mastering three different systems. Many units feature one-touch presets that configure parameters automatically.

3 in 1 Laser vs Traditional Welding and Cutting Methods

How does a 3 in 1 laser compare to the TIG/MIG welder and plasma cutter you might already own?

Factor	3 in 1 Laser	TIG/MIG Welding	Plasma Cutting
Learning Curve	Short (hours to days)	Long (months to years)	Moderate
Heat Distortion	Minimal	Higher	High
Post-Processing	Little to none	Often required	Usually required
Consumables	Low	Higher	Higher
Portability	Highly portable	Moderate	Moderate

The laser excels at precision work on thin metals where heat distortion and finish quality matter. Traditional methods still have their place for thick materials and certain joint configurations, but for sheet metal work, the laser often delivers faster results with less cleanup.

Laser Welding Machine Price and Total Cost of Ownership

Entry Level 3 in 1 Systems

Lower-wattage machines are suitable for hobbyists, artists, and light-duty work. Entry-level systems make it possible to bring laser technology in-house without a massive investment.

Professional Grade 3 in 1 Systems

Higher-wattage systems are built for production environments. They offer faster speeds, can handle thicker materials, and are designed for more continuous use.

Consumables and Maintenance Costs

Ongoing costs are relatively low compared to traditional welding. You'll replace protective lenses periodically to maintain beam quality, use wire and filler for welding operations, and perform occasional cooling system maintenance on water-cooled units.

Who Uses a 3 in 1 Laser Machine

Small Fabrication Shops

A 3 in 1 laser is ideal for shops that perform varied metal work and want the flexibility to switch between tasks quickly without investing in multiple large machines.

Mobile Repair and Field Services

The portability of handheld laser welding machines makes them excellent for on-site repair work in auto body, agricultural equipment, and industrial maintenance.

Restoration and Custom Metal Work

Perfect for auto restoration, furniture repair, and artistic metalwork where clean, precise welds and perfect surface preparation are critical.

Manufacturing Prototyping and Light Production

Useful for small-batch production runs and prototype development, where switching between cutting, cleaning, and welding operations is a frequent part of the workflow.

How Easy Is It to Learn a 3 in 1 Laser Welder

Unlike TIG welding, which can take years to master—a growing concern with 330,000 welding professionals needed by 2028—an operator can produce high-quality welds with a 3 in 1 laser in a very short time. Many systems feature preset controls where you simply select the material and thickness, and the machine automatically sets the optimal power, speed, and other parameters.

This means you don't need prior welding experience to get started. The Xlaserlab X1 Pro, for example, uses a one-touch preset system that lets new users achieve clean, strong welds within hours of unboxing.

Essential Safety Gear for 3 in 1 Laser Operation

Laser Safety Goggles for Fiber Lasers

Standard safety glasses or welding helmets do not block fiber laser wavelengths. You'll want safety goggles with an Optical Density (OD) rating of 7+ specifically for the fiber laser wavelength (around 1064nm). Optical Density refers to the material's ability to block a specific wavelength of light.

Auto Darkening Laser Welding Helmets

Specialized helmets provide both laser protection (OD8+ or higher) and an auto-darkening filter for viewing the bright weld puddle. Quality helmets also feature true-color viewing for better visibility of your work.

Respiratory Protection for Welding Fumes

Laser welding, cutting, and cleaning generate harmful metal fumes that can cause cancer and organ damage. A PAPR (Powered Air-Purifying Respirator) is recommended, especially in enclosed spaces. A 2-in-1 helmet with an integrated respirator offers complete head, eye, and respiratory protection.

Tip: Never use standard arc-welding helmets for laser work. They don't block the specific wavelengths that fiber lasers produce, and you can suffer permanent eye damage even if the helmet appears to darken. Follow safe handheld laser welding practices to protect yourself and everyone in your workspace.

How to Choose the Right 3 in One Welding Machine

Power Level and Wattage Requirements

Higher wattage allows you to weld and cut thicker materials at faster speeds. Match the wattage to your typical workload—lower power (1500W) works well for thin sheet metal, while higher power (3000W) handles thicker materials and production speeds.

Air Cooled vs Water Cooled Laser Systems

• Air Cooled: Lighter, more portable, and lower maintenance. Best for intermittent use and field repairs.
• Water Cooled: Better for continuous, all-day operation and handles higher power levels more effectively. Requires a chiller unit and periodic maintenance.

Portability and Weight Considerations

If you move the machine between job sites, consider the total system weight and design. Some systems are built into compact, wheeled cases specifically for field portability.

Preset Controls and User Interface Features

Look for systems with a library of material-specific presets. One-touch controls simplify operation, reduce setup time, and ensure consistent results. The Xlaserlab X1 Pro's preset system is designed specifically for this user-friendly approach.

Get Started with Professional 3 in 1 Laser Technology

A 3 in 1 laser machine simplifies your entire metalworking workflow by combining welding, cutting, and cleaning into one efficient, portable system. It saves space, reduces costs, and empowers users of all skill levels to achieve professional results.

Weld. Cut. Clean. Repair. One machine handles it all.

Explore the Xlaserlab X1 Pro

---

FAQs About 3 in 1 Laser Machines

What is the typical lifespan of a fiber laser source in a 3 in 1 machine?

Fiber laser sources are designed for extended operational life, typically rated for up to 100,000 hours—lasting roughly three times longer than other laser solutions. This far outlasts consumable-based systems and means the laser source itself rarely requires replacement during normal use.

Can a 3 in 1 laser machine weld aluminum without specialized training?

Yes, modern 3 in 1 laser systems include presets specifically for aluminum that automatically adjust parameters to account for the metal's reflectivity and thermal properties. You select the material, and the machine handles the rest.

What electrical requirements does a 3 in 1 laser welder need?

Most professional 3 in 1 laser systems require a dedicated 220V industrial power circuit. Specific requirements vary by wattage and model, so check the specifications before installation.

What routine maintenance does a 3 in 1 laser machine require?

Regular maintenance includes replacing the protective lens when it becomes contaminated, keeping the cooling system clean, and periodically inspecting the fiber optic cable and handpiece. Most maintenance tasks are straightforward and don't require specialized technicians.

Is a 3 in 1 laser safe to operate in an enclosed workshop?

Yes, it's safe when operated with proper ventilation for fumes, appropriate laser safety eyewear for everyone in the area, and a designated laser operating area with controlled access.

What warranty coverage is standard for 3 in 1 laser welding machines?

High-quality manufacturers typically offer at least one year of warranty for the entire machine and two years of warranty for the core laser light source. Xlaserlab provides one year warranty and offers technical support both before and after purchasing.
