3D Laser Engraving: Technology, Machines & Applications

Want to turn your design into a precise, functional, and quality 3D engraving? Its not a big deal anymore! 3D laser engraving helps you create premium, detailed designs on different types of materials. But the point is that you have to choose the right settings and materials. Yes, even a small mistake can ruin the whole game.

In this guide, we will learn 3D engraving step by step, the process, the best machine, and tips to get flawless engraving results. Just keep reading!

What is 3D Laser Engraving?

3D laser engraving is an advanced technique in the engraving field. It creates designs in the inner layer of the material surface. Unlike other engravings, the design is not just a flat surface. It’s a multi-layered design that looks original.

Actually, a focused laser beam hits the material at specific tiny points. These points are placed in a very organized way. Also, they are placed very close to each other. When they combine, you see a full 3D image. The laser beam works in a manner that creates a clear and sharp design consistently.

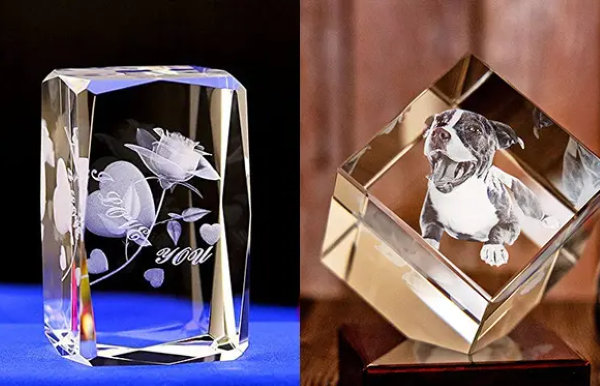

In crystal engraving, the laser beam creates tiny dots inside the upper surface without affecting the outside. It makes such a design that looks real. It feels like the design is floating inside the crystal. This type of engraving is common for personalized gifts and awards.

If we talk about wood or metal, 3D engraving works on the. The laser beam creates tiny spots and forms a 3D design on the material surface. It can also create curved or raised designs very well. This kind of engraving is also called relief engraving.

Well, one thing that needs to be mentioned here is that the 3D Laser engraving depends on the digital design. When you upload your design, the machine reads it. It converts the design into thousands of tiny spots.

Well, the method is popular as it offers a premium look to the piece. You get a clean and precise piece without directly touching the material. So, it is perfect for gifts, art, and industrial work.

How Does 3D Laser Engraving Work?

3D laser engraving is a very interesting process; it creates a detailed image with tiny points. In this section, we will cover how the process happens step-by-step.

Step 1: Create a 3D Design

The 3D laser engraving process starts with a 3D design. You can think of any photo, text, or any custom design. Then just convert it into a 3D digital model. Special software reads this design and converts it into small points that the laser machine can read. So, the design is the digital map that tells exactly where to mark a point.

Step 2: Prepare the Laser Machine

Once the design is ready, set the laser machine up. Actually machine reads the file and then calculates the position of each point accurately. To ensure high accuracy, you adjust the alignment and focus of the machine. If you prepare the best laser engraving machine well, you can get sharp and clear results.

Step 3

Engraving Inside the Material

The laser head releases small pulses of laser energy, which create small dots or micro-cracks. These cracks are inside the material; the outer surface stays smooth.

Surface Engraving

From the surface of the metals, wood, or acrylic, the laser beam removes the material layer by layer. It creates shapes, depth, and gives a carved or raised 3D design.

Step 4: Test Runs

Before final engraving, run some tests to ensure the settings are correct. It makes you confident in your work.

Step 5: Final Touches

After engraving, clean the design with a dry cloth or brush and remove any residue to reveal a clear and sharp 3D design.

Types of 3D Laser Engraving Machines

When you know how a 3D laser engraving machine works, it's better for you to understand different types of lasers. You know, each machine has its own specific purpose. So, if you know about different machines, you can choose the suitable one for your project.

3D Laser Crystal Engraving Machines

These machines are specifically designed for glass and crystals. Basically, a laser creates ting points beneath the surface without affecting the upper surface. As a result, it creates a floating 3D image of the design. These machines are commonly used for personalized gifts, decorative pieces, and awards.

Fiber Laser Machines

These lasers are mostly used for metals. It remove sthe material layer by layer and creates a detailed 3D design. These machines are precise and useful for metal art, jewelry, and industrial parts. They offer durable and clean results every time.

CO₂ Laser Machines

For non-metal engraving, CO₂ lasers are best. You can engrave wood, acrylic, or some kind of plastic with it. These lasers can do basic relief engraving. It is worth mentioning that these asers are not suitable for crystal or metal, but they are best for decorative items and creative designs.

Materials Used in 3D Laser Engraving

Before you start engraving, you need to understand the materials you can use for 3D laser engraving. You know, each material has its own properties due to which it reacts differently to the laser. Let’s discuss the most commonly used materials for 3D laser engraving.

• Crystal and Glass

Crystal and glass are the most popular materials for 3D laser engraving. You can engrave gifts and awards. The laser beam creates ting points inside these materials and produces a clear, floating image without disturbing the outer surface. Well, it offers an elegant and premium look.

• Metals

Metal are anthe rpopular aterial for 3D laser engraving. For example, stainless steel, brass, and aluminium are used for this purpose. The laser creates marks on the surface with small laser pulses and produces detailed 3D designs.

• Acrylic and Plastics

Acrylic and plastics are considered ideal materials for decorative items and craetve art work. CO₂ lasers work best on these materials. These materials are often used to engrave signage, awards, and artistic pieces.

• Wood and Stone

Wood and stone are also common for laser engraving. They offer a rustic and natural look. That’s why they are used for decorative projects and creative art.

Types of 3D Laser Engraving

Each type of laser engraving creates a unique effect and suits a specific type of project. Have a look;

3D Crystal Interior Engraving

This engraving is used to produce the design inside the material. Glass and crystal are mostly used for this purpose. It creates ting points in the material without touching the upper surface of the material. As a result, you see a floating image inside the crystal.

Relief Engraving

This engraving is best for metals, wood, acrylic, and stone. The laser removes the material layer by layer and craetes carved or raised 3D design. This type of 3D engraving is used for signage, artistic projects, and industrial marking.

Surface 3D Engraving

In this process, the laser adds a texture or depth to the flat surface. It changes the height of certain areas to make it look more realistic.

Multi-Layered 3D Engraving

In this method, multiple layers of material are engraved to make a complex 3D design. This method is used for intricate patterns, portraits, and detailed designs that need precision and depth.

Applications of 3D Laser Engraving

Okay, now you know how 3D engraving works, and which method is best for your project.

This technology is versatile, and you can apply it to art, gifts, industrial parts, and more. Let’s discuss the main applications of a 3D laser engraving.

Personalized Gifts and Awards

You can use it to crate personlized gifts and awards. If you want to create a floating name, logo, or image, use glass or crystal. It makes them a perfect wedding gift, corporate award, and special present.

Jewelry and Design Work

Fiber laser engraving machines allow you to create detailed engraving designs on jewelry. You can engrave patterns, custom designs, and initials. It makes sure high-quality results that last longer.

Industrial Marking and Parts

3D engraving is also used to mark tools, mark parts, and equipment. Engraving on hard material helps you identify the piece easily. The marks are permanent, so they are perfect for industrial needs.

Art and Decoration

Artists use 3D laser engraving to create designs on acrylic, wood, or metal. The technique allows complex designs and adds detail to your work. Well, layered patterns, reliefs, and crystal images make the final design visually more appealing.

Advantages of 3D Laser Engraving

As 3D laser engraving is being used for a lot of applications, it shows that it will offer a lot of benefits. In this section, we will cover the most common benefits of 3D laser engraving. Have a look:

• High Precision: 3D laser engraving offers extreme detail to your work. Whether you want to create logos, a photo, or intricate works with high accuracy. This precision ensures your design looks professional.

• Works on Many Materials: The versatility of laser engraving is another plus point. You can use it on glass, crystal, wood, or acrylic. It allows you to engrave different products with the same accuracy.

• Non-Contact Process: As the laser does not touch the material, it reduces the risk of damage. It preserves the material surface and prevents deformation or scratches.

Conclusion

Okay, so 3D laser engraving is a good way to create long-lasting, detailed designs on different types of metals. Now, you know how 3D laser engraving works, what suitable material, tips, and how you can get the best results.

If you want to buy a high-quality 3D laser engraver, you can choose the E3 UV laser engraver from XLaserlab. It is a top-notch laser engraving machine that offers professional results for both beginners and experienced artists. So, don’t delay you porjects anymore. Visit the XLaserlab website today!
