Can the X1 Pro Weld Underwater? Tested Depth, Materials, and Safety Limits

Yes. The X1 Pro can perform laser welding underwater in its tested configuration, but it is a shallow, controlled repair capability, not a deep-water diving system. Its verified limits are about 100 mm of immersion in fresh water, stainless steel or carbon steel up to 3 mm, and argon or nitrogen shielding gas. Those limits matter more than the word “underwater.”

What the X1 Pro’s Underwater Welding Setup Actually Involves

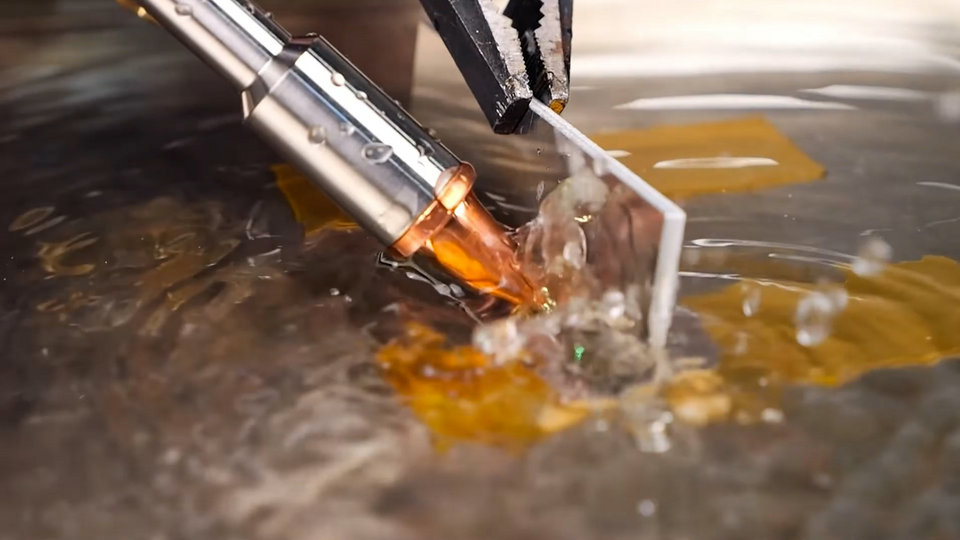

The X1 Pro underwater laser welding machine setup uses a specialized submerged nozzle and a 700W fiber laser source, with the head seated against the metal before it can fire. It is a specific X1 Pro configuration. It does not mean every handheld laser welder underwater can perform the same work.

The tested limits are deliberately narrow:

Fresh water is the preferred environment because prolonged salt-water exposure can corrode the machine’s metal components. A shop assessing laser welding underwater should treat salt water as a limitation that needs a separate maintenance and risk decision, not as an interchangeable operating condition.

The X1 Pro’s physical contact trigger is also part of this setup. The laser fires only after the head confirms contact with the workpiece. This feature does not replace a controlled work area, trained operators, or a job-specific safety plan.

How the X1 Pro Compares to Traditional Wet Welding Underwater

The X1 Pro should be viewed as a controlled shallow-repair option, not a blanket replacement for traditional wet welding. Conventional wet welding procedures are built around arc equipment, qualified personnel, and the specific marine structure being repaired. The X1 Pro uses a contact-seated laser head and shielding gas instead of an exposed welding arc.

For a small repair team, the practical difference is process control. A compact head can be placed directly on a prepared, accessible joint within the tested depth limit. The operator still needs a clean joint, stable positioning, suitable gas delivery, and a repair method approved for the structure. Murky water, a moving vessel, poor access, or a joint outside the tested material and thickness range can remove any advantage.

Laser welding underwater also does not erase regulatory or qualification requirements. In the United States, commercial diving work is subject to workplace rules that cover planning, equipment, and personnel. Review the applicable OSHA commercial diving requirements before scheduling a submerged repair job.

Who Actually Needs the X1 Pro’s Underwater Welding Capability

This capability is most useful for a small marine repair shop that routinely handles shallow, accessible steel repairs at docks, piers, or boat-service locations. It is relevant when moving the part or lowering the water level would add major delay, yet the repair point stays within the X1 Pro’s tested immersion depth.

Examples that may fit after engineering and safety review include:

• A shallow stainless or carbon-steel fixture repair at a dock edge.
• A localized repair on accessible marine hardware near the waterline.
• Dock and boat repair welding where the prepared joint can remain within about 100 mm of immersion.

Routine deck work, trailer repairs, and above-water hull hardware repairs do not need the underwater mode. In those cases, use the X1 Pro’s standard welding setup in a controlled area. A small shop should buy or deploy this capability only when shallow submerged repairs are a regular part of its job mix.

Setting Up for an Underwater Repair Job With the X1 Pro

Set the job up around the tested limits before bringing the X1 Pro to the water. The important action is to confirm the metal, thickness, immersion depth, water condition, and shielding gas before any weld is attempted.

1. Confirm that the repair is stainless steel or carbon steel and no thicker than 3 mm in the tested area.
2. Measure the planned immersion depth. Keep the submerged nozzle at about 100 mm or less.
3. Use fresh water where possible. Do not assume extended salt-water exposure is suitable.
4. Remove marine growth, loose corrosion, coatings, and contamination from the joint so the head can seat on clean metal.
5. Connect and verify argon or nitrogen shielding gas. Do not substitute an unapproved gas.
6. Secure the workpiece and establish barriers, fume control where applicable, fire prevention, and a clear emergency-stop plan.
7. Seat the head on the workpiece and confirm the contact-triggered interlock before firing.

This sequence keeps the handheld laser welder underwater within its verified use case. It also keeps the operator from treating a submerged joint like an ordinary bench weld.

Safety Considerations Specific to the X1 Pro’s Underwater Welding Mode

Water does not make a Class 4 laser safe. The X1 Pro’s underwater function still requires trained operators, laser-rated eye protection for the wavelength, barriers that control the beam path, reflected-beam management, smoke or fume extraction when the work is above water, and fire-prevention measures around the full repair area.

Contact Control and Reflected Light

The trigger mechanism requires electrical continuity between the welding torch and the metal workpiece before the laser can fire. It is not permission to point the head freely at a wet work area. Polished or wet metal can reflect laser energy, so the crew needs a defined exclusion zone and controls for any possible reflected path.

Electrical and Diving Work Controls

Keep the main unit, power connections, and non-submerged equipment dry and protected. Do not improvise electrical protection or use the machine in rain or high humidity outside the approved underwater nozzle setup. If the work requires a person to enter the water, use a qualified commercial diving team and the applicable job rules. The 100 mm tested immersion limit is not a certification for deep-water or diver-operated welding.

What the 24/7 Test Actually Means

The X1 Pro was tested to sustain continuous operation on a 24/7 duty cycle while submerged without failure. This is an equipment reliability result under sustained submersion. It does not mean a crew should weld continuously underwater for 24 hours a day, or that any repair can run without normal inspection, rest periods, and safety controls.

For operation details and current manuals, use our X1 Pro support center before assigning a job.

Is the X1 Pro’s Underwater Welding Capability Worth It for a Small Marine Repair Shop

It is worth considering when shallow submerged stainless or carbon-steel repairs occur often enough to affect your schedule and labor costs. For a marina or dock-service team that regularly reaches waterline joints, the tested setup can keep a small repair moving without treating every job as a large industrial project.

It is less valuable for a shop that mainly repairs parts after removal from the water. The X1 Pro’s welding, cleaning, and cutting functions can still serve that shop, but underwater capability alone should not decide the purchase. Match the tool to the jobs you perform most often, then confirm every unusual repair stays inside the tested limits.

Confirm the Repair Conditions Before You Schedule the Work

Treat underwater welding as a narrow capability with clear boundaries. Confirm the 100 mm depth, stainless or carbon-steel material, 3 mm thickness limit, fresh-water condition, shielding gas, and controlled safety setup first. If those conditions match your recurring repair work, the X1 Pro offers a practical shallow-water option alongside its standard weld, clean, and cut functions.

Frequently Asked Questions

Q1: How Deep Can the X1 Pro Operate Underwater?

About 100 mm is the tested immersion depth. That limit describes a shallow submerged setup with the nozzle on the workpiece. It is not a rating for deep-water repairs, diver-operated welding, or general use at any underwater depth.

Q2: Does the X1 Pro Use a Different Laser Head for Underwater Welding Than for Surface Welding?

The underwater work uses the X1 Pro’s specialized submerged nozzle configuration. Use the configuration and procedures specified for the job, rather than modifying a standard surface-welding setup. Contact our support team if the needed configuration or repair condition is unclear.

Q3: Is the X1 Pro Safe to Use for Underwater Welding in Salt Water?

Fresh water is the recommended environment. Prolonged salt-water exposure can corrode the machine’s metal components, so salt-water jobs need a separate assessment, protective measures, and maintenance plan. Do not treat salt water as a routine equivalent to fresh water.

Q4: Is a Diving Certification Required to Operate the X1 Pro Underwater?

If a person must enter the water for commercial work, use qualified personnel and follow applicable commercial diving requirements. The X1 Pro’s shallow-nozzle capability does not grant diving qualifications or replace the safety rules that govern submerged work.

Q5: Does Underwater Use Affect the X1 Pro’s Standard Warranty?

The answer depends on the current warranty terms and the exact setup used. Confirm coverage with our support team before a salt-water or unusual underwater job. Keep records of the nozzle configuration, water condition, and maintenance performed after use.
