Metal Engraving Machines for Small Shops: Fiber Laser vs Rotary vs Dot Peen

A fiber laser engraver marks metal fastest and with the most detail for logos, serial numbers, and barcodes, a rotary engraver cuts a deeper physical groove suited to nameplates and hand-style lettering, and dot peen marking dents a permanent, low-cost mark built for harsh industrial surfaces. Most small shops doing varied metal work get the most use out of a fiber laser engraver; the other two fit narrower, specific jobs.

How Fiber Laser, Rotary, and Dot Peen Engraving Actually Work

Each method marks metal through a different physical process, and that process is what decides its speed, depth, and the level of detail it can hold.

Fiber Laser Marking

A fiber laser directs a focused beam of light at the metal surface, which either discolors the top layer through oxidation or vaporizes a thin layer to create the mark. No part of the tool touches the metal, so there’s no mechanical wear on a tip or bit, and the beam can be aimed anywhere within its work area without repositioning hardware.

Rotary Engraving

A rotary engraver uses a spinning cutting bit, guided by a motorized arm, to physically carve a groove into the metal. It’s a mechanical process closer to a tiny CNC router than to a laser marker for metal, and the bit itself wears down over time and needs replacing.

Dot Peen Marking

A dot peen marker uses a hard carbide or diamond-tipped stylus that strikes the metal repeatedly, leaving a series of small indented dots that form text, numbers, or a simple graphic. The stylus impacts the surface rather than cutting or burning it, which makes the mark physically deep but visually coarser than a laser or rotary line.

Which Method Marks Which Metals Best

Metal type narrows the choice quickly, since each method reacts differently depending on hardness and surface finish.

A fiber laser engraver works across the widest range: stainless steel, aluminum, brass, titanium, and coated or anodized metals all mark well, since the process relies on light interacting with the surface rather than physically penetrating it. Rotary engraving handles softer and mid-hardness metals comfortably, aluminum, brass, and mild steel among them, but struggles on very hard or hardened surfaces where the cutting bit wears quickly. Dot peen marking tolerates the widest range of surface conditions, including dirty, oily, or curved metal, but doesn’t hold fine detail the way the other two do.

Speed and Throughput on a Small Batch

A fiber laser engraver is the fastest of the three by a wide margin on anything beyond a handful of pieces, since the beam moves without mechanical resistance and doesn’t need to reposition a physical tool between marks. A design that takes a few seconds on a fiber laser can take several times longer on a rotary engraver, where the spinning bit has to physically travel the same path at a mechanically limited speed.

Dot peen sits in the middle for simple marks like a serial number or date code, since each dot strikes quickly, but it slows down noticeably on denser designs or logos with a lot of detail, since more dots mean more individual strikes.

For a one-or-two-person shop marking a batch of parts between other jobs, that speed gap adds up fast. A portable laser marking machine that finishes a tray of parts in the time a rotary engraver finishes two or three tends to become the default tool for anything beyond an occasional one-off mark.

Mark Durability and Depth

Dot peen marking generally produces the most physically durable mark of the three, since the indentation goes deep enough to survive grinding, sandblasting, and heavy surface wear that would erase a shallower mark. That’s part of why it stays common on parts headed for rough handling or outdoor exposure.

Rotary engraving comes next in physical depth, cutting a groove that holds up to normal handling and moderate abrasion, though not as deep as a dot peen impression by default.

Fiber laser marks vary more by setting. A standard oxidation mark sits at the surface and holds up to normal wear, while a deeper laser-etched mark, run with more passes or higher power, approaches the durability of rotary engraving without needing a mechanical bit at all.

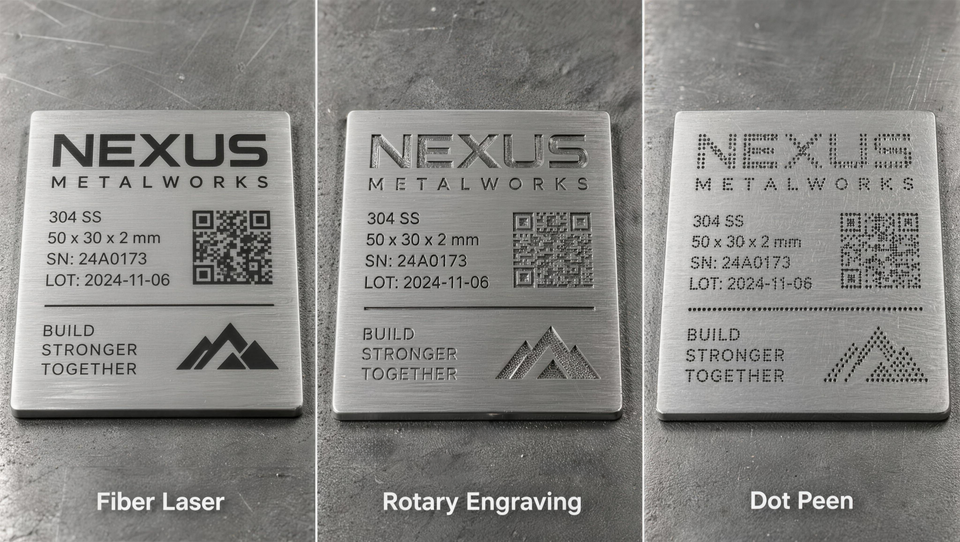

Precision and Detail for Logos, Barcodes, Serial Numbers, and Fine Text

Fine detail is where fiber laser marking pulls ahead clearly. A fiber laser engraver holds crisp lines fine enough for small logos, dense barcodes, and QR codes that need to scan reliably, since the beam spot size is small and doesn’t wear or dull the way a physical bit does.

Rotary engraving holds respectable detail for lettering and simple graphics but starts to lose sharpness on very small text or intricate logos, since the cutting bit has a physical minimum width. Dot peen is the least precise of the three for fine detail, since the mark is built from discrete dots rather than a continuous line, which makes it a poor fit for barcodes or small multi-line text but perfectly fine for a part number or asset tag meant to be read, not scanned.

Upfront Cost and Maintenance Across the Three Methods

Dot peen machines typically carry the lowest upfront cost of the three and need the least ongoing maintenance, since the striking stylus is a simple mechanical part with few points of failure. Rotary engravers cost more upfront and require replacing cutting bits as they dull, plus periodic mechanical upkeep on the moving arm.

Fiber laser engravers sit at a higher upfront price point but carry the lowest ongoing consumable cost of the three, since there’s no bit or stylus to wear out and replace. For a shop marking metal regularly rather than occasionally, that lower cost per mark over time tends to offset the higher purchase price within the first year or two of steady use.

Match the Machine to What You’re Actually Marking

Fiber laser engraving covers the broadest range of metals, speeds, and detail levels, which is why it’s the default pick for a small shop marking varied parts. Rotary engraving still makes sense for shops set up around hand-style lettering on softer metals, and dot peen remains the practical choice for rough, outdoor, or heavily handled parts where physical depth matters more than fine detail.

FAQ about Small-Shop Metal Engraving Machines

Q1: Can a fiber laser engraver mark curved or cylindrical metal parts like pipes and rods?

Yes, with the right fixture. A rotary attachment holds and rotates the part while the laser marks it, which lets a fiber laser engraver handle round stock the same way it handles flat parts.

Q2: Does dot peen marking damage thin-walled or delicate metal parts?

It can, on very thin material. The striking action that makes dot peen durable also puts physical stress on the part, so thin-walled tubing or delicate components sometimes deform slightly under repeated impacts, where a laser mark wouldn’t add any mechanical stress at all.

Q3: How often does a rotary engraver’s cutting bit need to be replaced?

It depends heavily on the metal being cut and how often the machine runs, but a bit used regularly on harder metals wears out faster than one used mostly on aluminum or brass, so shops running daily rotary work typically keep spares on hand.

Q4: Is dot peen marking readable by barcode scanners the way laser marks are?

Generally not for dense codes. The dot-based mark works fine for a simple 1D barcode or a large data matrix code, but it struggles with small, high-density codes where a fiber laser’s continuous line holds far better scan reliability.

Q5: Which of the three methods is quietest to run in a small shared workspace?

Fiber laser marking is the quietest by a clear margin, since there’s no mechanical contact with the part. Rotary engraving produces cutting noise similar to a small rotary tool, and dot peen produces a repetitive tapping sound that carries more in a shared space.
