Conduction welding uses a laser to melt the surface of the metal to create a shallow, wide weld. Keyhole welding, on the other hand, uses higher energy lasers to create deep, narrow welds by creating tiny holes in the metal. Both methods fall under the category of laser welding, which is widely used in aerospace, medical, energy and industrial applications, helping many industries to join metals. They are also used in electronics and semiconductor manufacturing.

Laser Welding Modes

Laser welding lets you join metals very accurately. A focused laser beam melts and joins metal surfaces. There are two main ways to do this: conduction welding and keyhole welding. Each way changes how the weld looks and how deep it goes.

Conduction Welding

Conduction welding is good for smooth and shallow welds. The laser heats the top of the metal. The heat spreads out through the metal. This makes a wide weld that is not very deep. People typically come to weld thin parts or workpieces where an aesthetically pleasing weld is desired.

Here is a table that compares conduction welding and keyhole welding:

Welding Mode	Energy Density (MW/cm²)	Characteristics
Conduction Welding	~0.5	Shallow and wide weld, heat moves by conduction, good for nice-looking welds.

Keyhole Welding

Keyhole welding uses much more energy. The laser is so strong it makes a small hole in the metal. This helps make welds that are deep and narrow. Suitable for thick metal or situations requiring a strong weld.

Keyhole welding:

Welding Mode	Energy Density (MW/cm²)	Characteristics
Keyhole Welding	>1.5	Deep and narrow welds, fast welding, makes a keyhole for better laser use.

How Modes Transition

You can change from conduction welding to keyhole welding by changing the laser settings. The switch does not happen at one exact point. It depends on many things:

• Power density changes how deep the laser goes.
• Beam diameter changes how the energy spreads out.
• Scanning speed changes how fast the heat moves.
• Recoil pressure pushes the melted metal and helps make the keyhole.
• Melt flow dynamics help shape the hole and the weld.
• Keyhole stability depends on the hole size and how steady the laser is.

You can change these things to get the weld you want. Laser welding lets you pick the best way for your project.

Conduction Welding Details

How It Works

Conduction welding uses a laser to join metals. The laser heats the top of the metal. The heat moves down into the metal. Only a thin layer melts. The weld pool gets very hot, close to melting. For example:

• Carbon steels melt at about 2500°F.
• Most weld pools reach around 2000°F.
• The temperature changes with metal and laser settings.

You can change how deep and wide the weld is. You do this by changing the laser power and how long you use it. You use less power than keyhole welding. The laser does not go through the metal. It makes a smooth and shallow weld.

Characteristics

Conduction welding makes a weld that is wider than deep. The weld bead looks smooth and flat. This type is good for thin materials or nice-looking welds. Here is a table with weld depth and width for stainless steel:

Weld Depth (mm)	Weld Width (mm)
0.25	0.1
0.33	0.115
0.194	0.09
Average Depth	0.2 - 0.3
Minimum Width	< 0.075

You see that conduction welding makes a shallow weld. The weld is usually wider than deep. This helps you not burn through thin metal.

You can pick different lasers and power for different metals and thicknesses. Here is a table to help you choose:

Material	Thickness Range	Recommended Laser Power	Common Applications
Carbon Steel	Up to 2mm	1000W	Automotive, Construction
Up to 8mm	2000W	Automotive, Construction
Stainless Steel	Up to 2mm	1000W	Food Processing, Medical Devices
Up to 5mm	1500W	Food Processing, Medical Devices
Up to 8mm	2000W	Food Processing, Medical Devices
Aluminum	Up to 2mm	1000W to 1500W	Aerospace, Transportation
Up to 3.5mm	2000W	Aerospace, Transportation
Up to 5mm	3000W	Aerospace, Transportation
Copper	Up to 1mm	1000W	Electrical, Plumbing
Up to 3mm	2000W	Electrical, Plumbing
Titanium	Up to 2mm	1000W	Aerospace, Medical
Up to 5mm	2000W	Aerospace, Medical
Thin Materials	0.3mm to 1mm	300W to 1000W	General Welding
1mm to 2mm	1000W	General Welding
Medium Thickness	2mm to 5mm	1000W to 1500W	General Welding
Thick Materials	5mm to 8mm	2000W to 3000W	General Welding
Over 8mm	Advanced Techniques	General Welding

You can also look at a chart for laser power settings for different metals and thicknesses:

Applications

Conduction welding is used in many industries. It works best for thin parts and when you want a nice finish. Here are some common uses:

Application Area	Description
Joining thin materials	Used for joining sheets with low material thickness, ensuring quick and low distortion welding.
Device housings	Corner welds on visible surfaces of device housings, providing aesthetic and functional benefits.
Electronics	Applications in electronics where smooth, pore-free seams are essential.

You often use conduction welding for copper and aluminum. These metals are used in electronics because they carry electricity well. You also see conduction welding in aerospace, medical devices, and food processing. You can join thin sheets fast and with little bending.

Pros and Cons

Conduction welding has many good points but also some limits. Here is a quick look:

Aspect	Conduction Welding	Keyhole Welding
Weld Penetration	Typically wider than deep, controlled by pulse length	Deeper penetration
Heat Input Control	Precise control of heat input, minimizes distortion	Less control over heat input
Quality of Weld	Enhances overall quality and reduces defects	Higher risk of defects
Process Type	Utilizes pulsed laser welding for controlled melting	Continuous wave laser for deep welds

You can control the heat very well. This means less bending and a better-looking weld. The process lowers the chance of gas bubbles and other problems. You often do not need extra finishing work. The welds look smooth and clean.

• You can control the weld shape well.
• You can join thin and delicate parts.
• You lower the chance of problems like bubbles or cracks.
• You save time on finishing.

But conduction welding does not work well for thick metal. The weld does not go deep. If you need a strong, deep weld, use keyhole welding instead.

Keyhole Welding Details

How It Works

Keyhole welding uses a powerful laser to melt and vaporize metal. The laser beam focuses on a small spot. This creates a tiny hole, called a keyhole, in the metal. The keyhole lets the laser energy go deep into the material. You get a weld that is much deeper than it is wide.

• The temperature near the keyhole wall can reach about 3000 K (about 4920°F). Sometimes, it even goes above the vaporization point of the metal.
• The pressure inside the keyhole is very high. This pressure helps keep the hole open while the laser moves along the joint.
• The laser power and how fast you move the laser both change how the keyhole forms and how deep the weld goes.

The vapor cavity, or keyhole, is the secret to deep penetration. The laser energy hits the front wall of the keyhole first. This makes the metal melt and vaporize quickly. The molten metal flows around the keyhole because of surface tension. The size of the keyhole changes as the pressure inside goes up and down.

Key Findings	Description
Keyhole Formation	The depth of the keyhole depends on how much laser energy hits the front wall.
Molten Pool Dynamics	Surface tension moves the melted metal around the keyhole.
Pressure and Energy	Changes in pressure inside the keyhole affect its size and the weld quality.

Characteristics

Keyhole welding gives you a deep and narrow weld. The aspect ratio, which is the depth compared to the width, usually ranges from 0.5 to 2.5. This depends on how fast you move the laser and how much power you use.

• You can weld thick materials, sometimes up to 25mm.
• The weld bead is narrow and goes deep into the metal.
• You get strong joints that can handle a lot of stress.

You may see some problems if the keyhole is not stable. If the keyhole wobbles or closes too fast, gas bubbles can get trapped. These bubbles turn into pores, which are tiny holes inside the weld. Pores can make the weld weaker.

• Porosityis a big problem in high-power laser welding. It can lower the strength of the weld.
• If the keyhole is not steady, you may get more pores.
• The type of shielding gas matters. Argoncan let bubbles form, but nitrogen helps keep the keyhole stable and reduces pores.

Applications

You can use keyhole welding for many jobs that need strong, deep welds. This method works best for thick metals and parts that must hold up under stress.

Material Type	Thickness Range
Stainless Steel	Up to 12mm
Titanium Alloys	Up to 16mm

Here are some common uses for keyhole welding:

Sector	Application Description
Medical Devices	Used for implantable devices and surgical tools. It keeps heat low to protect the metal.
Energy	Used in pipelines and power plants. It makes strong joints for systems under pressure.
Electronics	Used for small parts and seals. It keeps heat damage low and makes airtight joints.

You also find keyhole welding in aerospace, shipbuilding, and automotive work. It helps you join thick plates and make parts that must last a long time.

Pros and Cons

Keyhole welding gives you many benefits, but you should know about the risks.

Pros:

• You can weld thick materials with deep penetration.
• The welds are strong and narrow.
• You can use this method for high-strength and structural parts.
• The process works well for automated systems.

Cons:

• You can only use it in flat, horizontal, or vertical up positions.
• The process is sensitive to changes in settings.
• You need automated equipment for best results.
• If the keyhole is not stable, you may get pores that weaken the weld.

Comparison

Process Differences

Conduction welding and keyhole welding work in different ways. Conduction welding heats just the top of the metal. The laser melts a thin layer, so the weld is shallow. Keyhole welding uses much more energy. The laser melts and turns the metal into vapor. This makes a deep hole called a keyhole. The keyhole lets you weld deeper into the metal.

Here is a table that shows how the weld bead shapes and penetration profiles are not the same:

Welding Method	Weld Bead Shape	Penetration Profile
Keyhole Welding	Narrow, high aspect ratio	Deep, cylindrical cavity
Conduction Welding	Wider weld beads	Shallow penetration

Welding speeds and how deep the weld goes are also different:

Welding Mode	Penetration Depth	Welding Speed
Conduction Mode	Shallow	Lower
Keyhole Mode	Deep	Higher

Results and Applications

Conduction welding makes a round weld bead. It works best for thin metals and small parts. You get a smooth look and less bending. Keyhole welding makes a deep, skinny weld. These welds are strong and can take a lot of force.

• In conduction welding, the laser heats the surface but does not boil it. The weld is shallow.
• In keyhole welding, the laser boils the metal. This forms a keyhole and a deeper weld.
• Keyhole welds can be almost five times stronger than conduction welds.
• A keyhole weld can reach a tensile strength of 187.86 MPa and stretch by 24.76%.

In car factories, conduction welding joins surfaces with little depth. Keyhole welding is used on production lines, like making battery links for electric cars.

Welding Type	Characteristics	Typical Use Cases
Conduction Welding	Joins materials at the surface; softer method	Surface joining, thin parts
Keyhole Welding	Penetrates deep; faster method	Battery connections, thick parts, production lines

Choosing a Method

You should think about a few things before picking a welding method. Metal thickness is important. Conduction welding is best for plates under 1mm thick. Keyhole welding works better for plates over 3mm thick. The way the joint is made also matters. Conduction welding is good for lap or butt joints with small spaces. Keyhole welding can handle bigger gaps or tricky shapes.

Factor	Conduction Welding	Keyhole Welding
Thickness of Metal	Best for plates less than 1mm	Suitable for plates thicker than 3mm
Joint Design	Works well with small gaps	Better for large gaps or complex designs
Application Requirements	Low distortion, smooth finish	Strong, deep welds for high-stress jobs
Surface Conditions	Forgiving of irregularities	Sensitive to contaminants and irregularities

Both methods need good fit and joint prep. You must be very careful with the position, especially for butt joints. Conduction welding is great for small, delicate parts and when you want little heat damage. Keyhole welding is best for deep, strong welds. Always pick the method that fits your project.

You now understand how conduction welding and keyhole welding are different. The table below explains what happens with each method:

Welding Mode	Laser Power Threshold	Resulting Effect
Conduction Welding	0.5 MW/cm2	Less deep welds, but wider shape
Keyhole Welding	1.5 MW/cm2	Deeper welds, but more narrow

Use conduction welding when you have thin pieces or need to join tiny parts, like in electronics or medical tools. Pick keyhole welding for thick, strong metals, such as in cars or airplanes.

FAQs



Laser welding has made a giant leap forward in joining materials. If the light used is coherent, monochromatic and collimated, the precision and quality of the weld surpasses any other type of welding. Fusion welding at such a high level has become an indispensable technology in a wide range of industries, with applications ranging from precision equipment to automotive body building.

High welding speeds, low heat distortion and strong automation potential put this fusion welding technology far ahead of conventional methods. Solutions such as integrated laser welding and handheld laser welding, for example, prove that this technology is practical and efficient enough to realize different functions in one system at the same time! This guide will take an in-depth look at the fundamentals, equipment configurations, application scenarios and key influencing factors of this transformative technology.

What Is Laser Welding?

At its core,laser welding is a process that uses a highly concentrated beam of light to join materials. The term LASER is an acronym for "Light Amplification by Stimulated Emission of Radiation." When this focused energy impinges upon a material's surface, it rapidly heats, melts, and fuses the parent materials together. Upon cooling, a strong metallurgical bond is formed, creating a weld seam.

Its operation is defined by several key features that set it apart from conventional welding techniques:

• High Energy Density: The laser beam can be focused to an exceptionally small spot size, concentrating immense power into a minuscule area. This allows for deep penetration and fast processing speeds with minimal energy wasted on heating the surrounding material.
• Low Heat Input: Because the energy is so precisely focused and the welding process is so rapid, the overall heat introduced into the workpiece is remarkably low. This minimizes the heat-affected zone (HAZ), reducing thermal distortion, shrinkage, and stress—critical for maintaining the integrity of sensitive components.
• High Speed: The combination of high power density and precision enables welding speeds that are orders of magnitude faster than methods like TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding, drastically increasing throughput.
• Pinpoint Precision: Laser beams can be controlled with extraordinary accuracy, allowing for the creation of minute, intricate, and aesthetically pleasing welds, often in locations inaccessible to other welding tools.

How Laser Welding Works

Schematic Diagram of Laser Welding Principle

The combination of optics, thermodynamics and materials science forms the mechanism of the complex process of laser welding. The welding process begins when the laser beam strikes the joining line between two or more workpieces. The material absorbs energy and its temperature rises until it exceeds the melting point, forming a molten pool.

There are two modes of this heat transfer:

1. Conduction Mode: This mode is common at lower power densities. The laser energy is absorbed at the surface of the material and the heat is then transferred to the interior of the workpiece by thermal conduction. The resulting weld seam is usually wider and shallower. It is therefore ideal for thinner materials or where a smooth, airtight seal is required without deep penetration.
2. Keyhole Mode (Deep Penetration): At higher power densities, the material at the focal point of the beam melts and vaporizes. The pressure of the vapor causes the molten material to move. This also causes it to drill a deep, narrow cavity. This is called a "keyhole". This "keyhole" acts as a conduit to allow the laser energy to penetrate deep inside the material. As the beam moves along the joint, the molten metal flows around the keyhole and solidifies behind it, creating a deep, narrow weld with a high aspect ratio.

The entire melting and solidification cycle is very fast. In order to protect the molten weld pool from atmospheric contamination (e.g. oxidation and nitriding), a continuous supply of inert shielding gas (e.g. argon or helium) is required to the area. In addition, precise and robust fixturing is essential to ensure accurate alignment of the workpiece, as this process is less tolerant of substandard assemblies than many arc welding methods.

Process Types & Variations

Laser welding is not a monolithic technology; it encompasses a variety of techniques and equipment for specific applications.

By Mode of Operation

Conduction Welding: As mentioned earlier, this is a surface preparation process used to create smooth, aesthetic welds on thin plates, such as in the manufacture of appliance housings or medical device housings.

Keyhole Welding: The main mode of operation in structural applications, used to join thicker materials in automotive, aerospace, and heavy industry, where deep, strong welds are essential.

By Laser Source

Different types of laser sources determine the performance and application scope of welding systems. Each laser source possesses unique advantages and suitable scenarios, providing optimal choices for diverse materials and process requirements.

• Fiber Lasers: The current industry standard, known for their high efficiency, excellent beam quality, low maintenance and compact size. They are versatile and suitable for most metals.
• Disk Lasers: Offer similar benefits to fiber lasers, but with a slightly different construction, providing high power and good beam quality.
• Nd:YAG Lasers: This is an older solid-state laser technology, usually lamp-pumped. Although less efficient, it can be pulsed to provide high peak power and is suitable for spot welding.
• CO₂ Lasers: A gas laser that was once the workhorse of the industry. It specializes in welding non-metals and very thick metals, but has a long wavelength that is not easily absorbed by some materials.
• Diode Lasers: Lower beam quality but high efficiency, commonly used for conduction mode welding, cladding and heat treating.

By Operational Method

Laser welding not only varies by light source type, but its operational methods also influence process performance. Below are the different operational approaches:

• Continuous Wave (CW) vs. Pulsed: Continuous Wave lasers provide a constant, uninterrupted beam of energy ideal for fast, deep penetration welding. Pulsed lasers deliver energy in short, high power bursts for finer control of heat input, ideal for fine, heat sensitive materials or spot welding.
• Remote/Scanner Welding: Utilizes a system of fast-moving mirrors (galvanometer scanners) to direct a laser beam at the workpiece from a distance and at amazing speeds. This “welding on the fly” technology is a productivity revolution for applications such as automotive seats or battery housings.
• Hybrid Laser Arc Welding (HLAW): This process combines a laser with a conventional arc welding process such as MIG or TIG. The laser creates deep locking holes, while the arc provides filler metal and helps bridge large gaps, combining the speed of laser welding with the tolerances of arc welding.
• Handheld Laser Welding: A recent major innovation, these systems mount a compact fiber laser source on a cart and transmit the beam to a handheld torch via a flexible fiber optic cable. This brings the speed and low-heat benefits of laser technology to manual applications, offering job shops and small-scale production a powerful alternative to tig and argon arc welding.

The Equipment Stack

A complete laser welding system is a synergistic assembly of several high-tech components:

• Laser Source: The heart of the system that generates the laser beam.
• Beam Delivery Optics: A series of lenses, mirrors, and often a fiber optic cable that shapes and transmits the beam from the source to the workpiece.
• Focusing Head/Scanner: The "business end" of the system. A focusing head contains the final lens that concentrates the beam to the desired spot size. A scanner head adds high-speed mirrors for remote welding.
• Motion System (Robot/Gantry): An industrial robot or CNC gantry that manipulates either the welding head or the workpiece to precisely trace the weld joint.
• Wire Feeder: An optional component used in applications where filler material is required to bridge gaps or for metallurgical reasons.
• Shielding Gas Delivery System: Nozzles and regulators that provide a consistent flow of inert gas to protect the weld.
• Fixturing/Tooling: Custom clamps and jigs that hold the parts securely and in the correct position.
• Human-Machine Interface (HMI): The control system and software used by the operator to program the welding parameters and monitor the process.

Materials & Joint Design

Laser welding is suitable for a wide range of metals and plastics, but it demands high precision in joint design and assembly. Proper joint configuration and clean surface preparation are critical to ensuring weld quality.

Suitable Materials

Metals: The process excels on a wide range of metals, including stainless steel, carbon steel, aluminum alloys, titanium and nickel-based superalloys.Its low heat input is especially beneficial for high-strength steels and aluminum - materials that are prone to thermal distortion and cracking using other welding methods.

Plastics: Specific polymers can be joined using a special process called laser transmission welding.In this process, the laser beam penetrates the “transmission layer” (transparent layer) and is absorbed by the “absorption layer” (usually black or colored), melting the interface between the two layers.

Joint Design and Preparation

The success of laser welding depends on careful preparation.Due to the extremely small laser spot, joint fitment is critical.The process requires tight tolerances, and the gap between the parts to be welded needs to be minimized.Common joint designs include butt joints, lap joints and angle joints.Surfaces must be clean and free of contaminants such as oil, rust or paint, which can lead to defective welds.In some cases, filler wires are used - similar to MIG or TIG welding - to accommodate large gaps or to introduce specific alloying elements to enhance the properties of the weld.

Process Parameters & Quality Control

Parameters such as laser power, spot size, and welding speed directly determine the morphology and properties of the weld. Through real-time monitoring and non-destructive testing, defects like porosity and cracks can be effectively avoided, ensuring welding quality.

Key Process Parameters

Laser power: directly affects penetration depth and welding speed.

Spot size: the diameter of the focused beam on the surface of the workpiece; the smaller the spot, the higher the power density and the deeper the penetration.

Welding speed: the rate at which the beam crosses the joint.Need to balance the speed and power to obtain the ideal weld form.

Focal Point Position: The position of the narrowest point of the beam relative to the surface of the material can be adjusted to change the characteristics of the weld.

Pulsed Shaping (for Pulsed lasers): Fine control of the melting and cooling rates by regulating the energy distribution of each laser pulse.

Shielding gas: The type of gas (e.g. argon, nitrogen, helium) and its flow rate affect the stability of the molten pool and the final weld properties.

Common Defects & Quality Assurance

Improper selection of parameters can lead to defects such as porosity (air bubbles remaining in the weld), cracks, spatter and weld instability.To prevent such problems, modern laser welding systems are equipped with advanced quality assurance (QA) tools.These tools include real-time process monitoring via sensors, machine vision systems for joint guidance, weld tracking technology to ensure that the laser is always precisely aligned with the joint, and post-processing non-destructive testing (NDT) methods (such as ultrasonic or X-ray inspection) to verify the integrity of the weld.

Pros and Cons of Laser Welding

Laser welding offers advantages such as high speed, minimal deformation, and high precision, but it requires significant equipment investment and demands strict assembly and operational requirements. While it has a wide range of applications, limitations still exist in cases of large gaps or special environments. For a detailed comparison, please refer to the table below.

Advantages	Limitations
Exceptional Speed & Productivity: Significantly faster than most alternatives.	High Initial Capital Cost: The equipment represents a substantial investment.
Superior Precision & Control: Capable of creating minute and complex welds.	Reflectivity Issues: Highly reflective materials like copper can be difficult to weld.
Low Heat & Distortion: The minimal HAZ preserves material properties.	Strict Fit-Up Requirements: The process is intolerant of large or inconsistent gaps.
Automation-Friendly: Easily integrated with robotics for high-volume production.	Safety Complexity: Requires stringent safety protocols due to light and fume hazards.
Excellent Aesthetics: Produces clean, narrow seams that often need no finishing.	Filler Metal Challenges: While possible, adding filler wire is more complex than in arc welding.

Fields of Application

The unique capabilities of laser welding have made it a cornerstone technology in many fields:

• Automotive & Aerospace: Used to weld body sheet metal, custom blanks, powertrain components, electric vehicle batteries, and lightweight airframe structures.
• Electronics: Indispensable for welding tiny precision components in batteries, sensors and consumer electronics, especially to minimize the effects of heat.
• Medical: Essential in the manufacture of hermetic structures for implantable devices such as pacemakers and defibrillators, as well as in the production of surgical instruments.
• Other applications: A wide variety of applications, ranging from high-value mold repairs, assembly of “white goods” such as washing machines, fine jewelry manufacturing, and joining of plastic parts for consumer products.

Laser Welding vs. Other Methods

The unique advantages of laser welding over conventional joining processes are obvious.

• Comparison with TIG welding: TIG welding produces extremely high-quality welds, but is an extremely slow manual process.Laser welding has a significant speed advantage and, especially under automated conditions, the quality of the weld is comparable to or even better than that of TIG welding.
• vs. MIG welding: MIG welding is fast and suitable for filling large gaps, but produces a lot of heat, distortion and spatter, requiring post-weld cleaning.Laser welding is faster, cleaner, and has a much lower heat input than MIG welding.
• vs. Electron Beam Welding (EBW): EBW's depth of penetration is even greater than that of laser welding, but it has a major drawback: it must be operated in a vacuum chamber, which greatly limits part size and production speed.
• vs. Resistance Spot Welding: The traditional process for joining automotive sheet metal, spot welding creates overlapping joints at specific points.Laser welding creates a continuous, stronger and lighter weld.

The unique benefits of laser welding are its unmatched combination of speed, precision, low distortion, and suitability for automation.

Safety & Automation

The power of laser welding necessitates a rigorous approach to safety and is a prime candidate for automation.

Safety Considerations

Light Hazard: Intense laser light - either direct or reflected - can cause instant and permanent eye damage and severe skin burns.

Fumes and particulate matter: Gasification of metals produces harmful fumes and nanoparticles that must be captured by a fume extraction system.

Personal Protective Equipment (PPE): This is a mandatory requirement.Includes laser protective eyewear for specific laser wavelengths, flame retardant coveralls and gloves.

Interlocks and Hoods: The automated laser unit is housed in a light-proof enclosure with safety interlocks - the laser system is automatically shut down when the door is opened.

Standards: All operations must comply with safety standards such as ANSI Z136.1.

Automation and a Flexible Future

Laser welding and automation are natural partners.The speed advantages of the process can be fully utilized by robots or collaborative robots, which can manipulate the welding head with high repetition accuracy.Machine vision and process monitoring create a closed-loop system that accommodates small deviations and ensures consistent quality.While full automation is suitable for high-volume production, the advent of handheld laser welding brings new flexibility - the shop floor can apply laser technology to a wider range of jobs without the need for complex robot programming.

Cost & Return on Investment (ROI)

When considering laser welding, the initial cost needs to be weighed against the long-term benefits.Although professional laser welding systems have a high upfront investment, the return on investment (ROI) is often impressive, thanks to the following factors:

• Higher productivity: Laser welding is faster than traditional welding methods, meaning more projects can be completed in less time.
• Fewer consumables: No additional filler wire is required for most applications and the amount of shielding gas used is typically lower than with MIG welding - effectively reducing ongoing costs.
• Significant energy efficiency: Despite the power of the laser, the process is so efficient that energy consumption per weld is often lower than with conventional techniques.
• Simplified post-processing: Clean, precise welds often minimize or even eliminate the need for subsequent grinding and polishing.
• Easy to operate: While conventional laser welding requires specialized training, modern systems such as the versatile X-Laser Lab series are equipped with an intuitive interface that makes them easy to operate for individual users and small workshops.

For the individual user, Xlaserlab products incorporate professional-grade laser welding technology into a versatile portable device, including six-in-one solutions for welding, cutting, descaling, CNC retrofitting, weld cleaning, and even underwater welding, to help you achieve clean, long-lasting welds without the costly complexity and difficulty of industrial systems.

Conclusion

Laser welding is far more than an alternative to traditional joining methods; it is a foundational technology for modern, high-precision manufacturing. By delivering a controlled, concentrated dose of energy, it enables the creation of products that are stronger, lighter, and produced more efficiently than ever before. From the cars we drive to the medical devices that sustain us, laser welding forges the bonds of innovation. As the technology continues to evolve with more powerful and intelligent laser sources, its impact on the manufacturing landscape will only continue to grow.

FAQs

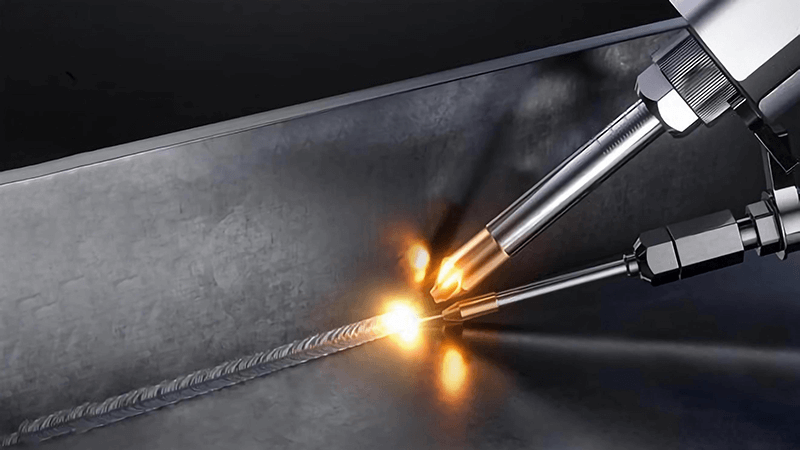

Laser welding quality depends on the combined effects of the type of laser, workpiece material properties, material assembly, shielding gas, and environmental control. Optimizing quality means controlling penetration depth, minimizing the size of the heat-affected zone (HAZ), avoiding defects such as porosity and lack of fusion, and achieving consistent weld geometry. This guide organizes key factors, supplemented by experimental tables and comparisons, to assist engineers, technicians, and advanced enthusiasts in adjusting parameters and understanding trade-offs.

Selection of Materials and Lasers

The absorption characteristics of welding materials for lasers of different wavelengths and the geometry of the welding materials will affect absorption, heat distribution, and welding stability.

Laser Source Types (Fiber, Carbon Dioxide, YAG, Semiconductor)

The selection of laser light sources affects the beam quality factor (M²), wavelength, efficiency, and actual power range. The following is a comparison table.

Material Composition, Reflectance, and Thickness

High-reflectivity metals (copper, aluminum) pose challenges in absorption at common wavelengths—they reflect more incident rays and can quickly conduct heat away, thus requiring higher power, adjustment of focusing strategies, preheating, or adjustment of pulses. Thickness directly determines whether conduction welding or keyhole welding is applicable and determines the required power and welding speed.

The following is the welding parameter table (1200W, 850W, 700W test group). These data provide reference ranges for actual parameters when welding stainless steel, carbon steel, galvanized steel, and aluminum under different machine configurations.

The following welding data from Xlaserlab Laboratory is provided for users' reference.

Geometry and Assembly of Welding Materials

Joint type (butt, lap, corner), gap size, and clamping tolerance have a significant impact on heat flow and fusion. Even if the power and speed seem appropriate, poor assembly or excessive gaps can lead to lack of fusion defects. Precise clamping and fixtures should be used when welding small gaps; if gap compensation is required, filler wire can be considered.

Laser Processing Parameters

Laser processing parameters are the primary controlling factors used to set the weld geometry, depth, and stability. The most influential parameters include laser power, welding speed, focal position (light spot size/defocus amount), and, where applicable, pulse characteristics (frequency, pulse width, waveform).

Laser Power and Power Density

Laser power controls the energy entering the keyhole or molten pool. With fixed focus and travel speed, increasing the power causes the welding process to transition from conduction welding (shallow penetration, wide weld bead) to keyhole/deep penetration welding (high aspect ratio).

In fact, there are threshold powers that define these modes; below the lower threshold, conduction welding occurs; above the upper threshold, stable deep penetration (keyhole) welding can be achieved. Between the two thresholds, instability may occur, with significant variations in depth/width. (In the figure, H represents conduction welding, U represents unstable welding, and P represents stable deep penetration welding.)

Focus Position, Light Spot Size, and Beam of Light Quality

Focus on the geometric shape and its impact on the light spot diameter and penetration depth

The focal position (△f) is the distance from the focal point to the surface of the workpiece. △f = 0 indicates that the focal point is exactly on the surface. A positive △f indicates that the focal point is above the surface material, while a negative △f indicates that the focal point is below the surface (inside the material). The focal point affects the size of the light spot, which in turn affects the power density (W/mm²).

Welding Speed

The welding speed data obtained using a 1000W fiber laser on a 5mm carbon steel base material, with Δf being -0.5mm.

Welding speed is inversely proportional to heat input. A faster speed reduces penetration depth and weld width; a slower speed increases heat input and penetration depth, but may cause burn-through in thin materials or excessive heat-affected zones in heat-sensitive components. (In the figure, H represents heat conduction welding, U represents unstable welding, and P represents stable deep penetration welding)

Pulse Characteristics (Applicable to Pulse Systems)

Pulsed lasers introduce important additional control parameters: pulse energy, frequency, and pulse width determine the overlap rate, peak power, and thermal cycle per pulse. Pulse waveform and timing affect spatter, surface finish, and keyhole initiation/closure. Continuous wave (CW) lasers and modulated continuous waves also require attention to waveform.

Protective Gas and Environmental Factors

Shielding gas can prevent the oxidation of molten metal and reduce the formation of plasma above the keyhole that may absorb laser energy. Common gases include: argon (an inert gas suitable for various metals), helium (with higher thermal conductivity, which helps with the keyhole stability of certain alloys), and nitrogen (reacts with certain steels and requires careful use). Gas flow rate and nozzle geometry are important. Insufficient flow rate can lead to oxidation; excessive flow rate may disrupt the molten pool or blow away the shielding gas.

Influence of Surface Cleanliness, Tooling Fixtures, and Operators

Dirt, oil, rust, or plating can reduce the absorption rate and may lead to porosity or inclusions. A strict cleaning procedure (degreasing, mild mechanical cleaning), consistent tooling fixtures, and experienced operator settings can significantly improve the yield. Machine maintenance - optical element cleanliness, power stability, and proper alignment - also affects quality.

Defects, Troubleshooting, and Quality Control

Common Defects and Their Causes

Porosity: Caused by contamination, gas entrapment, or unstable small holes. Remedial measures: Strengthen cleaning, adjust shielding gas, reduce welding speed, or adjust pulse parameters.

Spatter: Caused by excessive keyhole collapse or high power. Solution: Reduce peak energy or change pulse shape.

Incomplete fusion / lack of penetration: Low power or high speed; poor focusing. Solutions: Increase power, reduce speed, improve focusing, or reduce the gap.

Keyhole instability (oscillation): Usually caused by parameters being between the conduction and stable keyhole regions. Solution: Move to a stable power/speed region or adjust the focal position.

Crack: Material properties (such as certain steels); Remedy: preheat or use filler material and implement appropriate cooling control.

Monitoring and Process Optimization

Online monitoring (optical sensors, acoustic monitoring, photodiodes) and post-weld inspection (appearance, cross-section, X-ray for detecting hidden porosity) enable feedback and iterative adjustment. During adjustment, change one parameter at a time and record the results. Create parameter maps for each material and thickness to expedite production setup.

Practical Advice and Adjustment Checklist

Start with the baseline table:Use the reserved 1200W/850W/700W tables as the starting point for common materials.

Univariate Tuning: Adjust power, speed, or focus separately to identify sensitive areas.

Maintain optical components and cleanliness:Regularly clean optical components and pre-clean parts.

Use appropriate shielding and nozzle settings:Verify gas flow and nozzle geometry for each joint type.

Confirm fixture and clearance control: Maintain consistent assembly tolerances; if clearance dimensions are specified, use filler wire.

Recorded Results:Establish a parameter recipe library (material × thickness × laser model) to ensure repeatability.

Conclusion

The quality of laser welding depends on a balanced combination of laser selection, laser process parameters (power, speed, focus, pulse), material properties (absorptivity, thickness, composition), material geometry, and environmental control (protection, cleanliness, fixtures). The saved experimental data sheets and the comparison results among fiber lasers, CO2 lasers, and semiconductor lasers should serve as reliable initial references. For each new material and joint design, establish a small parameter matrix to determine stable and repeatable settings.

When using consumer-grade or compact multi-functional laser welding systems, select equipment with flexible power, focusing, and pulse adjustment capabilities and excellent beam quality (M² value close to 1.1 - 1.5). Such systems are more likely to replicate laboratory-level results in actual products.

XLaserlab's X1and X1 Pro embody these principles. The X1 uses semiconductor lasers, enabling clean and precise pulsed welding of ultra-thin components (0.2 - 2 mm), while being portable and easy to integrate into test fixtures. The X1 Pro's 700-watt fiber laser offers both continuous and pulsed modes, providing better control and increased speed, and can handle a wider range of materials (0.5 - 3 mm), including galvanized steel, copper, and brass. The fine focusing of the fiber beam of light combined with flexible parameter control helps you seamlessly apply optimized laboratory recipes to high-volume, high-quality production.

MIG welding produces a backward thrust of the wire, which allows for faster completion of the weld and is suitable for multi-job and efficiency projects. TIG welding requires a hand-holding of the wire in conjunction with the weld, which provides better control and a cleaner weld and is suitable for projects that are interested in precision and durability. In this article they will be fully compared, and you will also learn which method is best for your project, as well as find in this article the mistakes that beginners tend to make in both processes and how to solve them.

What is MIG Welding?

MIG welding, which stands for Metal Inert Gas Shielded (MIG), is also known as Gas Shielded Metal Arc Welding (GMAW). In this process, a solid wire (with filler metal inside) is needed; it is fed into a torch, and the torch will feed the wire as it works. It will slowly push you backwards and forwards; the heat generated by the arc melts the wire and joins the two pieces of metal together, and a shielding gas flows out of the torch as the weld is made. This gas is used to shield the weld from the air.

Equipment And Settings

Before you start welding, you also need to prepare some equipment; the following are needed:

• MIG Welder: It sends the wire to the welder before working; it mainly controls the wire feed and current.
• Welding torch: it is mainly responsible for delivering the wire and gas.
• Wire electrode: also called consumable wire, this is the metal wire that is melted to form the weld and is used to connect the base metal.
• Shielding gas: Usually argon, carbon dioxide, or a mixture thereof, it is necessary to decide which one is needed depending on the material.
• Grounding clamp: connected to the workpiece to establish a conductive circuit so that an arc can be created.
• Protective equipment: You will need a welding helmet, gloves, and jacket for safety. (Make sure you don't wear clothing that exposes your skin.)

Setting up the MIG welder is very simple. Attach the grounding clamp to the workpiece. Load the wire into the welder. Connect the gas cylinder and set the flow rate. Adjust the voltage and wire speed on the machine. Please ensure you wear your safety equipment before beginning the welding process.

Advantages of MIG Welding

MIG welding has many benefits and is especially suitable for novice welders. Here are some of the main advantages:

• Easy to learn: You can master the basics quickly. The whole process is simple and straightforward to understand.
• Fast welding: The wire is fed automatically, and the force generated is pushed back automatically, so you can weld faster than with other methods.
• Versatile: You can weld many types of metals, including steel, stainless steel, and aluminum.
• Cleaner welds: Shielding gas keeps welds free from contamination. Less spatter and neater welds.
• Continuous Welding: The wire feed feature allows you to weld for longer periods of time without having to use too much force to control it or stop to change electrodes.

MIG welding is a good choice if you want to finish your project quickly and easily. Many beginners choose it.

Disadvantages of MIG welding

While there are many advantages to this process, you should also be aware of some of its disadvantages. This information can assist you in selecting a welding process that is more appropriate for your project.

• Limited weld quality on thin materials Difficulties can be encountered when working with very thin metals. The high heat input may burn through the base material. If you are working with thin sheet metal, you may find it difficult to get a clean weld.
• Weak weld control MIG welding provides less control over the weld path than TIG welding. MIG welding is very fast, and the thrust of the fed wire can make it difficult to control the weld and achieve an accurate or aesthetically pleasing weld. If you are looking for a perfect weld, it may not always meet your needs.
• Equipment can be bulky; MIG welders often require a power supply, gas cylinder, and wire feeder. This equipment can be heavy and difficult to move. If you need to weld in tight spaces or outdoors, portability can be an issue.
• Shielding Gas Sensitivity MIG welding uses shielding gas to protect the weld. Wind or air currents may blow away the gas, resulting in a poor or contaminated weld. It can be tricky to use outdoors unless special equipment or windshields are used.
• Not suitable for all metals. It is best suited for steel, stainless steel, and aluminum. It does not weld well on certain metals, such as cast iron or very thick materials.
• Spatter and clean up more. Welding produces spatter—small amounts of molten metal that can stick to the workpiece. Cleanup after welding can take more time.

If you are looking for speed and convenience, MIG welding is for you. If you are looking for precision or planning to weld outdoors, you may want to consider other options.

What is TIG Welding?

The full name of TIG welding is tungsten electrode inert gas shielded welding (GTAW). In TIG welding, the core principle is to create an electric arc with a non-consumable tungsten electrode. The arc melts the metal parts you want to join, while a jet of inert gas (usually argon) from the torch flows around the weld area to protect the molten pool, allowing you to control the amount of heat and filler metal.

This gives you greater control over the weld. Unlike MIG welding, where the wire is fed automatically, TIG welding usually requires the operator to feed the filler wire manually, which also increases control and creates a clean, strong, and beautiful weld depending on the welder's ability to weld.

Because of this, TIG welding is widely used in precision welding of stainless steel, aluminum alloys, titanium alloys, and other materials, especially in aerospace, the food industry, and artistic creations that require a high level of detail, as well as the ability of the welder to perform the basic specialties required.

Equipment and settings

Equipment that is also needed to perform welding. The following are required:

• TIG machines: these provide the current.
• TIG torch: It controls the tungsten electrode and directs the shielding gas.
• Tungsten electrode: It does not melt. It creates an arc to heat the metal.
• Filler rod: If additional metal is needed for the weld, it can be added manually.
• Shielding gas: Usually argon. It protects the weld from air.
• Foot pedal or manual control: You can use it to regulate the heat while welding.
• Grounding clamp: It is connected to the workpiece to complete the circuit.
• Protective equipment: For safety, you will need a welding helmet, gloves, and a work shirt or jacket (please err on the side of wearing clothing that shows skin).

Advantages of TIG W elding

TIG is suitable for use in projects that require precision and high quality. Here are its main advantages:

• High precision and control: with the use of a non-consumable tungsten electrode and manual filler rod feeding, the welder can have better control over the weld path. This makes it the reason for being a fine work.
• Cleaner and more aesthetic welds: It allows for smooth, spatter-free welds with a professional finish. It is often preferred in areas where appearance is important, such as automotive, aerospace, and decorative work.
• Material versatility: TIG can weld a wide range of metals, including stainless steel, aluminum, titanium, copper, magnesium, and more specialized alloys.
• No spatter: Since it does not rely on continuous wire feed, spatter is virtually nonexistent. This also reduces cleanup time.
• Ideal for thin materials: Precise heat control is what allows it to weld very thin plates without burning through.
• Robust and durable welds: The welds created with TIG are structurally robust and corrosion-resistant, making them well suited for demanding applications.

If precision, durability, and professional-looking welds are important to you, then TIG welding is often the best choice.

Disadvantages of TIG Welding

Although it excels in terms of quality and precision, there are some drawbacks that need to be considered:

• Slower welding speeds: TIG welding is significantly slower compared to MIG welding. This can make it inefficient for large-scale or production welding.
• More difficult to learn: TIG welding requires the coordination of both hands (one holding the torch and one holding the wire) and a foot pedal. It can be difficult for beginners to master.
• Equipment Costs: TIG machines are generally more expensive than MIG machines, especially those with AC/DC capability for aluminum welding.
• Unsuitable for Thick Materials: While TIG is great for welding thin metals, it is less effective on very thick sections unless the welder has specialized skills.
• Requires a very clean surface: Very sensitive to contaminants such as oil, rust, and dirt. The base metal must be thoroughly cleaned before welding.
• Less portable: Like MIG, TIG units often require shielding gas and bulky equipment, which can also limit mobility for fieldwork.

If your goal is to achieve high-quality, high-precision welds in critical applications, TIG welding is the way to go. But if speed, convenience, or portability are more important to you, handheld laser welding equipment may be more suitable for you, and laser welding is also ideal for welding thin metals.

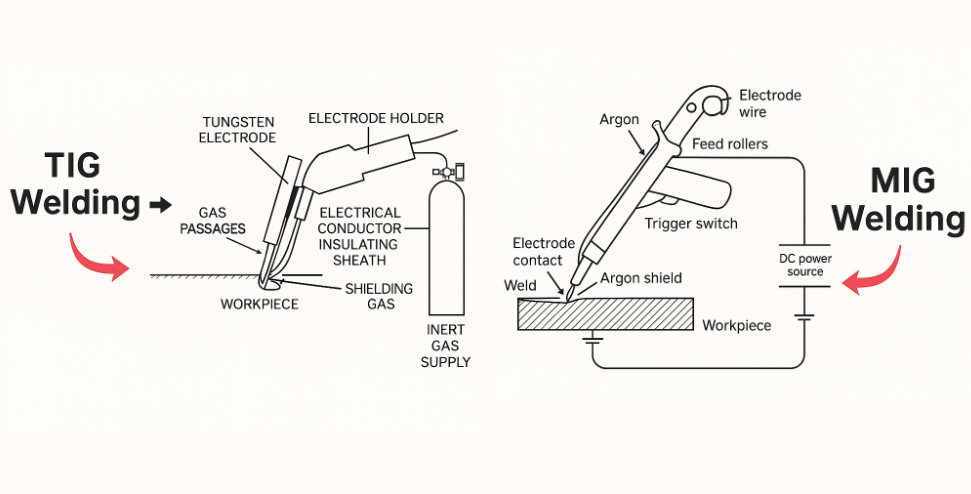

MIG vs TIG Welding: Key Differences

Welding Technology

The biggest difference between them is the way the tool is operated. In MIG, a torch with automatic wire feed is used. You simply pull the trigger, and the machine does most of the work. This makes it easy to keep your hand steady and focus on moving the torch along the joint and eliminates the need to manually add filler metal. The wire acts as both electrode and filler material.

TIG welding is more controllable, but it also requires a higher level of skill and ability. When welding, you need to hold the torch in one hand and the wire in the other. Use your foot or fingers to control the heating of the wire. Contact of the tungsten electrode with the metal must be avoided. If it touches the metal, the weld may become dirty or lose strength.

Welding Speed

When you have a lot of welding to do, speed is the number one priority, and MIG welding is much faster than TIG welding. The wire is fed automatically, so you can weld without interruption. You can complete large projects quickly. This makes it ideal for jobs that need to be done quickly, such as automotive repairs or building frames.

TIG welding takes longer. It must be done slowly and carefully. It slows down because you need to add filler metal manually. Each weld requires more care. If you rush, it is easy to make mistakes. When quality is more important than speed, TIG welding works best.

Welding Strength and Durability

When comparing, the strength and durability of the welds should also be considered. MIG welding creates strong joints, especially on thick metals. The welds hold up well in most applications. You can use it for cars, fences, and many home projects.

TIG welding produces stronger, cleaner welds. You can control the welding heat and filler metal usage to avoid weak spots or cracks. The weld appearance is smooth with fewer defects. Many industries use it for welding components requiring long-term durability, such as aircraft parts or bicycle frames, though it demands higher technical skill.

As seen, each method has distinct advantages. When choosing for your project, you can refer to the above comparison.

Material Compatibility

When selecting a welding process, the type of metal to be welded should also be considered. Not all welding methods are suitable for all metals. Some metals require special settings or extra care.

MIG Welding Material Compatibility:

• MIG welding can be used on a variety of common metals.
• It is best suited for low-carbon steel, stainless steel, and aluminum.
• It is suitable for thicker materials. It can perform deep penetration, which aids in welding thick steel.
• It performs poorly on cast iron or very thin sheets. High temperatures may burn holes or cause cracks.

TIG Welding Material Compatibility:

• It allows for greater control over heat and filler metal.
• Almost any metal can be used, even hard metals.
• It is ideal for thin materials. You can achieve precise welds on sheet metal, copper, magnesium, titanium, and specialty alloys.

MIG and TIG Welding Strength

Which Welding Method Produces Stronger Joints?

When performed correctly, TIG welding produces stronger joints.

When both welding methods are executed by skilled welders, TIG welds typically surpass MIG welds in strength, purity, and ductility.

Reasons include:

1. Exceptionally high weld purity: The TIG welding process is extremely clean, producing minimal spatter. Inert gases like argon perfectly shield the molten pool, effectively preventing contamination from atmospheric oxygen, nitrogen, and other impurities. This results in exceptionally pure weld metal with minimal internal defects such as porosity or inclusions that cause stress concentrations and reduce strength.
2. Unparalleled Control: In TIG welding, the welder independently and precisely controls heat input (typically via a foot pedal) and filler material addition. This fine-grained control allows heat to penetrate the base metal more concentratedly and efficiently, achieving optimal penetration depth and fusion. This ensures joint integrity and metallurgical quality.
3. Superior Metallurgical Bonding: The slower, more deliberate nature of the TIG welding process results in a relatively slower cooling rate of the metal. This promotes the formation of a more desirable metal grain structure, yielding welds with enhanced ductility (toughness) and strength.

In Summary:

This is not to suggest that MIG welding is not robust. A high-quality MIG weld provides fully adequate and reliable strength for the vast majority of industrial and structural applications.

However, when a project demands the material's maximum potential strength, absolutely flawless weld interiors, and a perfect appearance, TIG welding is the superior choice. It functions more like a “surgical” precision process, while MIG focuses on efficient production.

Impact on Structural Applications

You may be wondering which method is better suited for buildings, bridges, or machinery. Structural applications require welds capable of withstanding pressure. TIG welding produces high-quality welds with deep penetration. You can use TIG welding for critical components where damage is unacceptable. Many industries rely on TIG welding for pressure vessels, pipelines, and aerospace components.

MIG welding is common in construction and manufacturing. You can quickly weld long seams. MIG welds are strong enough for frames, supports, and automotive parts. If you're welding large structures, MIG welding saves you time and effort.

Welding Method	Primary Structural Application Fields
MIG Welding	Structural steel for buildings (beams, columns), bridge construction, heavy machinery and equipment, shipbuilding and marine engineering, automotive main beams and frames, general metal fabrication
TIG Welding	Aerospace components, professional racing chassis/roll cages, high-pressure pipelines and pressure vessels, high-end bicycle frames, precision mold repair, special alloy structural parts (e.g., titanium alloys)

Safety Precautions for MIG and TIG Welding

Common Hazards in MIG Welding

When using MIG welding, the arc produces intense light and heat. This light and heat can burn your eyes and skin. Additionally, you will be exposed to hot metal and sparks. Contact with them or sparks landing on your clothing can cause burns.

It uses shielding gas. If you work in confined spaces, the shielding gas will displace the air you need to breathe. You may feel dizzy or lightheaded. The welding process also produces fumes. Long-term inhalation of these fumes can damage your lungs.

Here are some common hazards you should be aware of:

• Eye injuries from arc rays and flying sparks
• Burns from hot metal and spatter
• Inhalation of welding fumes
• Electric shock from touching live parts
• Fire risk from sparks landing on flammable materials

Common Hazards in TIG Welding

TIG welding itself carries inherent risks. The arc is extremely bright and can cause rapid eye damage. A professional welding helmet must be worn to protect the eyes during every welding operation. The welding torch and metal become extremely hot. Touching them can result in severe burns.

TIG welding uses pure argon gas, which produces ozone during welding. This gas is colorless and odorless. If welding in an enclosed room, argon can fill the space, reducing oxygen levels. You may not notice until you feel weak or have difficulty breathing.

It also produces metal fumes. Certain metals, such as stainless steel or nickel, produce more hazardous fumes. You need to maintain good air circulation in the workspace.

Common TIG welding hazards include:

• Eye damage from intense arc light
• Severe burns from high-temperature torches and molten metal
• Gas accumulation in confined spaces
• Toxic fumes from certain metals
• Electrical shocks from malfunctioning equipment

Safety Equipment and Best Practices

Using the right equipment and developing good habits ensures safety. Always wear a welding helmet with the appropriate shade. The helmet protects your eyes and face from light and sparks. Use fire-resistant gloves and a long-sleeved jacket to protect your skin.

Below is a list of basic safety equipment:

Safety Equipment	Purpose
Welding Helmet	Protects eyes and face
Gloves	Protects hands from high temperatures
Jacket/Apron	Covers arms and body
Safety Glasses	Provides additional eye protection
Respirator/Mask	Filters harmful fumes
Work Boots	Protects feet from injury by hot metal

You should also:

• Ensure your work area is well-ventilated
• Remove flammable items before welding
• Inspect all cables and connections for damage
• Never weld in damp locations
• Store gas cylinders upright and secured

MIG and TIG Welding for Beginners

Easy to Learn

If you're new to welding, it's recommended to start with a simple, user-friendly method. MIG welding typically excels in this regard. You simply hold the torch, pull the trigger, and the machine automatically feeds the wire. The entire process is as easy as using a hot glue gun. You can focus on moving your hand along the joint without worrying about manually adding filler metal.

TIG welding demands greater coordination. You must use both hands, and sometimes your foot. One hand holds the torch, the other feeds the welding rod, while your foot controls the heat. You must avoid touching the tungsten electrode to the metal. This requires practice and patience.

Common Mistakes of Beginners

Mistakes are inevitable during the learning process. This is perfectly normal. Understanding the most common errors can help you avoid them.

MIG Welding Mistakes

Moving the gun too fast or too slow

The travel speed directly determines weld penetration depth, weld width, and overall strength.

• Moving too fast: Results in insufficient heat input, preventing the melted filler wire from fully fusing with the base metal. This creates a narrow, convex weld with unfused root, resulting in extremely low strength and high susceptibility to fracture.
• Moving Too Slowly: Causes excessive heat buildup, especially on thin sheets, easily leading to burn-through. On thicker sheets, it produces overly wide, flat welds that waste filler material and may cause overheating and distortion of the base metal.

Failure to clean metal prior to welding

Any contaminants will burn and vaporize under the high temperatures of the arc, trapping gases within the molten pool and forming porosity. These pores act like bubbles within the weld, severely compromising its structural strength and sealing integrity. Simultaneously, impurities cause arc instability and increased spatter, resulting in a rough weld appearance.

Incorrect wire feed speed or voltage, mismatched wire feed rate and voltage settings

• Excessive voltage/low wire feed speed: Produces heavy spatter, a “crackling” arc sound, flat welds, and potential undercut.
• Voltage too low/wire feed speed too high: The wire plunges into the molten pool, causing “wire sticking,” an unstable arc, and forming a coarse, raised “worm-like” weld with very poor fusion to the base metal.

Failure to check gas flow, gas cylinder not turned on, or improper gas flow setting (too high or too low)

• No gas or insufficient flow: The molten pool is inadequately shielded, allowing air intrusion. This results in numerous porosity defects, a brittle weld, and a black or gray oxide layer on the surface.
• Excessive flow: Not only does this waste gas, but it can also create turbulence around the molten pool, drawing in air. This similarly compromises shielding and leads to porosity.

TIG Welding Mistakes

Tungsten Contacts Metal (Contaminated Weld)

• Error Manifestation: During welding, the tungsten electrode tip accidentally touches the filler wire or molten pool.

• Why the Error Occurs: This is the most common error in TIG welding. Once the tungsten electrode contacts the molten pool, tungsten particles enter the weld, forming a “tungsten inclusion” defect. This defect point becomes a stress concentration zone, severely compromising the weld's strength and toughness. Simultaneously, the contaminated tungsten tip melts and deforms, causing arc deviation and instability. Welding must be halted, and the tungsten electrode must be reground.

Unsteady Hand, Unstable Arc Length and Movement

• Error Manifestation: Hand tremors cause the distance between the tungsten electrode and the workpiece (arc length) to fluctuate erratically.

• Why It's an Error: The aesthetics and quality of TIG welding depend entirely on stability. Unstable arc length directly affects heat input, leading to inconsistent weld width and penetration depth. Hand tremors also cause the weld bead to appear crooked, severely compromising appearance. This requires extensive practice to develop muscle memory in the hand.

Metal Overheating Causes Warping

• Error Manifestation: Prolonged dwell time in one area or continuous long welds on thin sheets.

• Why It's Wrong: TIG welding concentrates heat intensely. Improper heat input control causes localized thermal expansion and uneven cooling contraction, generating internal stresses that ultimately deform or warp the workpiece. This is particularly noticeable in heat-sensitive materials like stainless steel and aluminum.

• Solution: Employ short-arc spot welding or segmented welding to allow heat dissipation. Proper fixture clamping can also effectively minimize distortion.

Using the wrong filler rod

• Issue: The filler wire material is incompatible with the base metal.

• Why it's wrong: Filler wire isn't merely “filler”—it constitutes the alloy composition of the weld. Mismatching filler wire with the base metal (e.g., using carbon steel wire on stainless steel) results in incorrect chemical composition in the weld. This can cause cracking, insufficient strength, or accelerated corrosion over time. Always ensure the filler wire grade matches your welding.

Conclusion

MIG welding and TIG welding each have distinct advantages. During MIG welding, the wire feed is automatic, and the resulting thrust pushes you backward. It offers high speed and is better suited for multi-project scenarios where efficiency is prioritized. TIG welding requires manual control, which allows skilled operators to achieve unparalleled precision, producing clean and durable welds. The choice of process depends on project requirements, such as material type, required weld quality, and production efficiency.

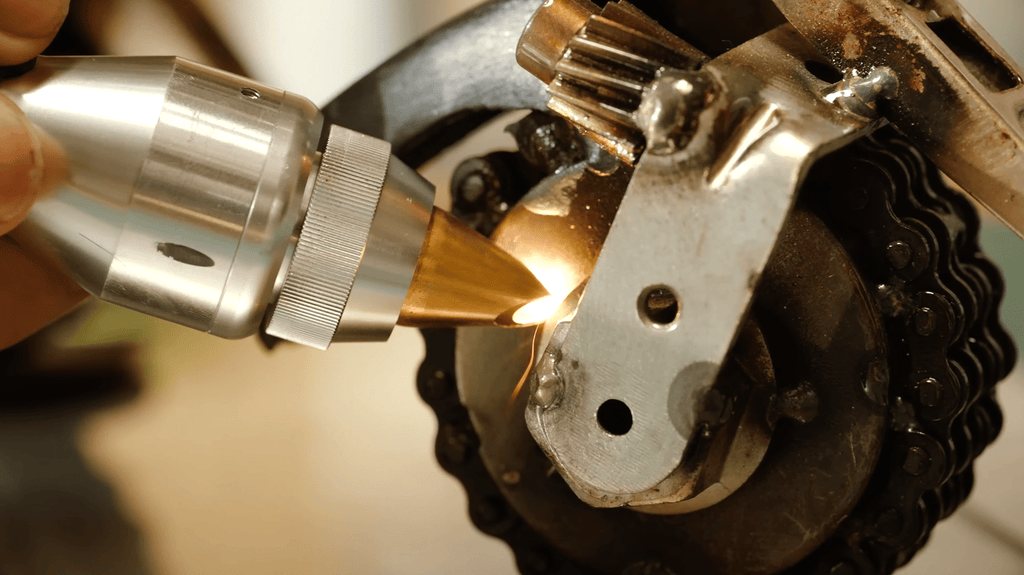

Meanwhile, the growing prominence of laser welding warrants attention. Combining high precision with rapid processing, laser welding excels in thin metal sheets, complex geometries, and applications requiring minimal post-weld finishing. It also proves more accessible to newcomers. Across numerous industries, it is increasingly serving as a complementary solution to traditional MIG and TIG processes.
