Mastering Thin Gauge Stainless and Preventing Warpage and Burn-Through

Precise heat control and dedicated clamping tools prevent warpage and burn-through when working on thin-gauge stainless steel. You can achieve flawless industrial results by matching specific pulse parameters with rigid alignment strategies. A handheld laser welding machine offers an excellent balance of power and precision for delicate applications. Careful parameter selection limits heat input and protects the fragile metal surface.

The Serious Vulnerabilities of Thin Sheet Metal to Intense Heat Exposure

Heat management dictates the success of any thin gauge project, whether it's a small metal shop, a custom studio, or an independent maker's workbench.

Thin stainless steel warps rapidly because its low thermal conductivity traps heat locally. The metal expands and buckles when temperatures exceed structural thresholds.

The laser welding process introduces concentrated energy into a small area in a fraction of a second. Stainless steel retains this heat significantly longer than carbon steel or aluminum alloys. This localized heat creates high stress gradients across the surface of the panel. The metal distorts as the heated zone expands against the cooler surrounding material. This is exactly why a handheld laser welding machine has become the go-to choice for small shops and custom studios working thin gauge stainless — it manages energy delivery precisely enough to keep the surrounding metal cool while still achieving proper penetration.

Thin-gauge material lacks the mass required to dissipate the intense thermal energy naturally. The thermal expansion coefficient of austenitic stainless steel is quite high. The metal moves dramatically when exposed to high temperatures. The surrounding cold metal resists this expansion. This resistance causes permanent plastic deformation in the heated area. The panel cools and shrinks, but the deformation remains locked into the structure. This locked-in stress results in waving or buckling on poorly welded thin sheets.

Thermal Dynamics Breakdown

Excessive heat melts through thin materials instantly. Burn-through ruins the workpiece and requires costly rework.

The molten pool drops out when the heat input surpasses the material thickness capacity. You prevent this by traveling at a consistent, fast speed across the joint. They maintain a tight fit-up between parts before initiating the arc. Any gap increases the risk of the weld pool collapsing inward. Thin-gauge stainless steel loses structural integrity if the arc lingers for even a fraction of a second too long.

Structural Integrity Risks

A large heat-affected zone degrades the natural corrosion resistance of the stainless alloy. Chromium carbides precipitate out at the grain boundaries when the metal sits in the critical temperature range for too long.

This precipitation leaves the surrounding area starved of chromium. The depleted zones rust quickly when exposed to moisture or environmental contaminants. Precise heat input prevents this metallurgical degradation. A fast and focused heat source ensures the metal spends minimal time in the danger zone.

Optimizing Microsecond Pulse Widths and High Frequencies for Minimal Heat Affected Zones

Parameter adjustment directly controls the energy input during the fusion stage.

You set short pulse widths and high frequencies to restrict heat penetration. This combination delivers enough surface energy to melt the joint without saturating the base metal.

Short pulse widths keep the heat zone extremely shallow and manageable. A duration of one to two milliseconds works well for materials under one millimeter thick. The metal cools slightly between each microsecond pulse. This rapid cooling cycle stops the heat from spreading outward into the panel. Internally heated handheld laser welding systems often feature precise digital controls for these microsecond adjustments.

A shorter pulse duration delivers a high peak power spike. This spike melts the surface instantly without driving the heat deep into the root. The rapid solidification of the puddle prevents the metal from sagging. You fine-tune the peak power to match the exact thickness of the stainless steel sheet.

High peak power causes instant vaporization of the metal surface. Low peak power results in a lack of fusion. You balances these two extremes by reading the puddle behavior. The digital interface on modern equipment allows for exact repeatability once ideal parameters are established.

Pulse Width Parameters

High frequency overlaps the pulses for a smooth continuous seam appearance. Frequencies between fifty and one hundred hertz create a stable arc on thin materials.

The fast repetition rate means the laser spends less time on any single spot. You increase travel speed to match the high frequency output. This synchronization prevents excessive melting at the joint root. A high pulse frequency produces a tight ripple pattern. This pattern requires zero post-weld grinding.

Frequency Adjustments

Constant rapid pulsing agitates the weld pool slightly. This agitation helps float impurities to the surface before the puddle freezes.

Continuous movement ensures a dense and porosity-free joint. Slower frequencies allow the puddle to freeze completely between hits. This slow action creates an irregular bead profile. It increases the overall heat input because you naturally slow your travel speed to compensate. A swift pace alongside a high frequency setting ensures optimal mechanical results.

Selecting Pure Shielding Gases for Contamination Free Stainless Seams

Atmospheric protection ensures the weld remains strong and visually clean throughout the procedure.

Pure argon provides the most reliable atmospheric shield for thin stainless applications. This inert gas prevents oxygen from entering the molten pool and causing porosity or severe oxidation.

Argon cools the weld zone while blocking destructive atmospheric gases. It produces a highly stable arc and a brilliant finish. Some welders mix in a tiny percentage of hydrogen to pick up a bit more travel speed, though that's mostly worthwhile on larger production setups. Pure argon remains the safest baseline choice for pristine stainless results in manual operations. It eliminates the heavy black soot seen with poor shielding practices.

Argon is heavier than air. This physical property allows it to blanket the weld puddle efficiently on flat surfaces. The gas displaces the surrounding oxygen and nitrogen instantly. Nitrogen contamination causes severe brittleness in the weld metal. Oxygen contamination leads to heavy slag formation and porosity. A pure argon shield prevents both of these metallurgical failures. The smooth flow of argon guarantees a shiny surface that requires minimal cleanup.

Flow Rate Calibration

Gas flow rates require exact tuning for delicate thin metals. Ten to fifteen cubic feet per hour provides adequate coverage without creating physical turbulence.

High pressure blows the molten metal straight out of the joint. Low gas flow allows ambient air to ruin the molten weld. Test the flow on identical scrap material before starting the final piece. Proper gas settings depend entirely on the specific joint design and ambient conditions. The table below outlines standard flow rates based on typical material thicknesses.

Material Thickness	Gas Type	Recommended Flow Rate	Application Type
0.5 Millimeters	Pure Argon	10 Cubic Feet per Hour	Outside Corner Joints
0.8 Millimeters	Pure Argon	12 Cubic Feet per Hour	Flat Butt Joints
1.0 Millimeters	Pure Argon	15 Cubic Feet per Hour	Inside Fillet Joints

Read the gauge exactly at the torch tip to verify these exact numbers. Consistent flow prevents random contamination spots along the seam length. Drafty shop environments require a slight increase in flow rate to compensate for air movement. Screens or welding curtains help block erratic air currents from disrupting the gas shield. A large gas lens provides a wider blanket of argon over the critical heat zone. This wide coverage allows you extend the tip slightly further for better visibility.

Implementing Advanced Jigging and Clamping Strategies for Precision Alignment

Physical preparation is just as critical as the automated machinery parameters.

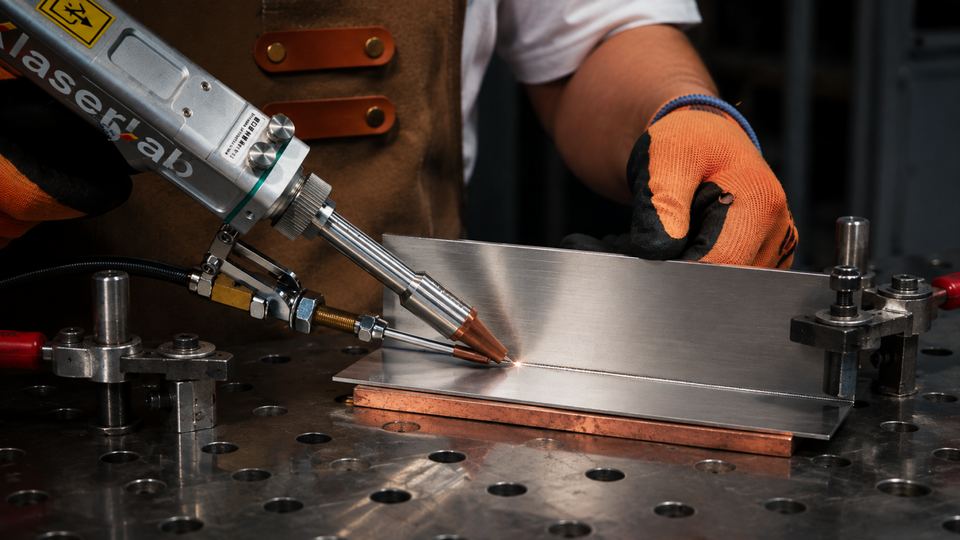

Rigid clamping with heavy copper backing bars absorbs excess heat and holds the metal flat. Zero-gap fit-up helps prevent burn-through on fragile thin gauges.

Copper pulls heat away from the stainless steel almost instantly. Backing bars sit directly underneath the sensitive weld seam. They act as a massive heat sink to stop distortion before it starts. The copper provides solid physical support so the molten pool does not sag downward. Chill blocks placed near the top of the joint offer additional thermal control.

Aluminum backing bars offer a cheaper alternative. Aluminum melts if the arc accidentally hits it. Copper withstands accidental arc strikes much better. The backing bar needs a small groove machined into its center. This groove allows the shielding gas to protect the backside of the weld root. A back-purge system prevents the root from oxidizing and turning black. Sugaring happens when the hot root reacts with oxygen. This rough oxidation ruins the structural integrity of the joint. A proper copper backing setup with a gas purge channel eliminates this common defect entirely.

Pressure Distribution

Clamps must apply continuous pressure along the entire seam length. Spot clamps leave tiny gaps where the metal bows upward during heating.

Use heavy steel bars to press the thin sheets flat against the work table. Toggle clamps offer rapid downward force which is handy for repeat jobs in a small shop. Precision alignment tools ensure the fragile edges touch completely before the arc starts. Any gap larger than the thickness of the material guarantees a burn-through failure. Tack welds placed every few inches help maintain alignment during the final pass.

Edge Alignment Setup

Place tack welds very quickly to minimize heat input. Autogenous welding requires strict metal-to-metal contact.

The edges melt together to form the joint without any added filler wire. A handheld laser welding machine excels at autogenous joints when the clamping setup is rigid and precise. Tight fit-up allows the laser energy to transfer smoothly across the seam. Solid contact points ensure the thermal energy dissipates evenly into the surrounding fixtures.

Troubleshooting Common Heat and Shielding Discoloration Issues on Stainless Surfaces

Visual inspection immediately reveals the overall quality of the shielding and heat control.

Dark discoloration indicates excessive heat input or severely inadequate gas coverage. You can resolve this defect by increasing travel speed and checking the gas delivery system for physical blockages.

A light straw or pale gold color signifies an acceptable amount of surface oxidation. Dark blue or crusty black means the metal absorbed too much heat or ambient oxygen. Drafts in the workspace blow the fragile shielding gas away from the torch nozzle. Dirty base metal causes ugly black carbon marks. The metal needs thorough degreasing with acetone before the heat hits it. Oils and drawing compounds react violently with the intense heat.

These contaminants introduce carbon into the pure stainless alloy. Carbon causes cracking and accelerates localized corrosion. Laser optics require strict cleanliness to prevent beam diffusion. A dirty protective lens scatters the laser light and reduces the effective power at the joint. This power drop forces you to slow down. Slow travel speeds increase the total heat input and worsen the discoloration.

Chemical Surface Restoration

Welders remove minor straw discoloration with dedicated stainless steel wire brushes. Chemical pickling pastes dissolve heavier oxide layers effectively.

Electrochemical cleaning wands offer a fast alternative to harsh acids. The final product requires chemical passivation to restore the natural rust resistance of the stainless steel surface. Pristine welds require significantly less post-processing time.

Passivation Procedures

Passivation removes free iron from the surface and promotes the formation of a thick chromium oxide layer. This invisible layer protects the metal from future environmental degradation.

Heavy grinding tools destroy the visual appeal of a precise laser weld. Proper heat control eliminates the need for aggressive material removal. You save hours of labor by simply tuning the parameters correctly in the first place. A visually perfect seam straight from the torch is the ultimate goal for thin gauge fabrication in any small shop or studio.

Bring Handheld Precision to Your Shop Today

Upgrade your workspace with adequate copper backing and verify all gas flow rates before striking an arc. Implement these precise heat control techniques and rigid clamping setups to reduce material waste. Proper preparation promotes pristine stainless steel results. A refined approach saves valuable time on the bench, whether you're running a small shop, a custom studio, or working solo. It ensures structural perfection on delicate thin gauge fabrication projects. Master these specific parameters, and a handheld laser welding machine will let you work through them quickly and confidently.

Thin Gauge Stainless Welding FAQs

Q1: What specific gas mixture works best for stainless steel thinner than one millimeter?

Pure argon mixed with a maximum of two percent hydrogen provides optimal results for shop welding. This specific blend increases the travel speed slightly while maintaining an oxygen-free environment around the molten pool.

Q2: How do you fix a burn-through hole on a twenty-gauge stainless steel panel?

Place a thick copper backing block directly behind the hole and use short bursts of a lower-amperage micro-pulse to slowly build the edges inward. The copper absorbs the excess heat while providing a physical shelf for the new molten metal to rest upon.

Q3: Why does stainless steel warp hours after the actual welding process finishes?

Residual thermal stress locked inside the crystalline structure of the metal slowly releases as the ambient room temperature fluctuates. Proper fixturing and controlled slow cooling cycles prevent this delayed mechanical distortion from occurring.

Q4: Can standard auto-darkening helmets protect against handheld laser light reflections?

Standard auto-darkening welding helmets fail to block the specific near-infrared wavelengths generated by handheld laser systems. You'll need eyewear and headgear rated for the exact nanometer output of your specific machine to prevent permanent retinal damage. Xlaserlab's laser welding helmets are built specifically for this wavelength range, with reliable auto-darkening to shield against the strong light output.

Q5: What is the maximum acceptable gap width for autogenous welding on thin sheet metal?

The maximum allowable gap is ten percent of the total thickness of the thinnest piece of metal being joined. Any gap exceeding this strict tolerance requires the addition of filler wire to prevent the molten edges from collapsing away from each other.
