Weld anything from ultra-thin 0.2 mm sheets to 3 mm
components with precision.
Compact and Portable Laser Welding Without Compromise
Laser Machines Parameters
- X1 Pro
- X1
Laser Welding
Laser Cleaning
Laser Cutting
Underwater Welding
Modularity
Safe and Efficient

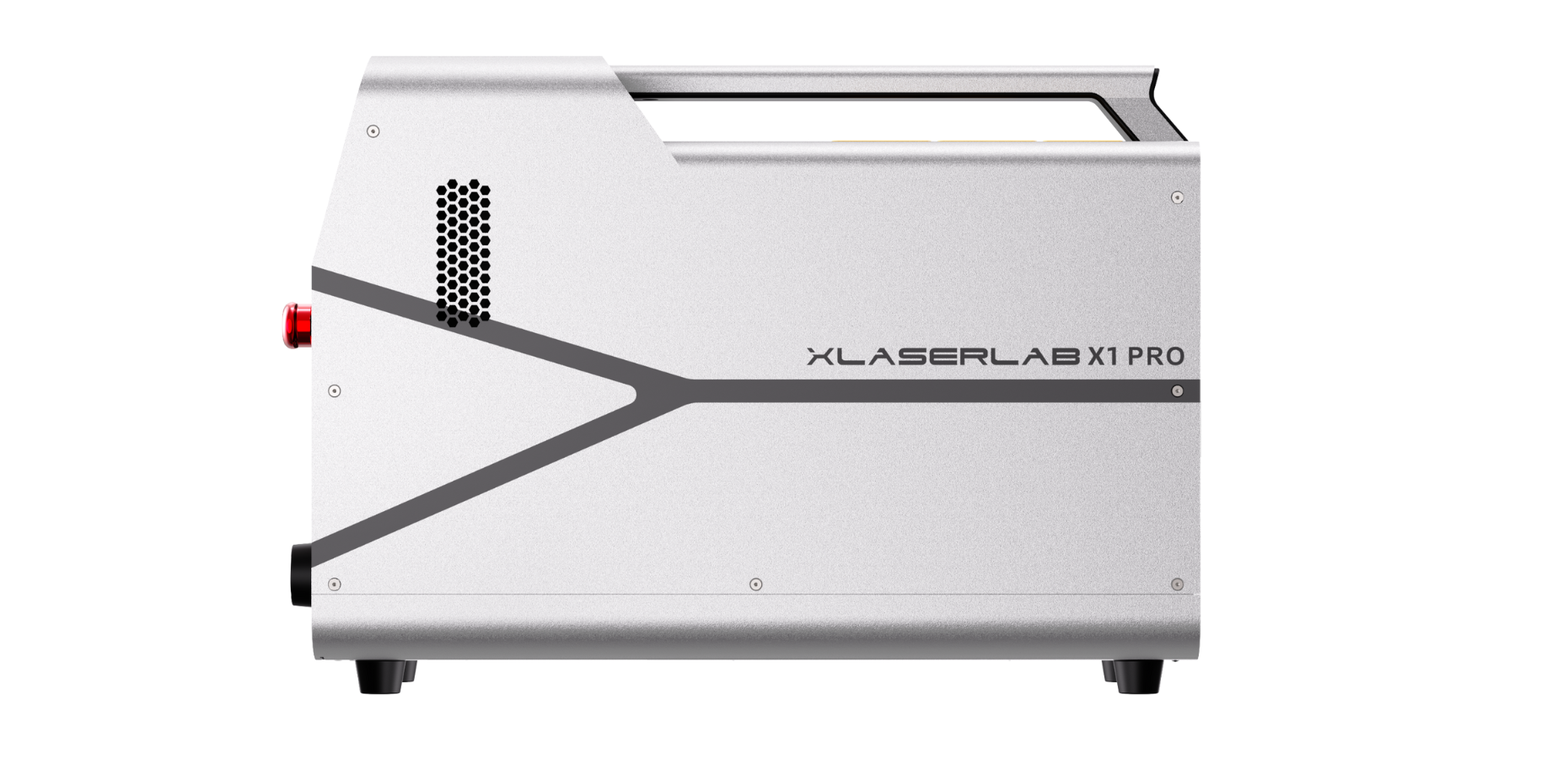

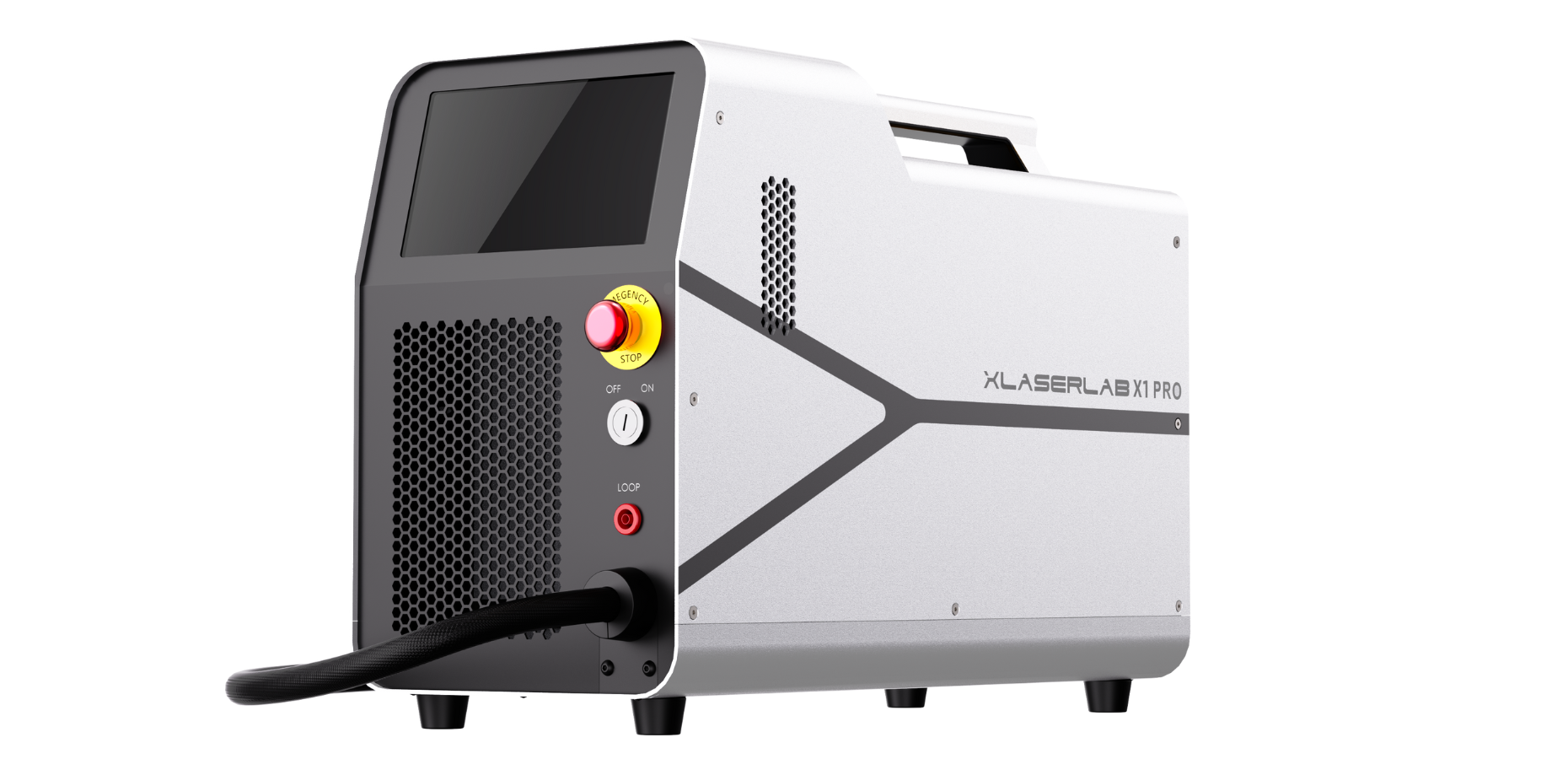

X1 Pro
The X1 Pro offers continuous pulsed high-energy output, delivering rapid welding speeds and ensuring flawless weld seams with minimal distortion.
Average Laser Power
700W
Central Wavelenght
1080±10 nm
Duty Cycle
1-100%
Laser Welding
Underwater Welding
Modularity
Safe and Efficient

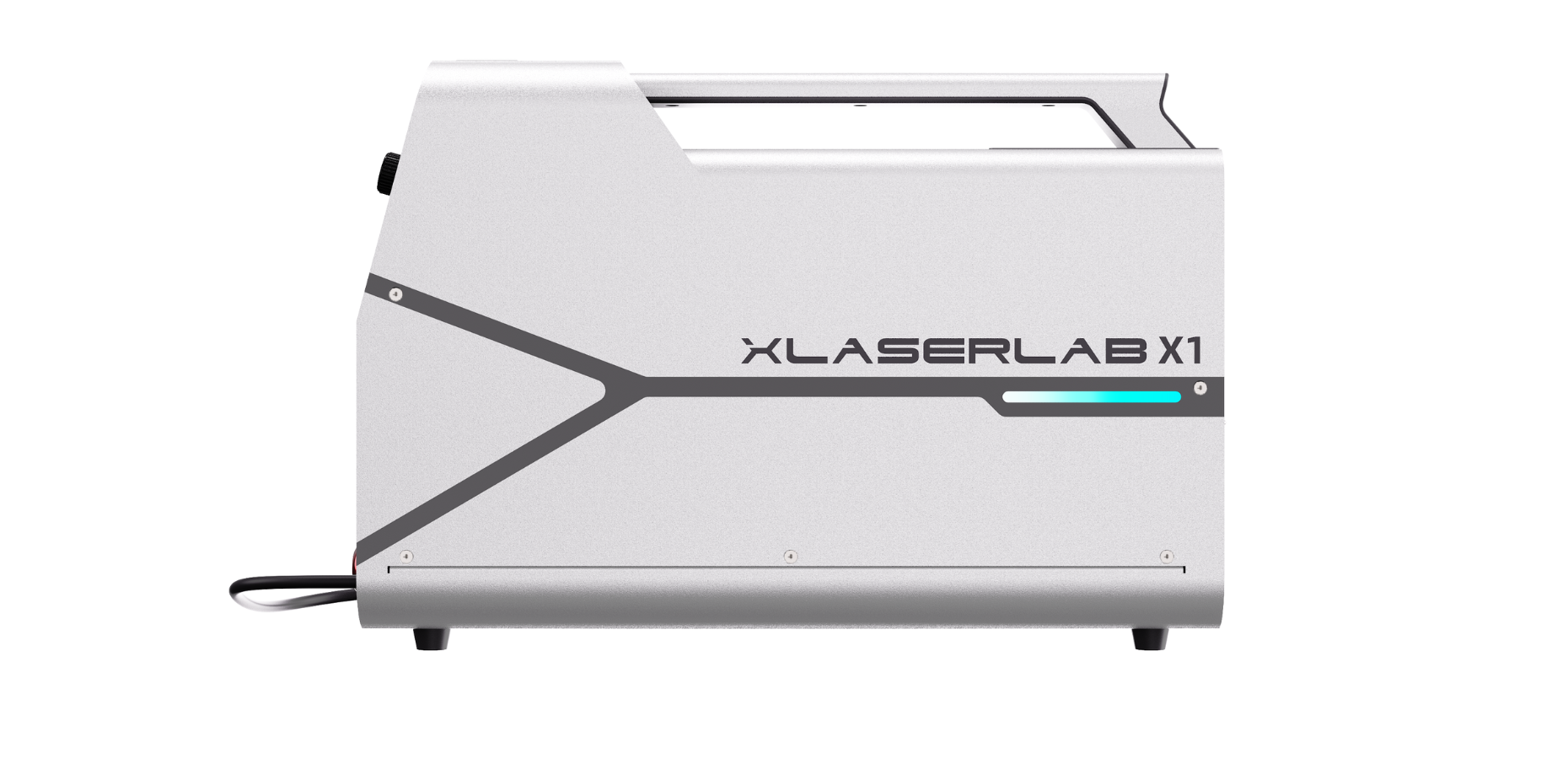

X1
The X1 offers continuous pulsed high-energy output, delivering rapid welding speeds and ensuring flawless weld seams with minimal distortion.
Average Laser Power
460W
Central Wavelenght
900-990 nm
Duty Cycle
1-50%

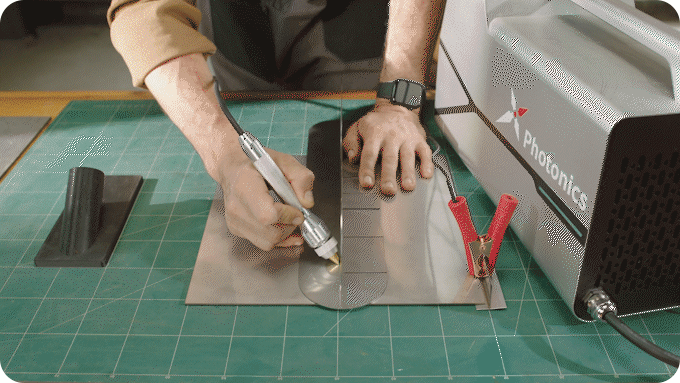

Power & Precision
The X1 and X1 Pro offers strong and efficient performance with average Laser Power X1 460W X1Pro 700W power. Built for reliability and speed, it’s designed to handle demanding welding tasks with ease. Whether for detailed projects or heavy-duty use, X1 and X1 Pro delivers consistent and powerful results, making your work faster and more efficient.
Safe Underwater Welding
X1 allow the welding head can be safely submerged, enabling high-quality work in aquatic environments or even during rainy weather. Whether you’re working in a damp, wet, or flooded area, you can perform high-quality welds without worrying about electrical hazards.
Semiconductor laser
The X1 uses a semiconductor laser with a larger fiber core diameter, producing a larger light spot and uniform energy and the X1 Pro features a fiber laser with a smaller core diameter, resulting in a smaller light spot with higher energy in the center and lower energy at the edges.
Supports a Wide Range of Materials
The XLaselab laser welding machine is highly compatible with various materials. It works with stainless steel, carbon steel, and aluminum etc, making it an ideal choice for a wide range of materials and applications.
Stainless Steel
Carbon Steel
Iron
Galvanized Sheet
Aluminium
Brass
Copper
Zinc Alloy
And More

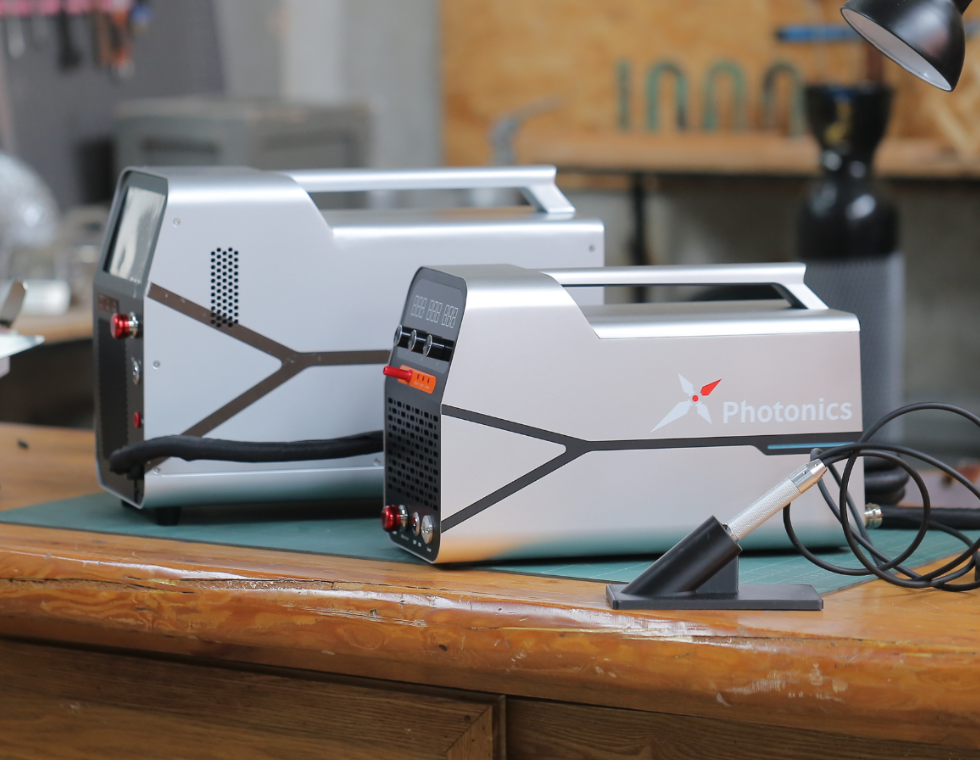

What Makes XLaserLab X1 and X1 Pro So Special?
The XLaserlab X1 and X1 Pro bring a revolutionary approach to welding with their desktop-grade micro laser welding technology.
Unlike traditional welding methods that rely on electric arc to generate high temperatures, Xlaserlab leverages a high-energy-density laser beam, enabling precise, clean welds even for delicate or intricate tasks
Through our strategic partnership with Coherent
A global leader in XPhotonics technology, XPhotonics has made significant progress in areas such as GaAs chip development, jointly leading innovations in high-power laser technology.
Coherent’s recognition reflects our shared efforts in industry innovation and value creation
Since 2017, XPhotonics has maintained a close collaboration with Coherent, and during their visit, Coherent’s Senior Product Director for High-Power Lasers, Dominik Jaeggi, praised, “XPhotonics’ rapid development over the past few years demonstrates its customer value in the field of industrial laser manufacturing, and I believe the strategic collaboration between XPhotonics and Coherent will achieve even greater success in the global semiconductor laser sector!”
Revolutionizing Welding with Versatility and Precision
Safe Underwater Welding
The XLaserlab provides an innovative solution for underwater welding. Unlike traditional welders, which pose risks when exposed to water, the X1 and X1 Pro allow the welding head to be submerged safely, enabling you to perform high-quality work in aquatic environments without worrying about electrical hazards.

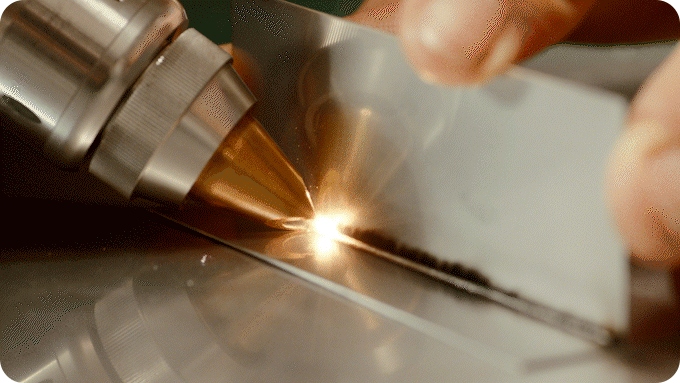

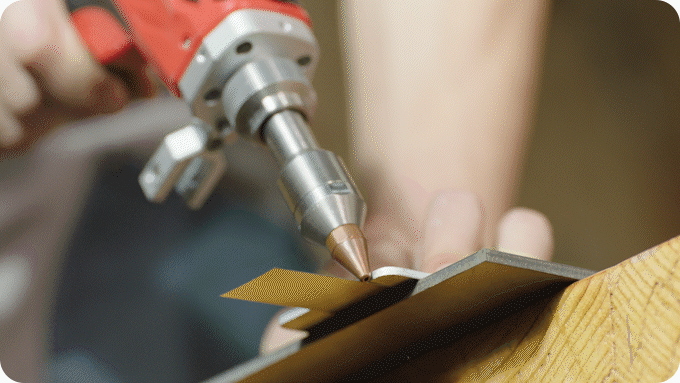

Efficient and Precise Laser Cutting
The X1 Pro not only offers exceptional welding capabilities but also boasts powerful cutting functionality. It can easily cut materials ranging from 0.5 to 3mm, providing the perfect solution for thicker and more complex tasks. Whether it’s welding or cutting, the X1 Pro delivers unmatched precision and efficiency, ensuring outstanding results for every project.
Advanced Laser Cleaning for Rust Removal
The XLaserlab laser cleaning and rust removal function makes quick work of cleaning and surface preparation. With a focused beam that targets and removes rust, it streamlines the process, enhancing both the durability and aesthetic of welded surfaces without the need for chemicals or abrasive methods.

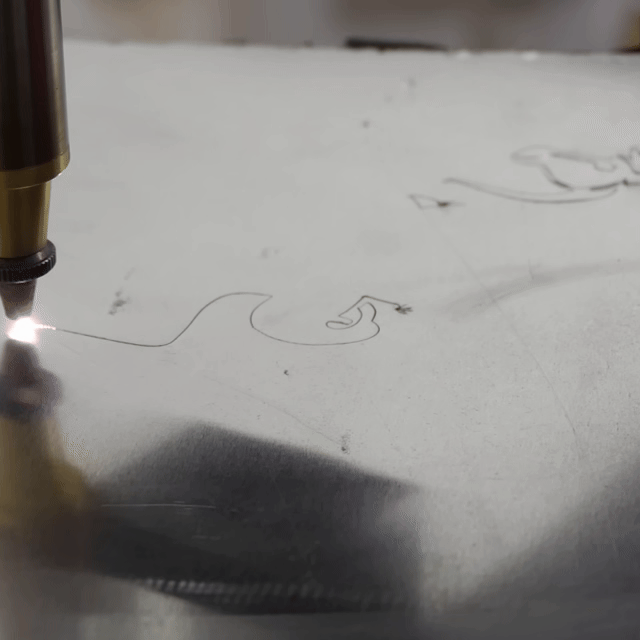

Modular Welding System
The X1 and X1 Pro feature a modular design that allows for seamless integration with additional tools and systems, providing even greater functionality. This flexibility makes them ideal for both personal and industrial applications, allowing professionals to customize their setup for complex and varied tasks. The modular components are designed to be easily attached

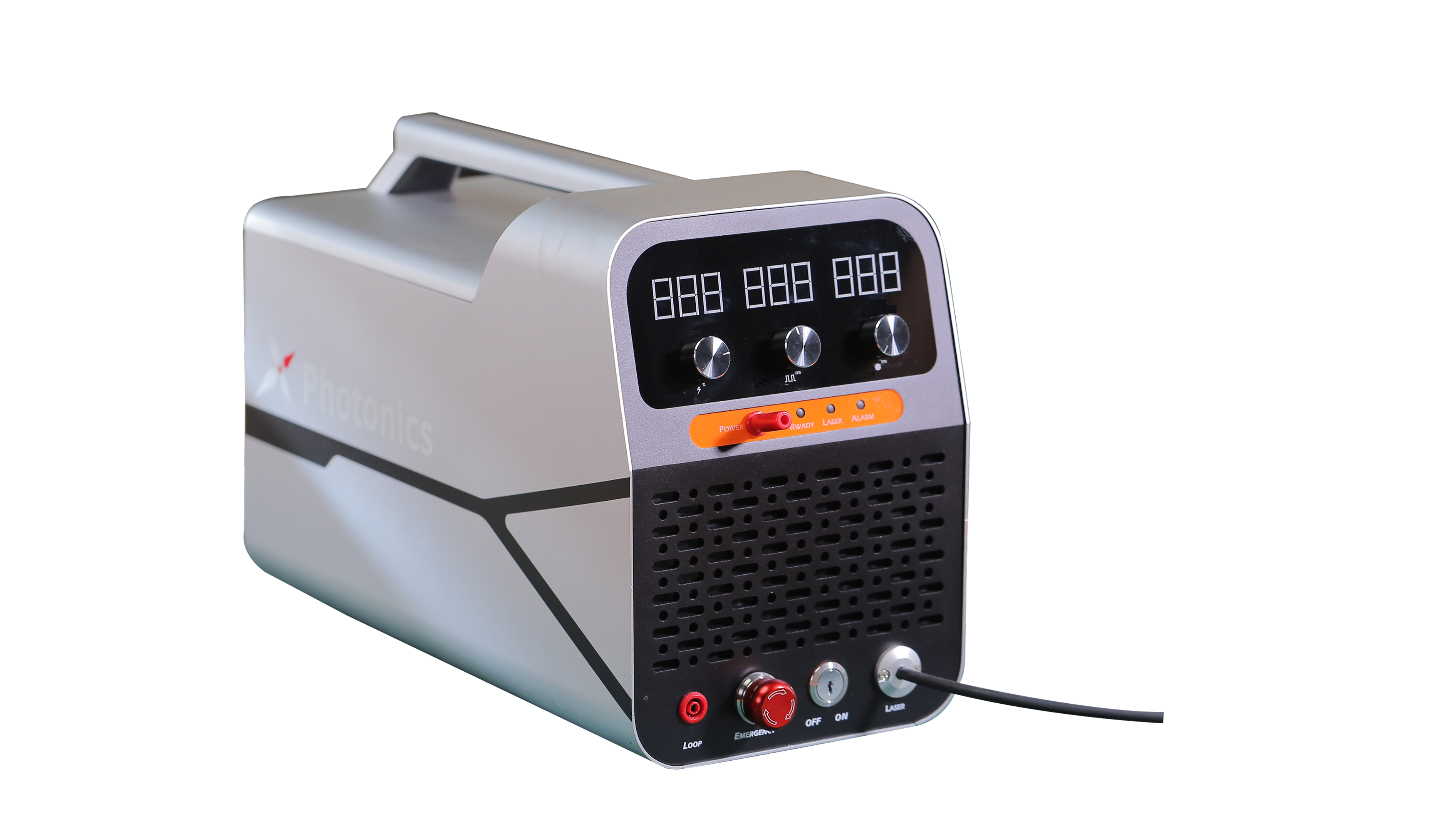

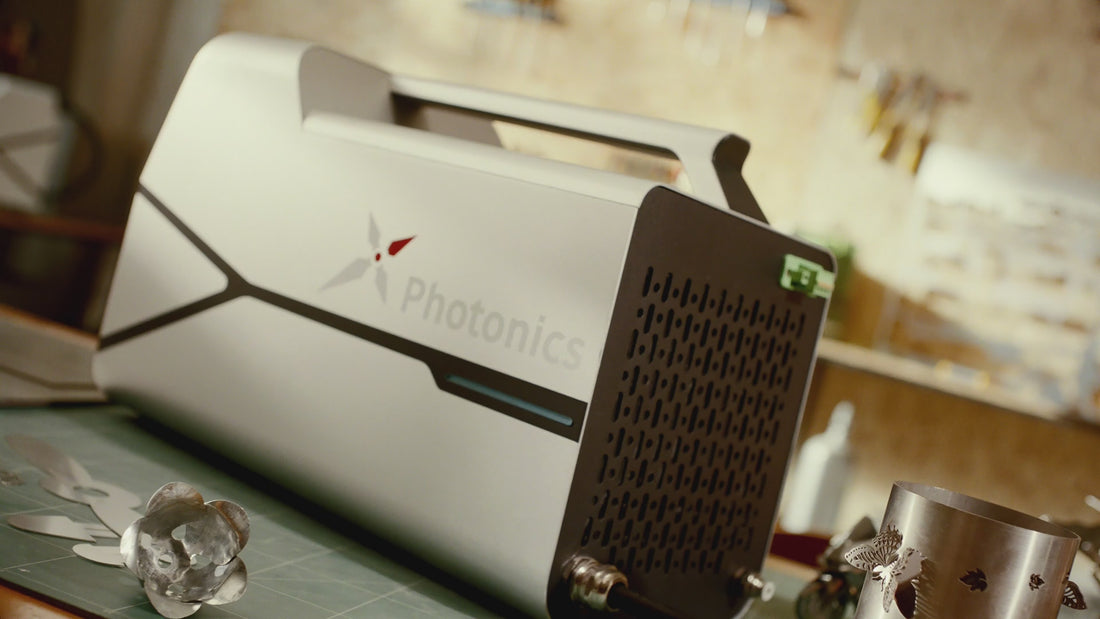

World’s Smallest and Lightest Mini Laser Welder
Weighing just 12kg (X1), these are the lightest laser welders available. Perfect for both indoor and outdoor use — portable, compact, and easy to carry.
Shop NowSpecifications
Product Model
X1 Pro
X1
Laser Light Source
Fiber Laser
Semiconductor Laser
Average Laser Power
700W
460W
Power Supply Voltage
100-240V AC, 50/60HZ
100-240V AC, 50/60HZ
Cooling System
Air-Cooled
Air-Cooled
Cable Lenght
5 m
2 m
Photoelectric Conversion rate
35%
50%
Power Consumption
2,800 W
2,500 W
Laser Wavelenght
1,080_10 nm
900-1,000 nm
Welding Thickness
0.5 - 3 mm
0.2 - 2 mm
Welding Speed
0-120 mm/s
0-100 mm/s
Output Mode
Continuous Wave / Pulsed
Pulsed
Weight
19 kg (41.89 lb)
12 kg (26.45 lb)
Dimensions
470 x 205 x 335 mm 18.5 x 8.07 x 13.19 in
395 x 189 x 265 mm 15.55 x 7.44 x 10.43 in
Working Temperature
-20 `C (-4`F) - 40C (104F)
-20 `C (-4`F) - 40C (104F)
Recommended Gases
Nitrogen / Argon
Nitrogen / Argon / Compressed Air
Recommended Welding Gas Flow
10-15 L/min
10-15 L/min
Recommended Cleaning Gas Flow
10-15 L/min
--
Recommended Cutting Gas Flow
15-20 L/min
--
Operating Gas Pressure
0.2-0.8 Mpa
0.2-0.4 Mpa
Gas Hose Outer Diameter
6 mm
4 mm
What’s in the Box?
X1 Pro Ultimate
X1 Pro Unit
Wire Feeder
X1 Pro Welding Gun
Laser Nozzles Accessories Box
Laser Welding Helmet
Laser Welding Glasses
X1 PRO Laser Gun Holder
X1PRO Protective Lens
Special Apron
X1 PRO Power Cable
Wire Feeder Power Signal Cable
Gas Fitting Adapter
Gas Hose
Wire Feed Tube
View All
X1 Pro Basic
X1 Pro Unit
Wire Feeder
X1 Pro Welding Gun
Laser Nozzles Accessories Box
Laser Welding Glasses
X1PRO Protective Lens*2
X1 PRO Power Cable
Wire Feeder Power Signal Cable
Wire Feed Tube
View All
X1 Ultimate
X1 Unit
X1 Welding Gun
X1 Laser Gun Holder
X1 Collimating Lens*7
Welding Glasses
X1 Copper Nozzie
Gas Fitting Adapter
Gas Hose
Welding Ground clamp
X1 Foot Pedal Switch
View All
X1 Basic
X1 Unit
X1 Welding Gun
X1 Collimating Lens
Welding Glasses
Welding Ground clamp
View All
FAQ
Don't see the answer to your question?
What can you do with the X1Pro?
The X1Pro performs welding, cutting, cleaning, derusting, and modular CNC integration, while enabling innovative custom uses.
What consumables does the X1Pro use？
Standard consumables for the X1 Pro include welding wire, protective lenses, and of course, contact copper nozzles
What is the maximum thickness the X1PRO can weld, and what materials can it weld?
The X1Pro can weld materials up to 3 mm thick. It is commonly used to weld stainless steel, aluminum, galvanized sheet, and carbon steel.
How much does the X1Pro weigh? How long is the armored cable?
The X1Pro weighs 21 kg, and the armored cable is typically around 5 meters long.
Does the X1Pro come with protective lenses included in the shipment?
We include some protective lenses with the shipment.
What type of laser welding machine is the X1, and what is it used for?
It uses a semiconductor laser source and is specifically designed for welding thin metal sheets.
What are the features of the X1 laser welding machine?
It is compact and lightweight, has a large spot size with uniform energy distribution, and is specifically designed for welding thin metal sheets.
How much does the X1 weigh, and how long is its armored cable?
The X1 weighs 12 kg, and its armored cable is 2 meters long.
What is the minimum thickness the X1 can weld, and what materials can it weld?
The X1 can weld materials as thin as 0.2 millimeters and is mainly used for welding stainless steel.
Does the X1 require welding wire?
The X1 does not require wire feeding
